FOUK-TJ

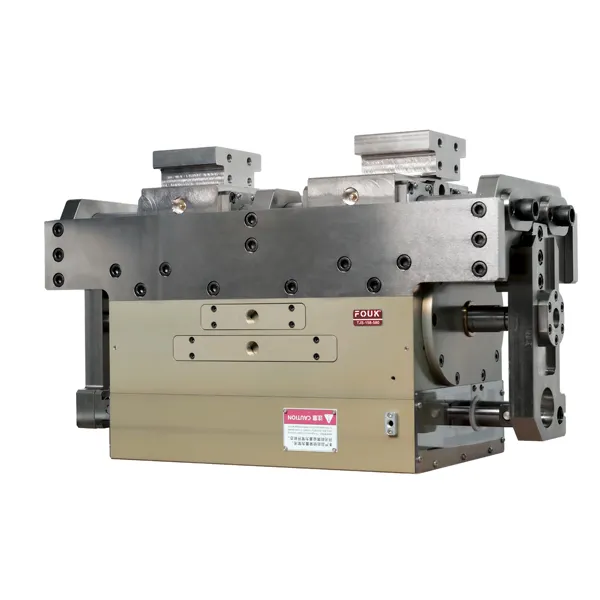

Developed independently by FOUK, this is a medium and heavy-duty pneumatic two - finger parallel gripper. It has a single-sideopening and closingstroke ranging from 100mm to 125mm, a clamping force exceeding 10,ooo Newtons, and can clamp workpieces weighing up to 8oo kilograms. Equipped with a mechanical self - locking function, itensures stability and safety.
Product Code Single Stroke/mm Open Gripping Force/N Close Gripping Force /N Workpiece Weight/kg Weight/kg
ZJ-63-100 100 283P 350P 15 12.9
TJL-70-250 125 23
TJM-115-530 100 69
TJS-150-580 105 126

Add to Inquiry List
