| Product attributes | Parameter Value | Unit |
| Product model | TJL-70-250 | |
| Product weight | 23 | kg |
| Single stroke | 125 | mm |
| Operating air pressure | 0.4~0.65 | MPa |
| Operating temperature | -5~60 | ℃ |
| Repeatability accuracy | ± 0.15 | mm |
| Maximum usage frequency | 8 | cpm |
| Maximum gripping force on both sides | 4000 | N |
| Specification of air connection port | Rp1/4 | |
| Lubrication mode | Grease of slide rail | |
| Air consumption per single working cycle | 11.5 | L |
| Self-locking form | None | |
| Maximum allowable gripping distance | 400 | mm |
| Maximum static load Fz that can be withstood vertically | 2000 | N |
| Bearing bending moment Mx during operation | 400 | N.m |
| Bearing bending moment My during operation | 600 | N.m |
| Bearing bending moment Mz during operation | 300 | N.m |
| Particle size of air dust during operation | <20 | μ m |
| Operating air humidity | <50 | % |

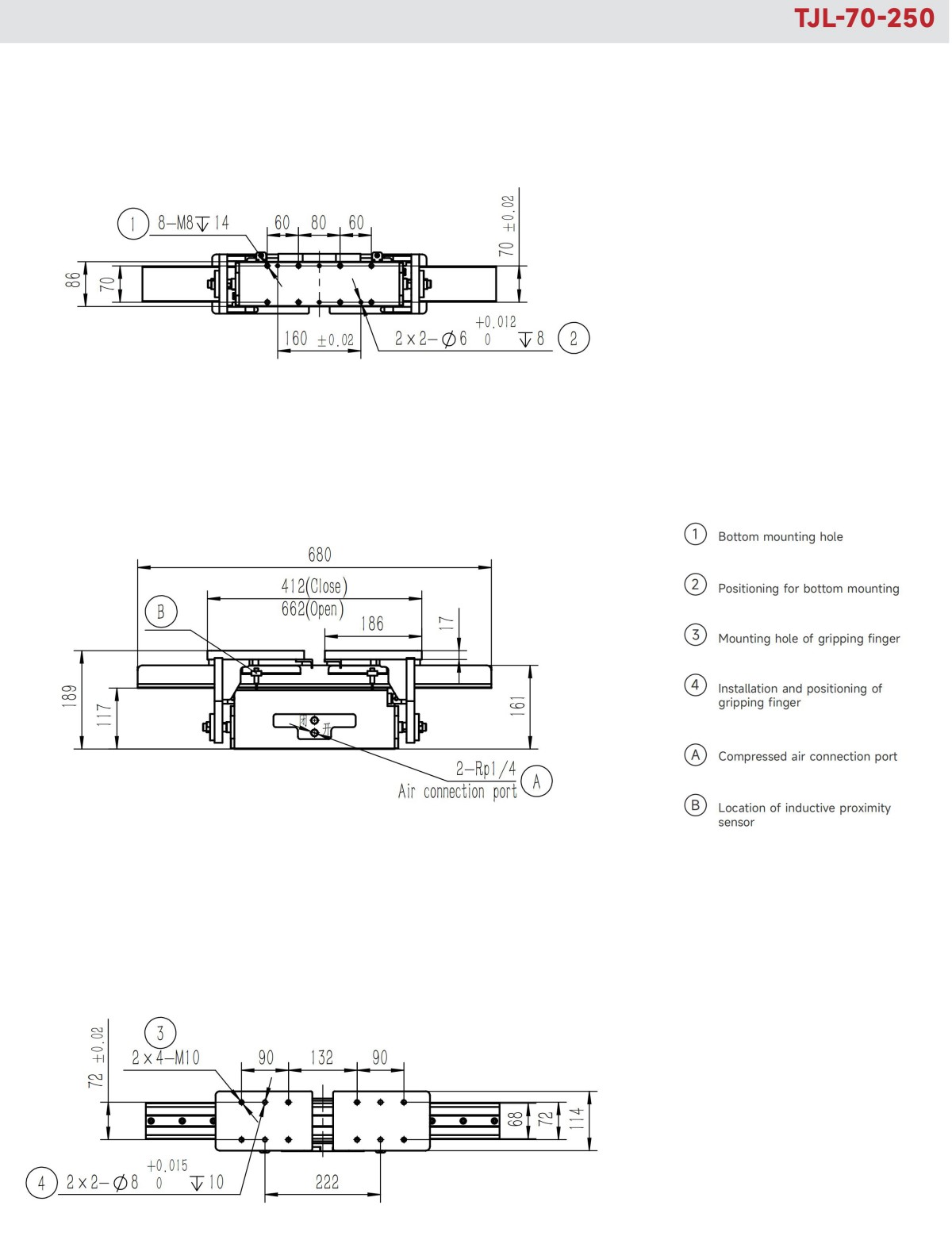

| Overall dimensions (length,width and height) of product | 680*115*190 | mm |

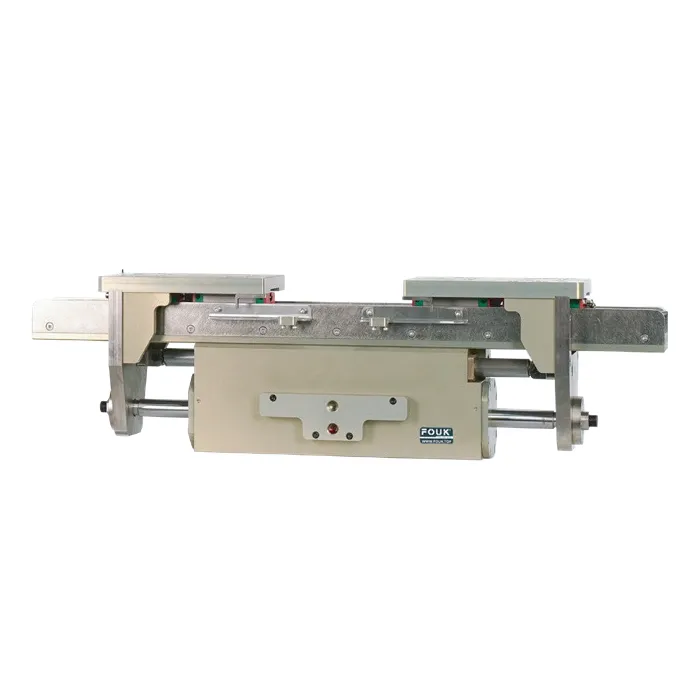

Developed independently by FOUK, this is a medium and heavy- duty pneumatic two - finger parallel gripper. It has a single - side opening and closing stroke ranging from 100mm to 125mm, a clamping force exceeding 10,000 Newtons, and can clamp workpieces weighing up to 800 kilograms . Equipped with a mechanical self - locking function, it ensures stability and safety.
