| Product attributes | Parameter Value | Unit |
| Product model | TJM-115-530 | |
| Product weight | 69 | kg |
| Single stroke | 100 | mm |
| Operating air pressure | 0.5~0.7 | MPa |
| Operating temperature | -5~60 | ℃ |
| Repeatability accuracy | ± 0.15 | mm |
| Maximum usage frequency | 8 | cpm |
| Maximum gripping force on both sides | 11000 | N |
| Specification of air connection port | Rc3/8 | |
| Lubrication mode | Special grease | |
| Air consumption per single working cycle | 23 | L |
| Self-locking form (optional) | Normally closed | |
| Maximum allowable gripping distance | 320 | mm |
| Maximum static load Fz that can be withstood vertically | 4500 | N |
| Bearing bending moment Mx during operation | 700 | N.m |
| Bearing bending moment My during operation | 1300 | N.m |
| Bearing bending moment Mz during operation | 500 | N.m |
| Particle size of air dust during operation | <15 | μm |
| Operating air humidity | <50 | % |

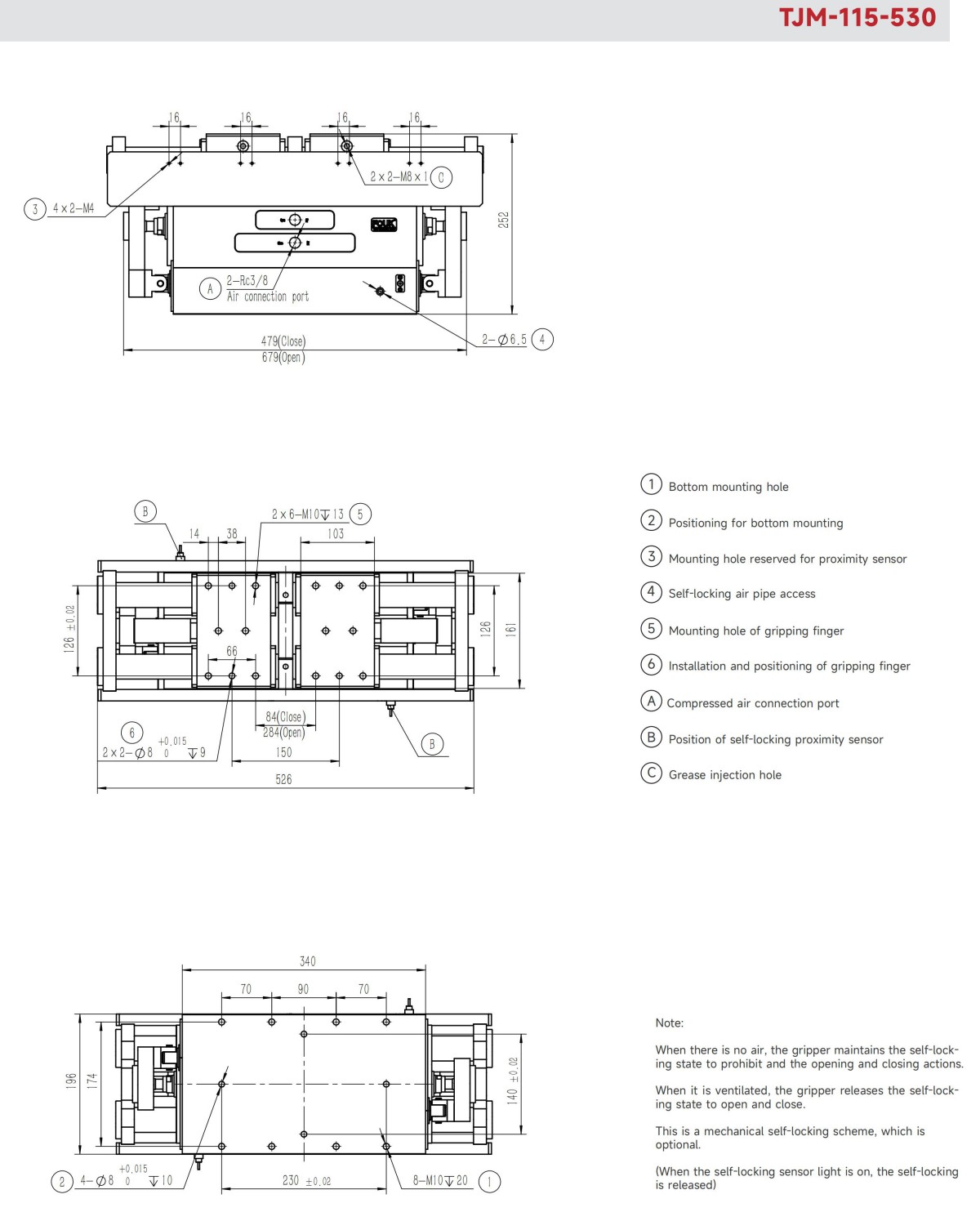

| Overall dimensions (length,width and height) of product | 526*196*252 | mm |

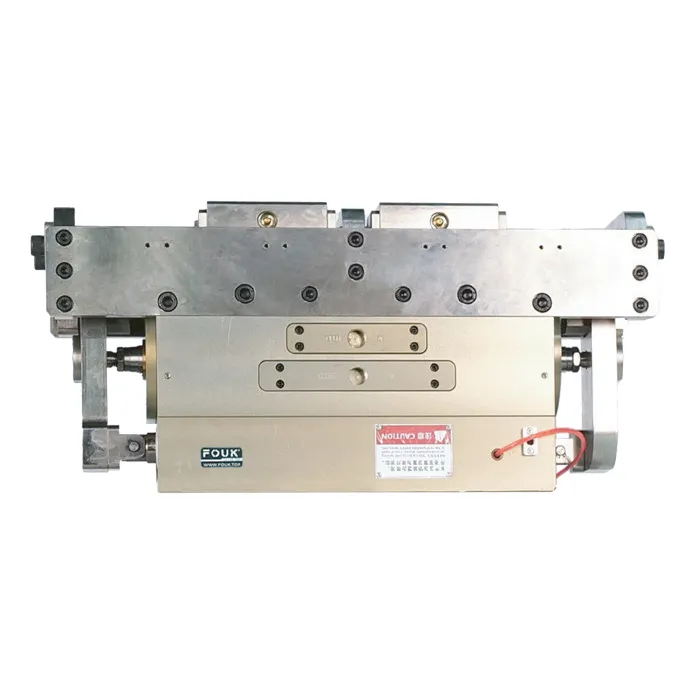

Developed independently by FOUK, this is a medium and heavy- duty pneumatic two - finger parallel gripper. It has a single - side opening and closing stroke ranging from 100mm to 125mm, a clamping force exceeding 10,000 Newtons, and can clamp workpieces weighing up to 800 kilograms. Equipped with a mechanical self - locking function, it ensures stability and safety.
