| specification | parameter | unit |

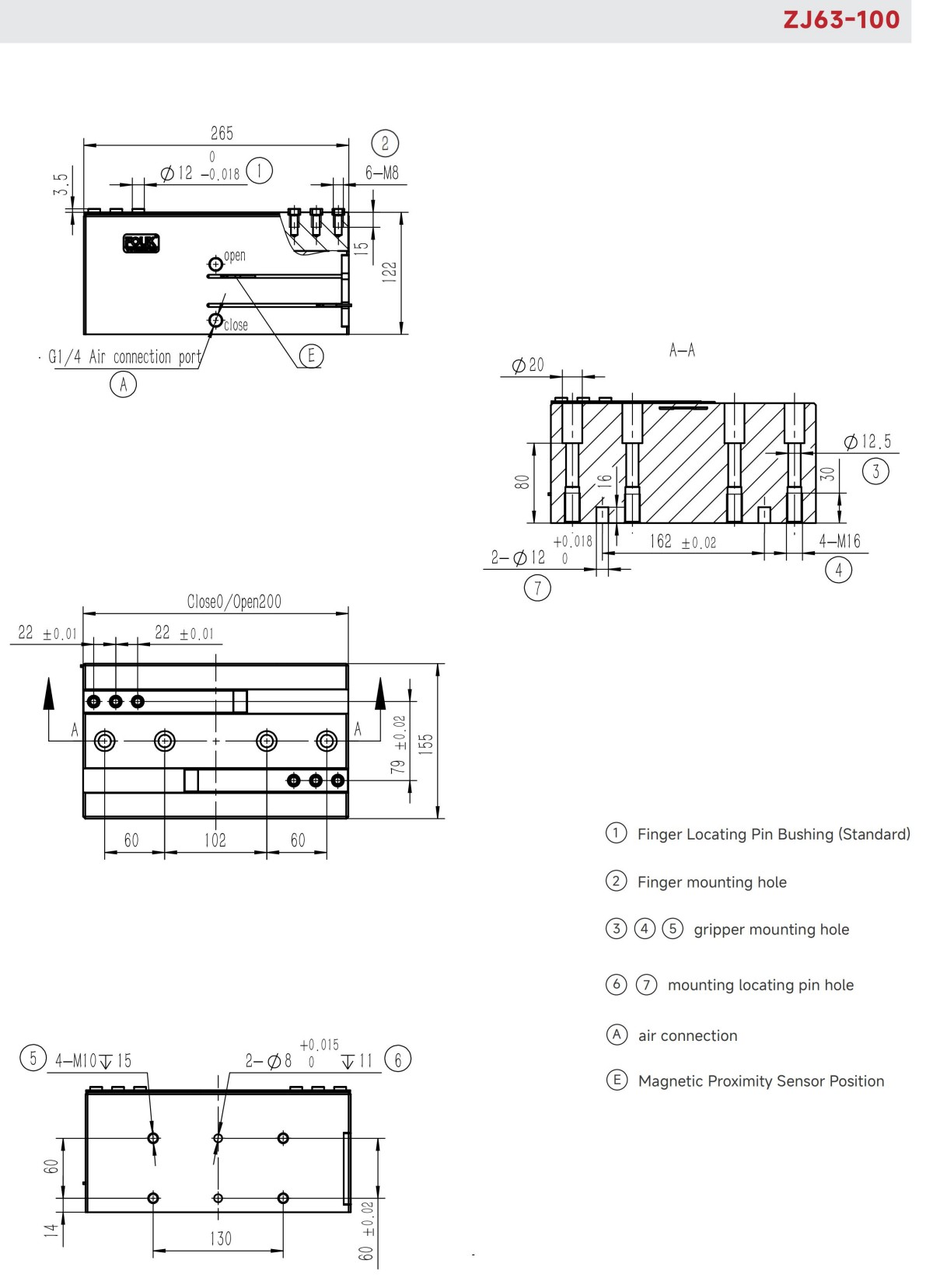

| model | ZJ-63-100 | |
| product weight | 12.9 | kg |
| stroke per jaw | 100 | mm |
| max gripping distance | 200 | mm |
| theoretical Max. Gripping Force:opening/closing | 283P/350P | N |
| workpiece weight | 15 | kg |
| opening/closing time | 1.0/1.0 | s |
| Air Consumptionper Opening-Closing Cycle | 0.8 | L |
| max finger length | 250 | mm |
| repeat accuracy | ± 0.05 | mm |
| pressure range | 3~8 | bar |
| air connection port feature | G1/4 | |
| IP class | 45 | |
| temperature range | 5~80 | ℃ |
| Max finger weight | 3.5 | kg |
| Magnetic Proximity Sensor | |
| D-M9NAL | magnetic, NPN, 3-core3m |
| D-M9PAL | magnetic, PNP, 3-core3m |
*Each equires two sensors to monitor two positions.Refer to the Sensor Appendix

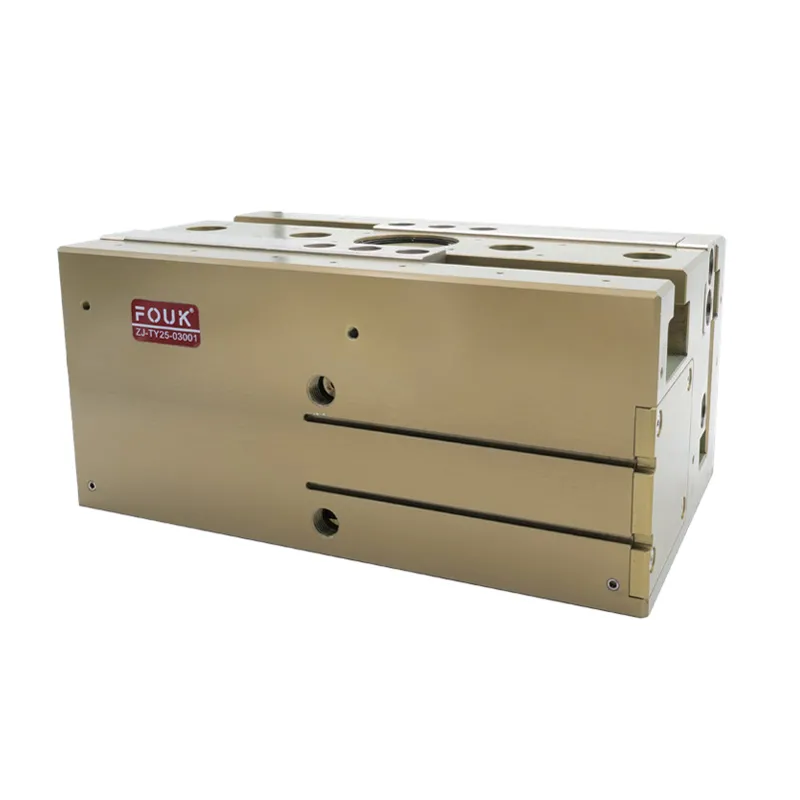

Developed independently by FOUK, this is a medium and heavy- duty pneumatic two - finger parallel gripper. It has a single - side opening and closing stroke ranging from 100mm to 125mm, a clamping force exceeding 10,000 Newtons, and can clamp workpieces weighing up to 800 kilograms . Equipped with a mechanical self - locking function, it ensures stability and safety.
