what is pneumatic grippers?

Era

Objective

Technical Features

Application

Limitations

1960s - 1970s

The emergence of pneumatic grippers as foundational end-effectors for early industrial robots.

Ultra-simplified structure utilizing fully rigid materials like aluminum alloy or stainless steel. The control logic was strictly binary (fully open/fully closed) with no intermediate position adjustment. It relied entirely on preset mechanical stops without sensor feedback.

Used in the very first industrial robot, Unimate (1961), for simple workpiece handling. They were only capable of performing highly repetitive tasks with regular-shaped objects, such as moving automotive parts.

Lacked adaptability, made it impossible to handle fragile or irregularly shaped objects, and posed a relatively high risk of workplace injuries.

1980s - 1990s

With the introduction of computer control technology, pneumatic grippers evolved toward specialization and modularity to meet diverse industry needs.

Refined structures led to the development of various styles like parallel grippers (dual-piston synchronous drive to ensure centering), angular/swing grippers (Y-shaped with constant torque), and three-point grippers to adapt to different workpiece geometries. Precision transmission mechanisms like ball guides and crank-connecting rods were introduced, boosting repeatability to the $\pm0.02\text{ mm}$ level.

Expanded from automotive manufacturing into electronics, semiconductors, food, and pharmaceuticals, marking the beginning of early self-adaptive capabilities.

Poor gripping rigidity and unstable force control. The low precision in position and speed control easily resulted in damage to fragile workpieces.

2000s - 2010s

The adoption of microelectronics, communication technologies, and advanced materials upgraded pneumatic grippers from mere execution components to "smart nodes."

Integrated sensing and control. Built with lightweight anodized aluminum, engineering plastics, and silicone-coated composites to reduce motion inertia, bringing response times down to milliseconds. Equipped with built-in pressure sensors, magnetic switches, and tactile films to achieve closed-loop force control and real-time status monitoring. They supported industrial bus communications like CANopen and EtherCAT to connect with MES systems, enabling multi-level pressure adjustment and dynamic force control. This allowed the stable handling of sensitive objects like fragile glass and micro-electronic components without leaving indentation marks.

This period marked deep penetration from general automation into industry-specific applications, centering on four major fields: automotive manufacturing, 3C electronics/semiconductors, packaged food/pharmaceuticals, and general industry/logistics.

Generally lacked standard built-in smart sensors across the board, making it difficult to give real-time feedback on gripping force, finger positioning, or grip success metrics for integration into fully smart monitoring architectures.

2020s - Present

Driven by the boom in collaborative robots (Cobots), pneumatic grippers have evolved toward safety, flexibility, high precision, and plug-and-play simplicity.

Upgraded three-tooth guide rail designs effectively eliminate gripper deformation and jamming. High-precision performance yields repeatability between $\pm0.02\text{ mm}$ and $\pm0.05\text{ mm}$.

Serving as a mainstream mainstay for industrial automation end-effectors.

Ancillary support systems remain complex and noisy compared to all-electric setups.

Feature

pneumatic grippers

electric grippers

Drive & Control

Driven by air cylinders pushing the mechanism.

Controlled via servo motors and encoder closed-loop systems.

Precision & Flexibility

Fixed stroke lengths. Switching production lines requires changing custom tooling or adjusting mechanical limits manually.

Supports multi-segment programming adjustments to adapt to different workpiece sizes without mechanical intervention.

Cost Structure

Procurement cost is typically 1/3 lower than electric alternatives.

Higher initial upfront investment required.

Environmental Adaptability

Simple structure that naturally resists dust, oil stains, and moisture. Features excellent explosion-proof properties, making it ideal for harsh operating conditions.

Contains sensitive electronic components requiring high protection ratings (e.g., IP67). Maintenance in extreme environments can be challenging.

Response & Safety

Extremely fast response times (open/close cycles as low as 0.05 seconds), making them ideal for high-speed sorting.

Features power-off self-locking or real-time data feedback to maintain grip status during sudden power outages, preventing workpieces from dropping.

Application Scenarios

High-speed handling, heavy payloads, and harsh environments (dusty/wet).

Precision assembly, fragile item handling, high-mix/low-volume production with frequent changeovers, data traceability, or cleanroom environments.

Type

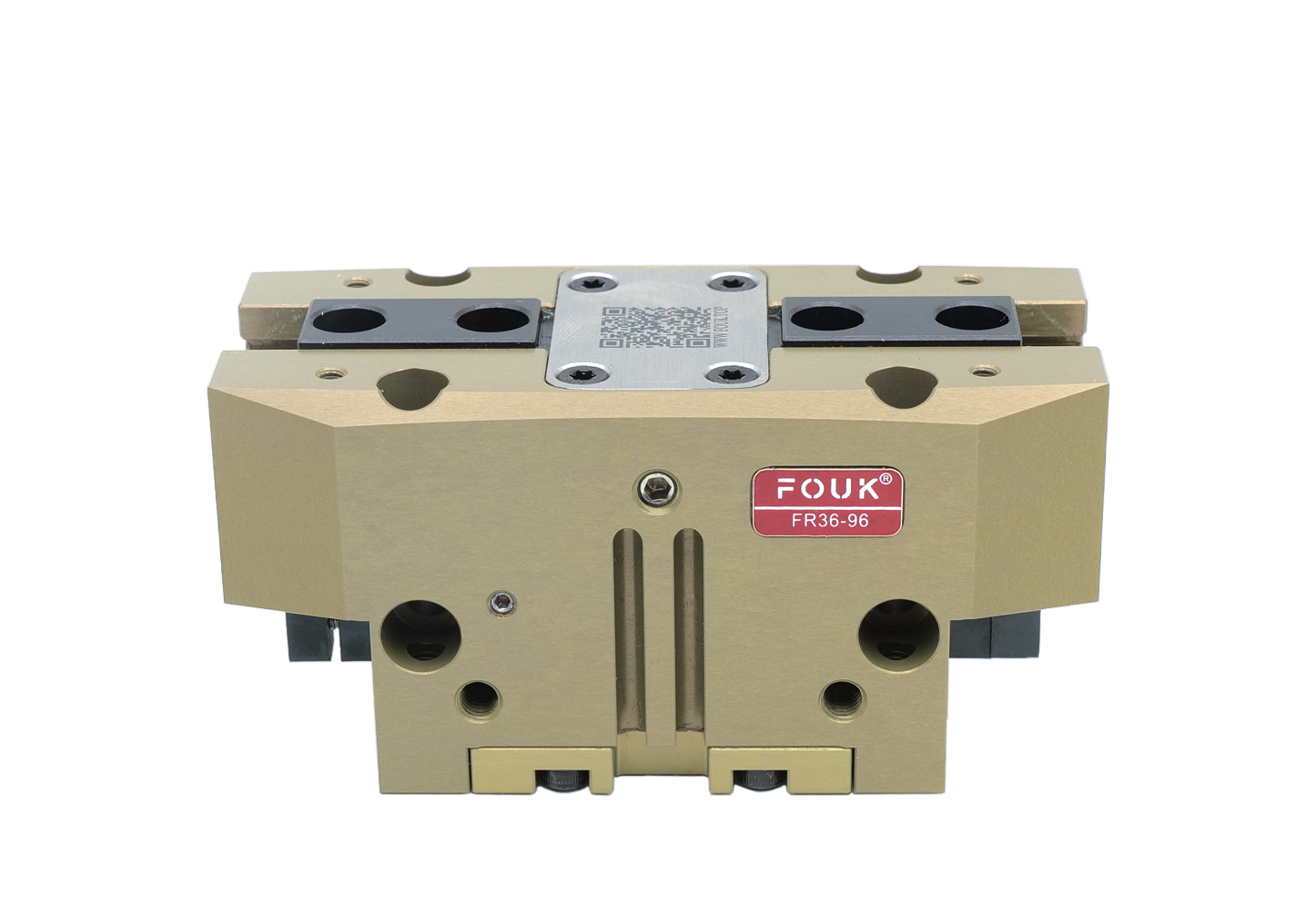

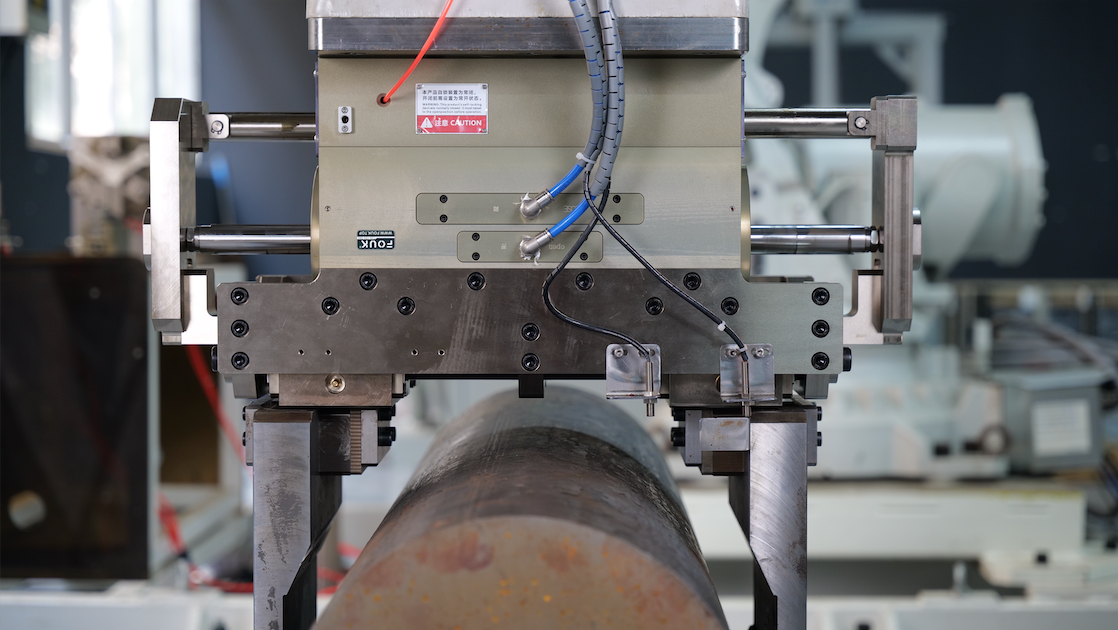

2 finger pneumatic gripper

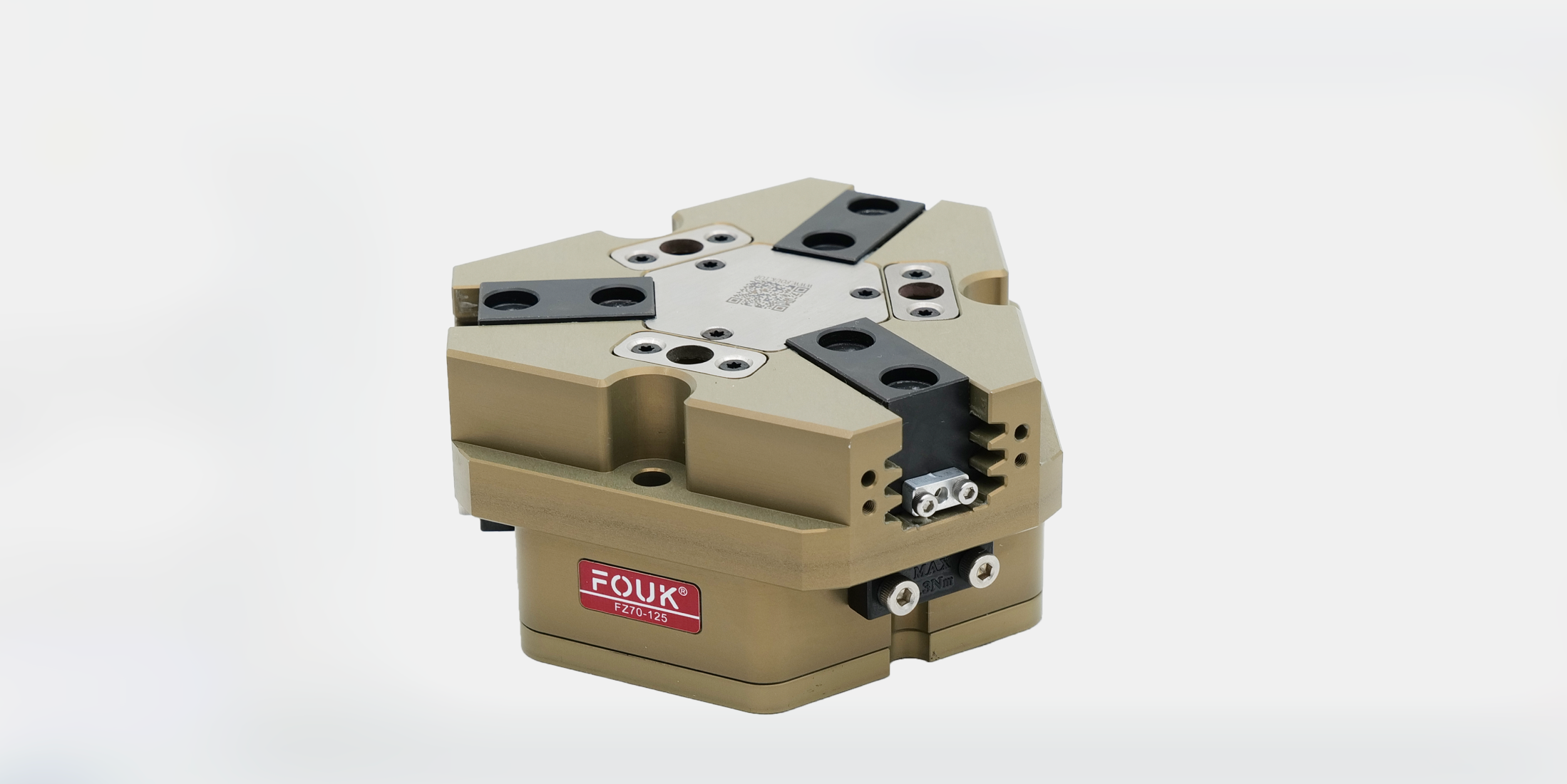

3 finger pneumatic gripper

4 finger pneumatic gripper

Features

Simple structure, fastest response time, and most economical cost. Available in parallel and angular movements.

Utilizes synchronous linkages or gear drives, featuring a natural self-centering ability with repeatability up to $\pm0.02\text{ mm}$.

Typically features two sets of independent drives or a specialized linkage structure, providing four-point support.

Advantage

Small footprint ideal for confined workspaces. Concentrated gripping force makes it great for heavy-duty material handling.

Three-point force distribution applies uniform pressure and automatically compensates for workpiece size tolerances. Grip stability is significantly superior to two-finger models.

Delivers the best wrapping coverage around asymmetric, irregularly shaped, or thin-walled easily deformed parts. Disperses force evenly to offer the highest protection against accidental drops.

Disadvantage

Lacks built-in self-centering functionality (except for angular styles), making it prone to shifting when picking up cylinders or irregular parts without external fixtures.

The overall body diameter is typically wider, making it less adaptable to tight spaces compared to two-finger grippers.

Complex structure yields higher maintenance costs and difficult synchronization control. It has a lower degree of industrial standardization than two- or three-finger models.

Use Case

Regular rectangular workpieces, simple loading/unloading, and handling rough heavy-duty machined blanks.

Cylindrical shafts, spheres, square housings, and precision components requiring high-accuracy assembly.

Irregular castings, fragile glass/ceramics, large thin-walled containers, and specialized high-security pick-and-place tasks.
