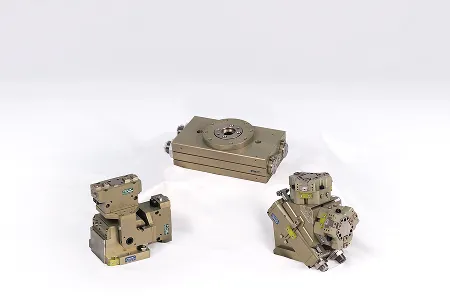

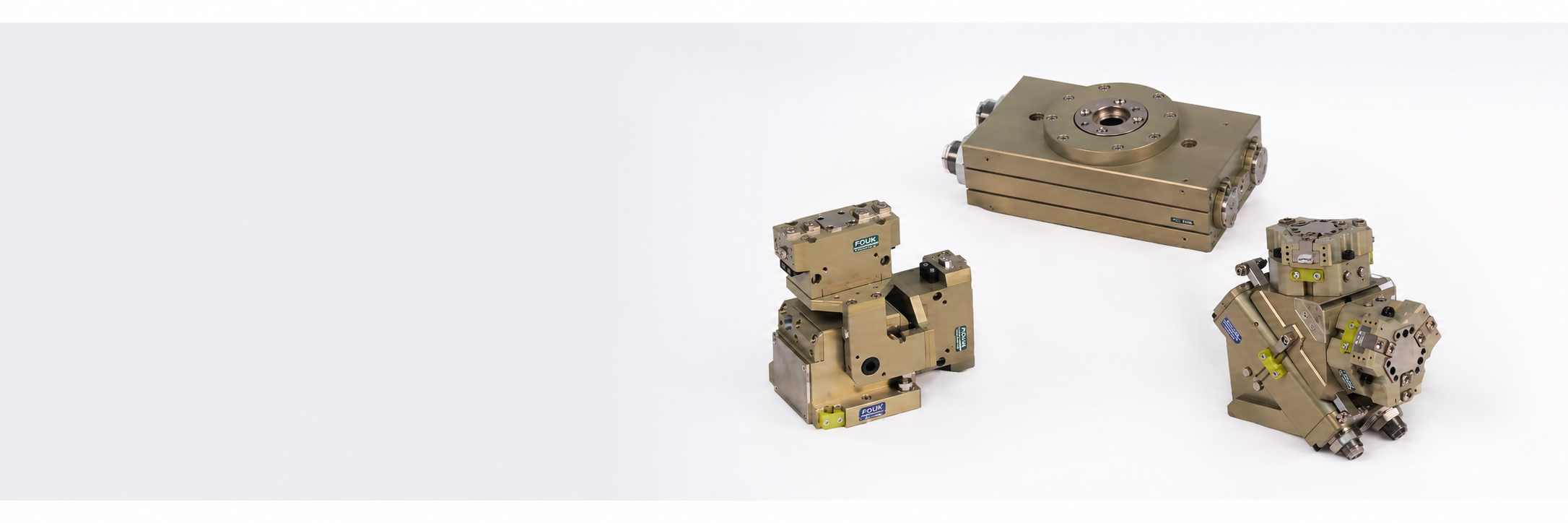

Pneumatic Rotary Actuator

rotary unit

In the rotating unit series, TP product is a universal rotating device driven by the compressed air, whichcan realizerotation for 90%180°

Product Code	Effective torque	Weight/kg	Specification of buffer unit
TP12	0.13xP	0.65	M10 Hydraulic Buffer
TP25	0.98xP	1.55	M14 Hydraulic Buffer
TP32	1.93xP	2.75	M20 Hydraulic Buffer
TP40	4.02xP	5.85	M25 Hydraulic Buffer
TP50	7.07xP	9.50	M33 Hydraulic Buffer
TP63	15.6xP	20.15	M45 Hydraulic Buffer

FOUK-TG

truss system disc-type gripping unit

The truss system disc-type gripping unit adopts a pneumatic gear rack structure to realize swing for 180°, and becomes an important module for loading and blanking of the machine tool truss in coordination with the grippers.

Product Code	Effective torque	Single-Side Finger Cylinder Load/kg	Weight/kg	Specification of buffer unit
TG12	0.13xP	0.8	1.4	M10 Hydraulic Buffer
TG25	0.96xP	1.7	2.4	M14 Hydraulic Buffer
TG32	2.1xP	3	4.8	M20 Hydraulic Buffer
TG40	3.7xP	6.5	9.9	M20 Hydraulic Buffer
TG50	7.07xP	9	15.2	M33 Hydraulic Buffer

FOUK-TE

truss system shaft-type gripping unit

The pneumatic gear and rack structure is adopted to realize swing for 90°and Ibecomes an important module for loading and blanking of the machine tool truss in coordination with the grippers. By adjusting the structure and the configuration, it adaptsto different application scenarios.

Product Code	Effective torque	Single-Side Finger Cylinder Load/kg	Weight/kg	Specification of buffer unit
TE40	2xP	1.5	2.1
TE50	3.8xP	3.5	4.2
