The Guide of Three Finger Pneumatic Grippers

A practical guide to working principles, advantages, industrial applications, selection criteria, pricing, mechanisms, maintenance, and automation integration.A three finger pneumatic gripper is a compact robot end effector designed to grip and center workpieces with three synchronized fingers. Compared with a conventional two-finger parallel gripper, the three-contact-point layout can provide more stable support for round, cylindrical, and certain irregular parts. For machine tending and other repetitive industrial tasks, a pneumatic three finger gripper can combine fast actuation, simple control, and a strong cost-to-performance ratio.This guide explains how a three finger pneumatic gripper works, where an industrial three finger gripper is most useful, how to choose the right model, and what to consider when integrating a pneumatic gripper for automation into a robotic cell.

Working Principle of Three Finger Pneumatic Gripper

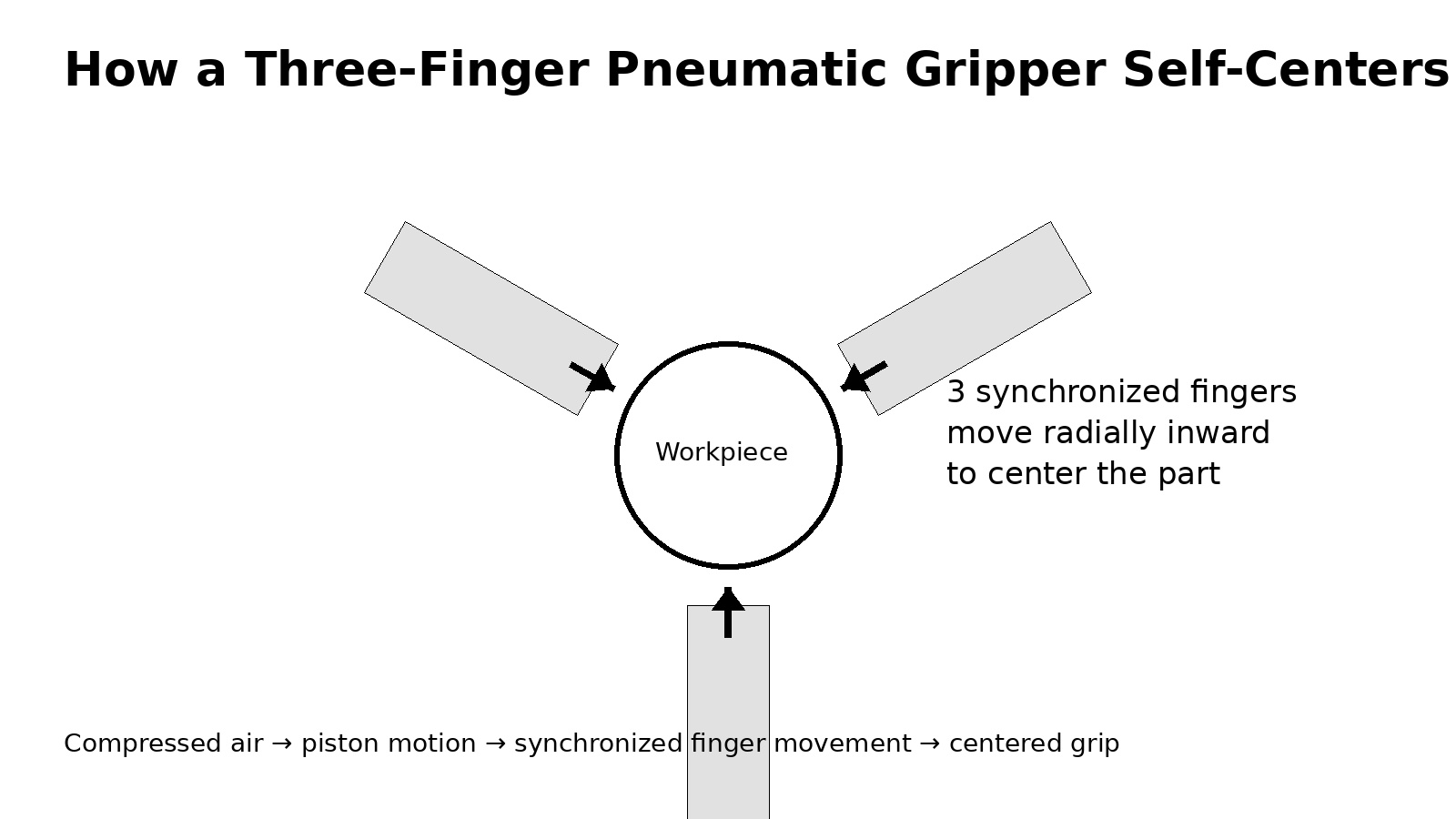

A three finger pneumatic gripper typically consists of a pneumatic cylinder, piston, three gripping fingers, a synchronization mechanism such as links or a rack-and-pinion system, seals, and an air connection. Compressed air enters the cylinder and moves the piston. The piston movement is then converted into synchronized opening or closing of the three fingers. Because the fingers are arranged around the center of the gripper, the workpiece can be naturally centered during gripping.

1. Pneumatic actuation: An external air supply enters the cylinder through the air port. The compressed air drives the piston and creates the force required to open or close the fingers.

2. Synchronized movement: The three fingers move together through the internal linkage or gear mechanism. This synchronized motion helps the gripper automatically center workpieces of different diameters.

3. Grip force and speed control: Air pressure and airflow can be adjusted to control gripping force and opening/closing speed. This allows the same pneumatic gripper for automation to be configured for different workpiece sizes, materials, and cycle requirements.

4. Repeatability and durability: Internal guides and rigid guiding components are designed to maintain consistent finger movement over repeated cycles. The supplied product information states repeat positioning accuracy in the ±0.01–0.03 mm range after millions of opening and closing cycles.

Advantages of Three Finger Pneumatic Gripper

The main attraction of a three finger pneumatic gripper is the combination of simple pneumatic actuation, stable gripping, and practical operating cost. Unlike an electrically driven gripper, a pneumatic model does not require a dedicated servo motor or complex motion controller for basic gripping. Once connected to a suitable compressed-air system, it can perform fast and repeatable open-close cycles.

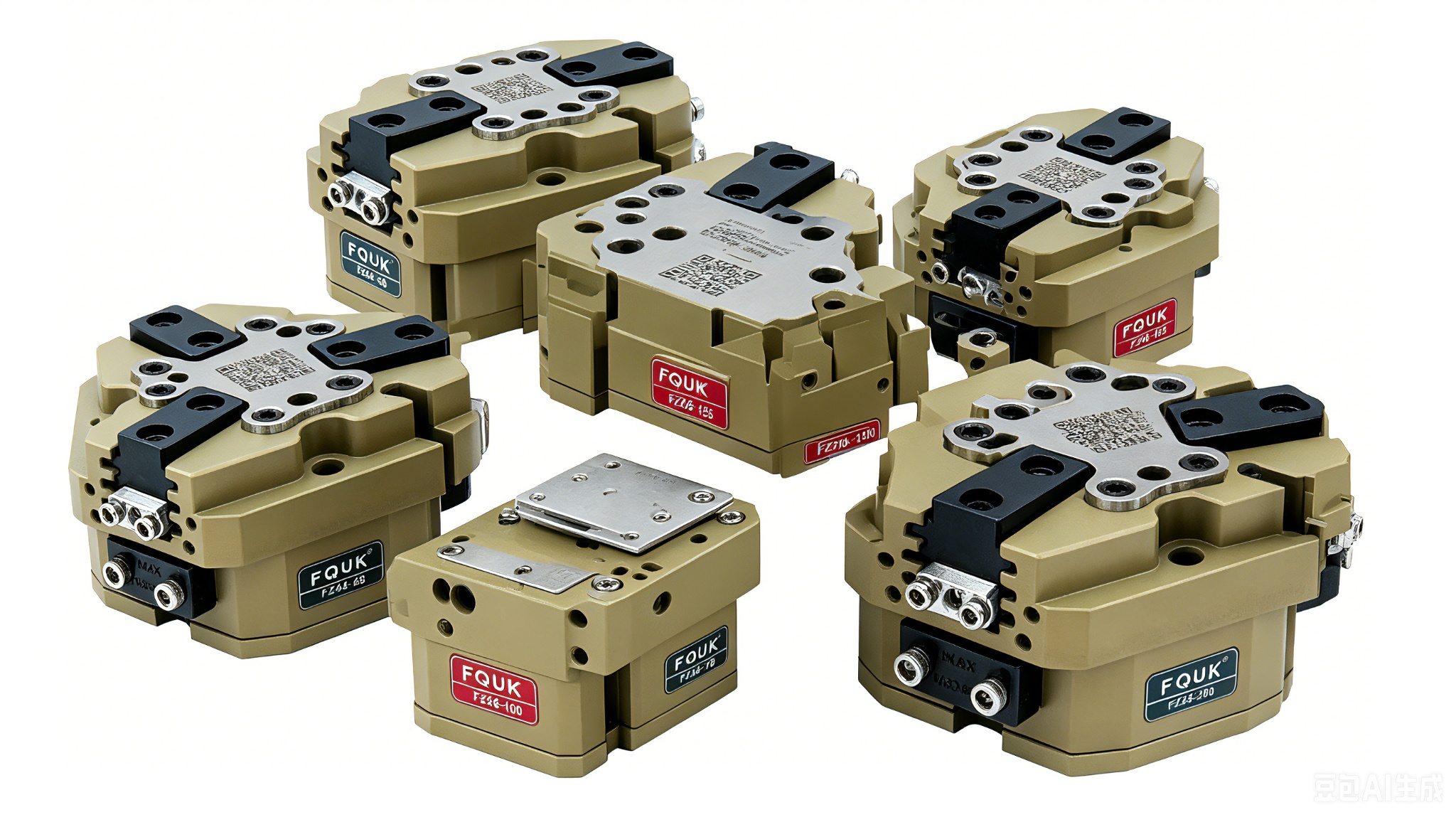

The FOUK three-finger range described in the supplied product information uses an integrated aluminum-alloy body to balance rigidity and weight. Its compact structure is intended for high-cycle industrial use, while the simple pneumatic architecture can make routine maintenance straightforward. This makes the gripper particularly suitable for manufacturers that need reliable automation without adding unnecessary system complexity.

Another important advantage is adaptability. By changing the finger tips or contact geometry, the same gripper body can be configured for different workpiece shapes and materials, including metal, plastic, and other industrial components. This can reduce tooling changes and make one robotic gripper useful across multiple production tasks.

In practical manufacturing, three-finger gripping is especially useful when a workpiece needs to be centered as well as held. Three contact points distribute the gripping action around the part and can reduce unwanted movement during robot acceleration, deceleration, loading, and unloading.

Industrial Applications of Three Finger Pneumatic Gripper

Three finger pneumatic grippers are widely suited to repetitive handling tasks where stable gripping and automatic centering matter. Typical applications include CNC machine tending, robot loading and unloading, part sorting, assembly positioning, and transfer between machining or inspection stations.

CNC machine tending is one of the most practical applications. A three finger pneumatic gripper can pick a cylindrical or irregular workpiece, move it between a robot and a machine tool, and release it after machining. For turning and other processes involving round parts, the self-centering action can help keep the part consistently positioned.

Automotive and industrial components are another strong application area. Parts such as shafts, bearing rings, gears, valve bodies, and other rotational components can benefit from three-point contact. In assembly operations, the same self-centering gripper can help position a part before insertion or downstream processing.

Three-finger gripping can also be useful in electronics and general assembly when the workpiece requires controlled contact. The finger material and geometry should be selected according to the surface and required gripping force so that the part is not scratched, deformed, or displaced.

For mixed-model production, the flexibility of a three finger pneumatic gripper can reduce changeover effort. Depending on the application, operators may adjust the stroke or replace finger tips instead of building a completely new dedicated fixture. This is particularly valuable when a robot must handle several part sizes on the same production line.

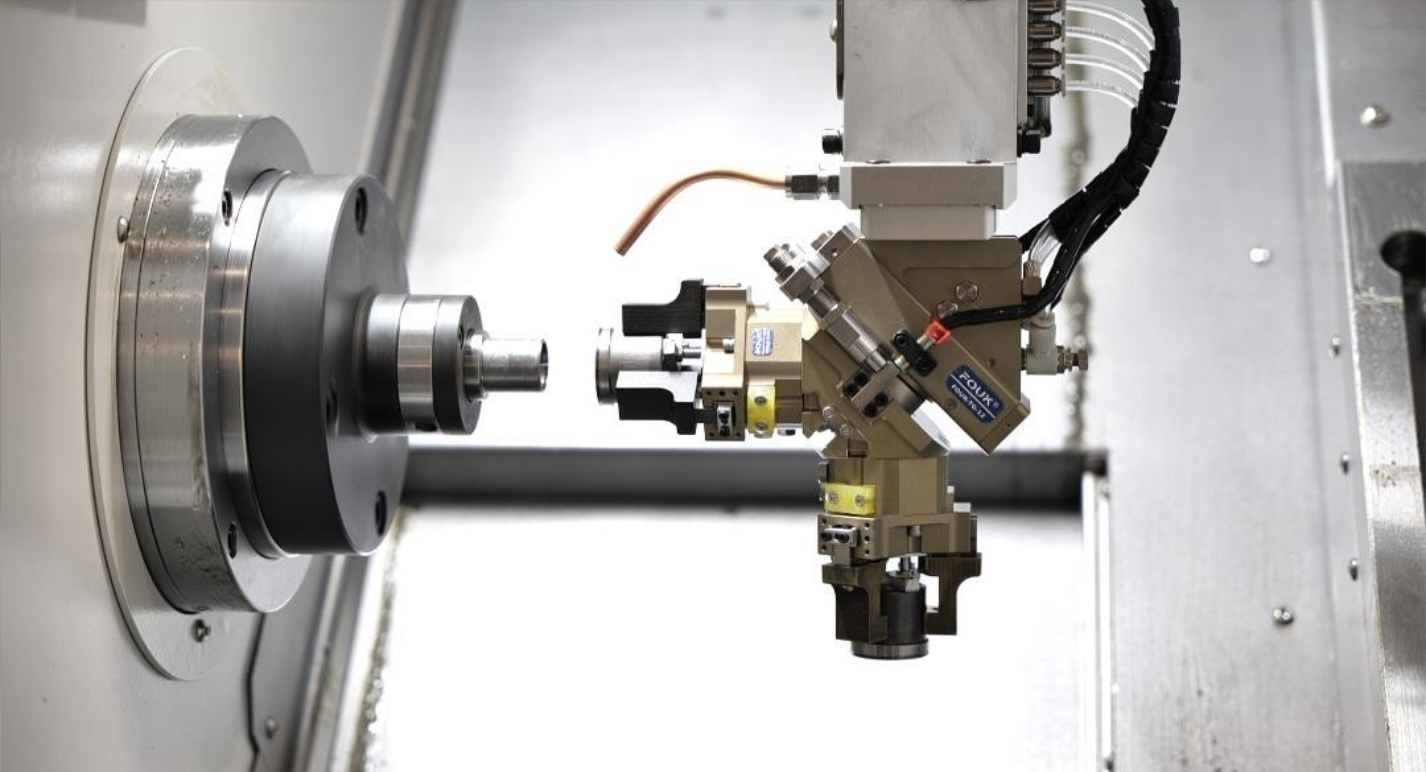

(Figure 3. Example of a three-finger gripper used in a machine-tool handling system)

How Three Finger Pneumatic Grippers Improve Precision Handling in Automation Systems

In modern automation, a gripper needs to do more than simply hold a part. It must grip consistently, release reliably, and maintain a predictable position throughout repeated robot cycles. This becomes especially important when handling cylindrical, irregular, or easily damaged workpieces.

A conventional two-finger gripper can work very well for many applications, but its two contact points may provide less geometric support for certain round or irregular parts. A three finger pneumatic gripper adds a third contact point and places the gripping forces around the workpiece, which can improve centering and resistance to unwanted movement.

The FOUK three-finger design described in the supplied material uses a three-guide structure. The three fingers move radially and synchronously under pneumatic actuation, allowing the gripper to center the workpiece without relying on a separate vision-guidance step for basic centering. The supplied specifications state repeat positioning accuracy of up to ±0.02 mm for the described design.

The supplied product information also describes an integrated high-strength aluminum-alloy body, precision roller guides, and low-friction sealing components. For high-speed applications, the stated opening/closing time is up to 20 ms. These specifications are intended to support short cycle times in robot handling and machine-tending applications.

Environmental protection is another consideration in machine shops. The supplied information states that selected FOUK sealing components use oil-resistant, temperature-resistant, aging-resistant fluororubber and that the standard protection rating reaches IP67. Internal moving components are also described as receiving surface-treatment and lubrication optimization for long-term operation. The supplied material states that after one million continuous cycles, gripping-force loss can be less than 3%.

A complete automation gripping solution may also combine different end-of-arm technologies. For operations that require force feedback or fine insertion, the supplied FOUK solution concept includes the option of switching to a high-response electric gripper. A floating module can provide X/Y/Z compliance to compensate for small fixture offsets or accumulated workpiece tolerances. In this way, pneumatic gripping can handle fast repetitive transfer while other end-effector modules address more specialized assembly tasks.

For robot integration, the supplied material describes compatibility with major industrial robot platforms, including ABB, KUKA, FANUC, and Estun. In practice, integration should always be checked against the robot payload, mounting interface, available air supply, required stroke, workpiece mass, and the actual tooling geometry.

Choosing the Right Three Finger Pneumatic Gripper for Robotic Automation

Choosing a three finger pneumatic gripper should start with the workpiece rather than the gripper catalog. The most important factors are workpiece diameter and geometry, required gripping force, finger stroke, robot payload, cycle time, mounting interface, environmental conditions, and the type of contact surface required.

A self-centering gripper is particularly useful for shafts, tubes, cylindrical parts, bearing rings, and other round components. It can also handle selected irregular workpieces when the finger tips are designed to match the part geometry. For heavier or more demanding parts, the anti-rotation requirement and the distance between the gripping point and the robot flange should be considered carefully.

For the FOUK model information supplied with this article, the three-finger pneumatic range is positioned as a heavy-duty, high-precision option for robotic automation. The stated gripping-force range is 38,000–40,000 N, with a finger stroke range of 6–45 mm. The product information also describes multiple mounting interfaces and push-rod modules intended to support reliable release and reduce the risk of parts sticking in the gripper.

Three Finger Pneumatic Price: fouk vs schunk

Prices are indicative and can vary by supplier, configuration, quantity, shipping, and market. Use it as a starting point for cost comparison rather than a formal quotation.

The comparison suggests that FOUK can offer a lower initial purchase price across the listed sizes. For a purchasing decision, however, total cost of ownership should also include finger tooling, installation, air consumption, maintenance, spare parts, and expected service life.

Three Finger Pneumatic Gripper vs Four Finger Gripper: Which One Is Better for Your Application?

The choice between three and four fingers depends on the geometry, mass, and stability requirements of the workpiece. A three finger pneumatic gripper is often the simpler and more economical choice for standard round parts and many general-purpose handling tasks. A four-finger design can provide additional contact and anti-rotation capability when a more complex or heavier part requires it.

For most standard cylindrical components, three fingers provide a strong balance between centering, stability, weight, cost, and maintenance. Four fingers become more attractive when the workpiece is unusually heavy, complex, or sensitive to rotation. The correct choice should be validated with an actual gripping test under the intended robot speed and acceleration.
