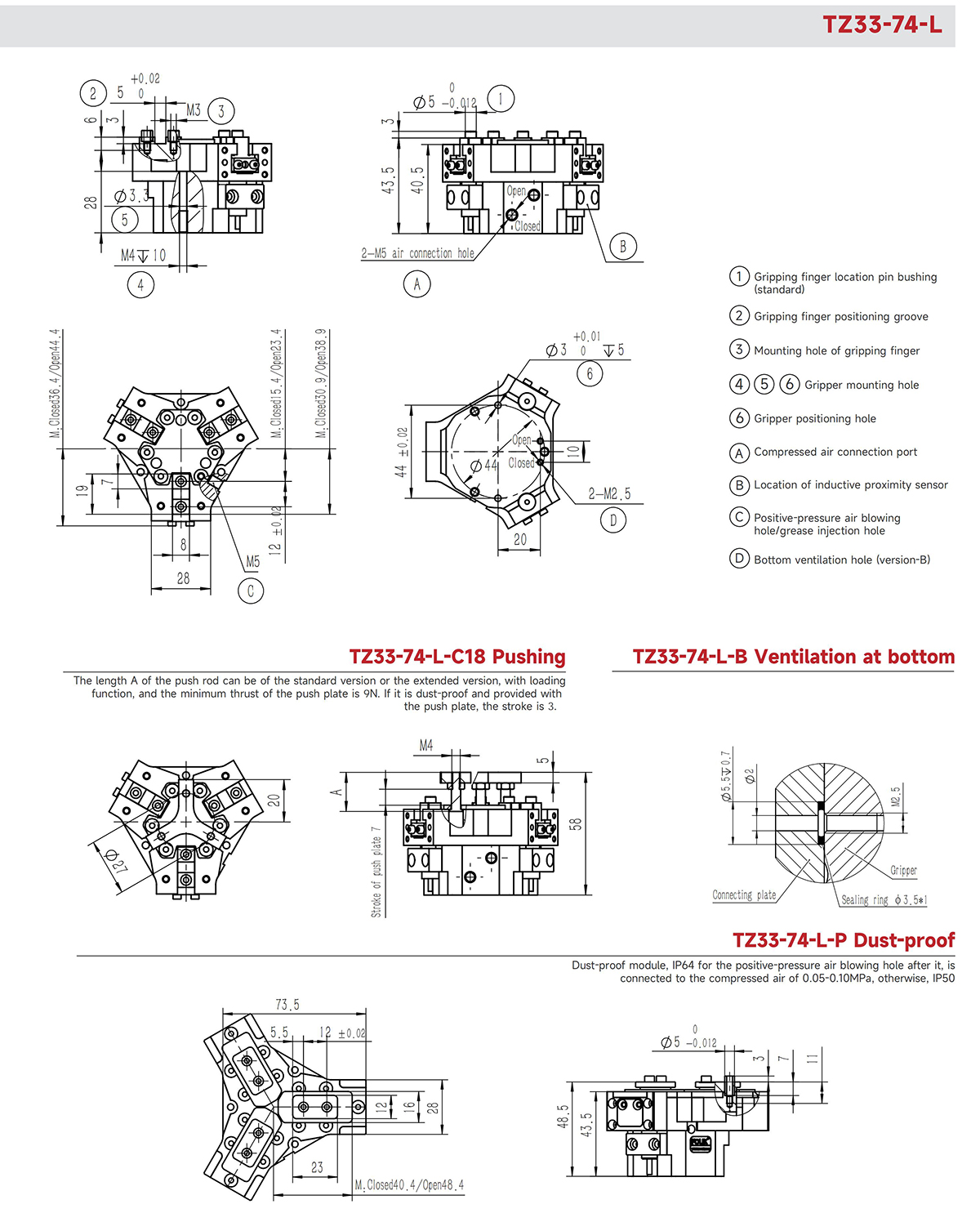

TZ33-74-L
L: Stroke extension
B: Ventilation at bottom
C18: Length of push rod
P: Dust cover IP64
H: High temperature resistance
| Product attributes | TZ33-74-L | Unit | |
| Single stroke | 8 | mm | |
| Product weight | 0.4 | kg | |
| Maximum allowable gripping distance | 60 | mm | |
| Theoretical maximum gripping force: opening/closing | 64P/60P | N | |
| Workpiece weight | 1.2 | kg | |
| Opening/closing time | 0.05/0.05 | s | |
| Gas consumption of single opening and closing cycle | 0.1 | L | |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | |||
| Repeated gripping accuracy/mm | ± 0.02 | Specification of air connection port | M5 |
| Operating air pressure range/bar | 3~7 | Temperature range of application/°C | -5~60 |
| IP rating | 40 | Maximum allowable single-fingergripping weight/kg | 0.15 |
| Inductive proximity sensor | |
| IPSD-2NS-0818-L3 | Inductive, NPN, 3-core3m |
| IPSD-2PS-0818-L3 | Inductive, PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of two positions, see the sensor appendix.
The long-stroke pneumatic three-finger gripper, with the T-shaped load-bearing structure, has floating thrust from the push plate. It has a service life of more than 500,000 times. With the dust-proof level of up to IP64 and the optional self-locking module, it can adapt to complex scenes and diversified requirements.
