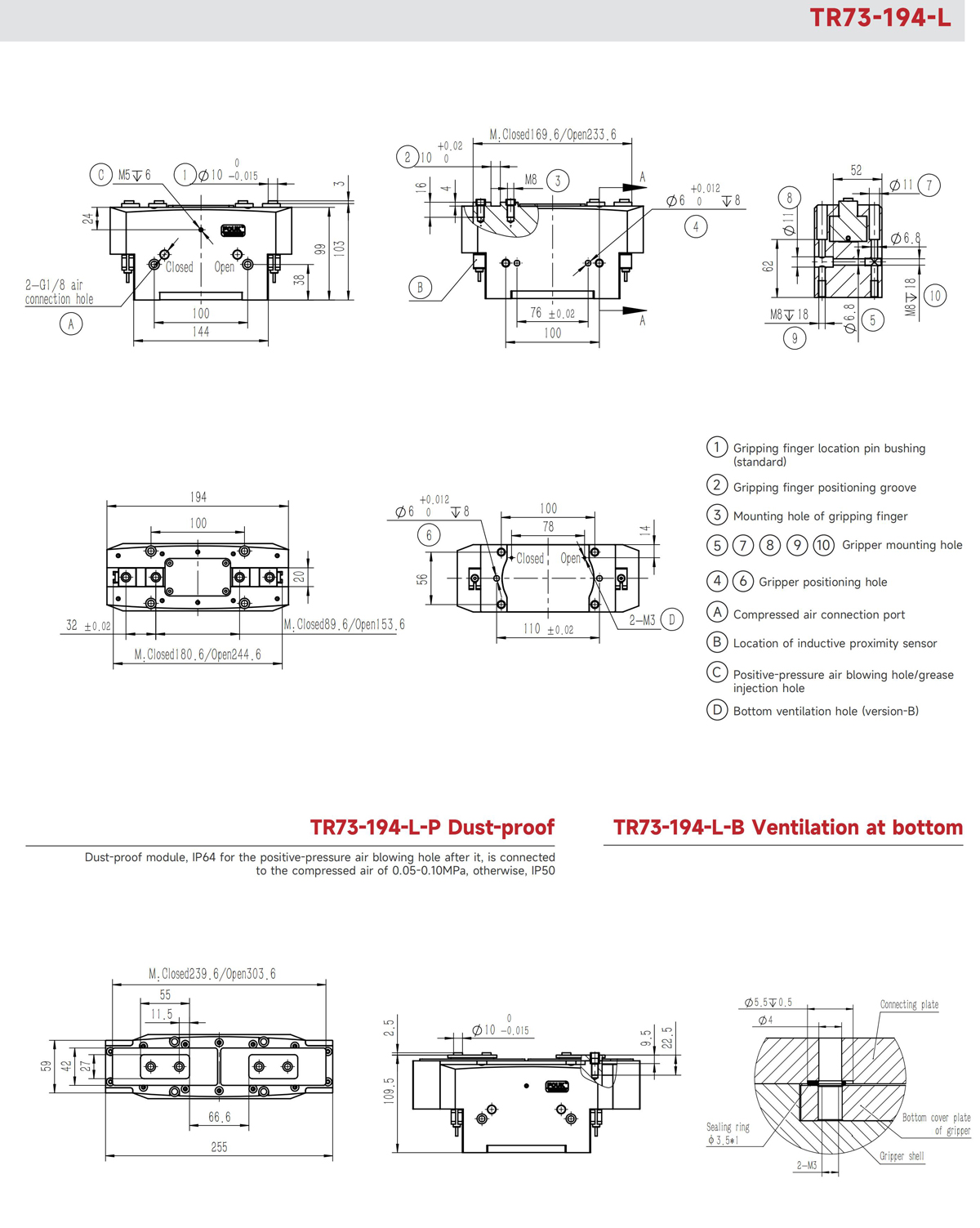

TR73-194-L
L: Stroke extension
B: Ventilation at bottom
P: Dust cover IP64
H: High temperature resistance
| Product attributes | TR73-194-L | Unit | |
| Single stroke | 32 | mm | |
| Product weight | 3.8 | kg | |
| Maximum allowable gripping distance | 180 | mm | |
| Theoretical maximum gripping force: opening/closing | 326P/300P | N | |
| Workpiece weight | 8 | kg | |
| Opening/closing time | 0.25/0.25 | s | |
| Gas consumption of single opening and closing cycle | 1.5 | L | |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | |||
| Repeated gripping accuracy/mm | ± 0.02 | Specification of air connection port | G1/8 |
| Operating air pressure range/bar | 3~7 | Temperature range of application/°C | -5~60 |
| IP rating | 40 | Maximum allowable single-finger gripping weight/kg | 1 |
| Inductive proximity sensor | |
| IPSD-2NS-0823-L3 | Inductive, NPN, 3-core3m |
| IPSD-2PS-0823-L3 | Inductive, PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of two positions, see the sensor appendix.

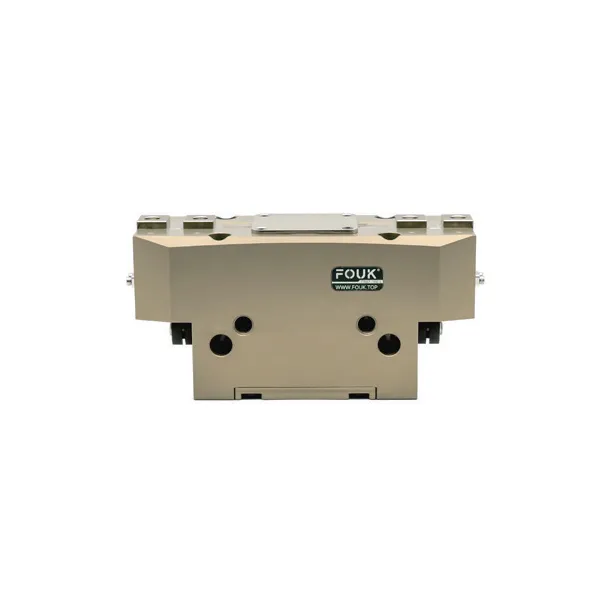

The long-stroke pneumatic two-finger parallel gripper, with T-shaped bearing structure, non-standard customization, strong power, high efficiency, good durability, optional dust-proof module, and dust-proof level up to IP64, is compatible with the products of many manufacturers.
