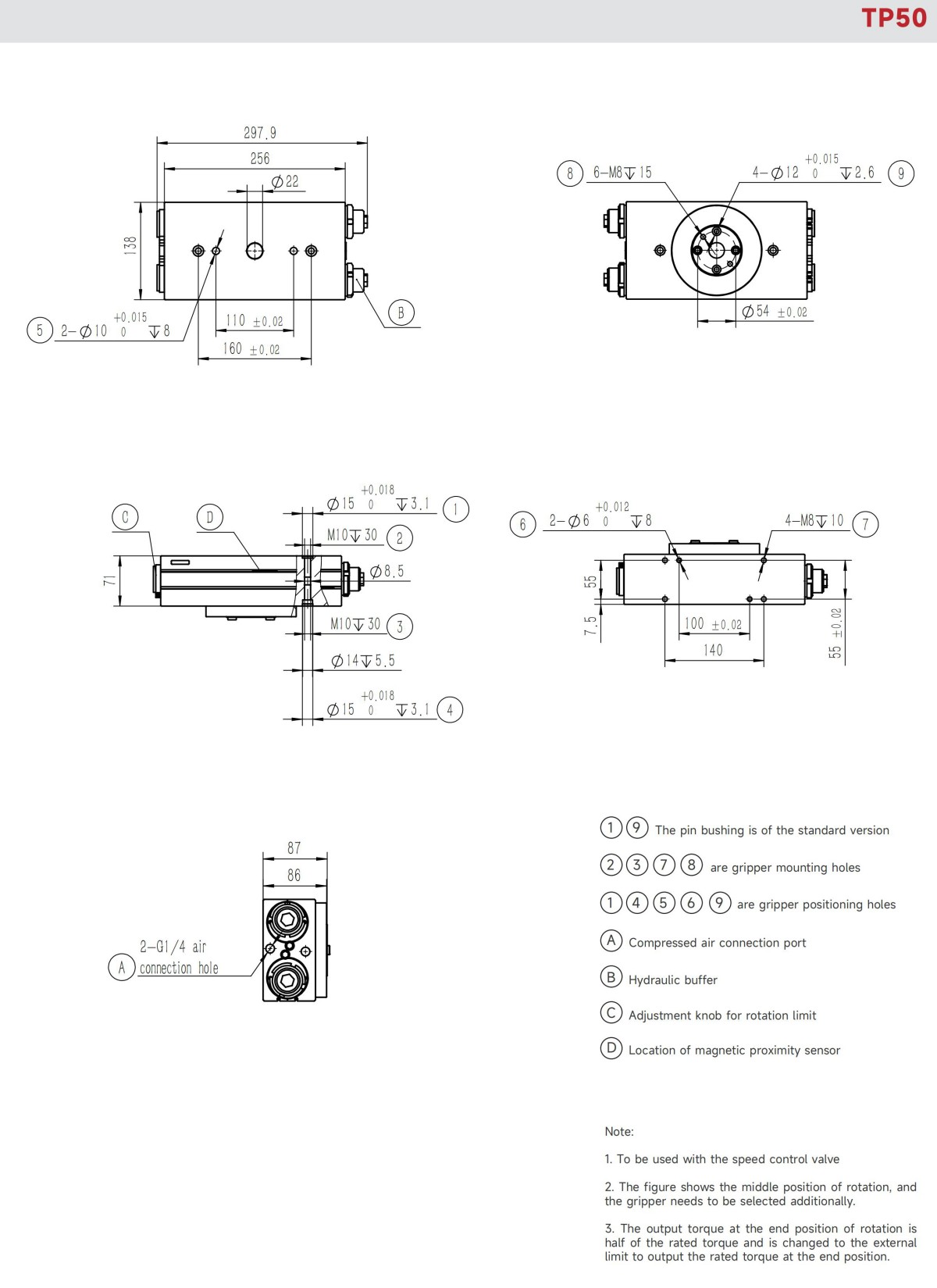

| Product attributes | Parameter Value | Unit | |
| Product Code | TP50 | ||
| Cylinder bore | 50 | mm | |
| Theoretical torque | 7.07× P | N·m | |
| Rotation angle | 90/180 | ° | |
| Adjustment range of rotation angle | ±30 | ° | |
| Product weight | 9.50 | kg | |
| Allowable rotation time | 1.5~4 | s | |
| Maximum allowable kinetic energy | 19 | J | |
| Sensor type | Magnetic proximity sensor | ||
| P:Compressed air pressure [bar] | |||
| Specification of buffer unit | M33 Hydraulic buffer | Specification of air connection port | G1/4 |
| Repeated gripping accuracy/mm | ± 0.05 | Temperature range of application/°C | -5~60 |
| Operating air pressure range/bar | 3~8 | IP rating | 65 |
| Magnetic proximity sensor | |
| D-M9NAL | Magnetic, NPN, 3-core3m |
| D-M9PAL | Magnetic, PNP, 3-core3m |
*Two sensors are required for each rotation unit. For the detailed monitoringof two positions, see the sensor appendix.
In the rotating unit series, TP product is a universal rotating device driven by the compressed air, which can realize rotation for 90°/180°
