| Product attributes | Parameter Value | Unit | |

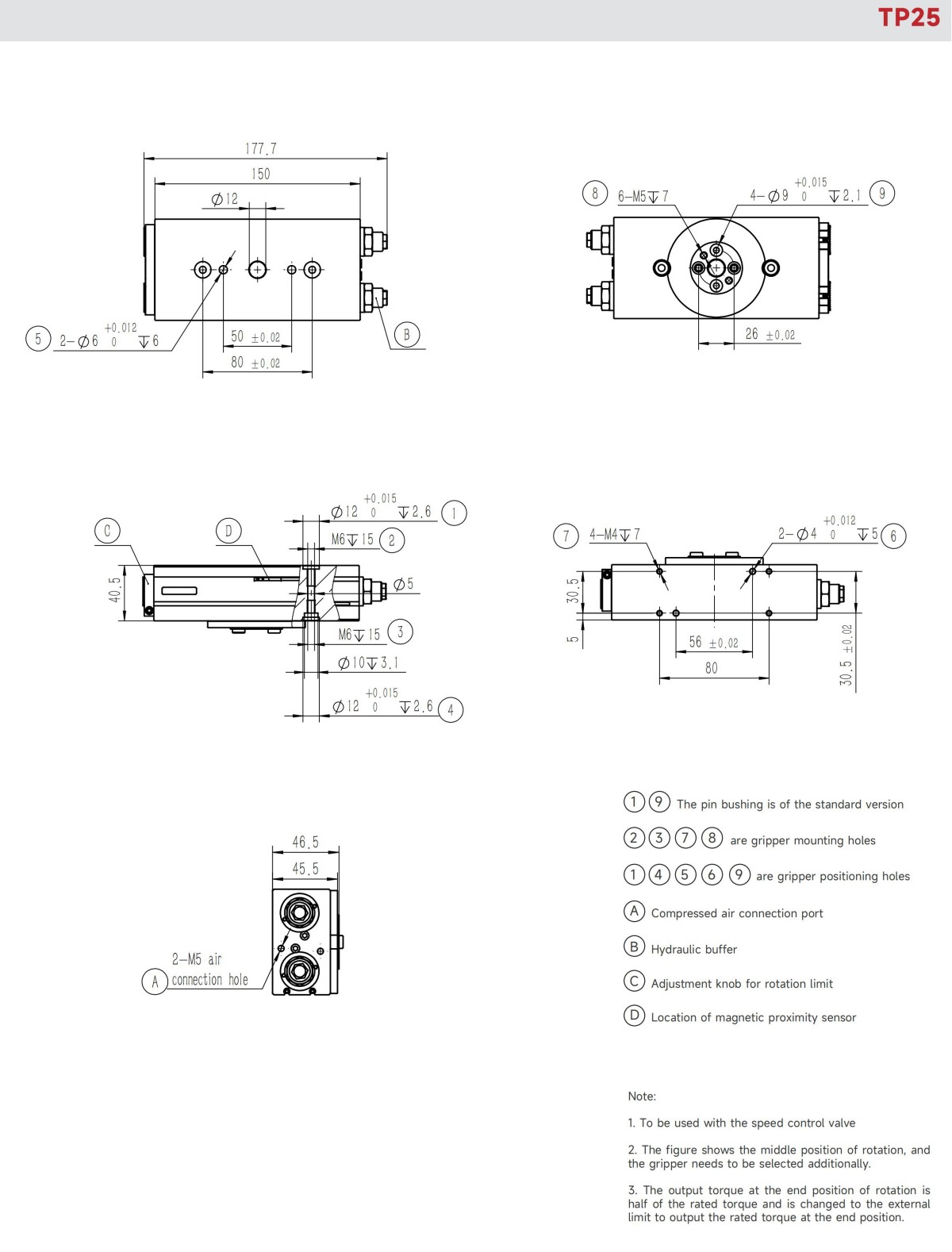

| Product Code | TP25 | ||
| Cylinder bore | 25 | mm | |
| Theoretical torque | 0.98 × P | N·m | |
| Rotation angle | 90/180 | ° | |
| Adjustment range of rotation angle | ±30 | ° | |
| Product weight | 1.55 | kg | |
| Allowable rotation time | 1~2 | s | |
| Maximum allowable kinetic energy | 1.4 | J | |
| Sensor type | Magnetic proximity sensor | ||
| P:Compressed air pressure [bar] | |||
| Specification of buffer unit | M14 Hydraulic buffer | Specification of air connection port | M5 |
| Repeated gripping accuracy/mm | ± 0.05 | Temperature range of application/°C | -5~60 |
| Operating air pressure range/bar | 3~7 | IP rating | 65 |
| Magnetic proximity sensor | |
| D-M9NAL | Magnetic,NPN,3-core3m |
| D-M9PAL | Magnetic,PNP,3-core3m |
| *Two sensors are required for each rotation unit. For the detailed monitoring of two positions,see the sensor appendix. | |

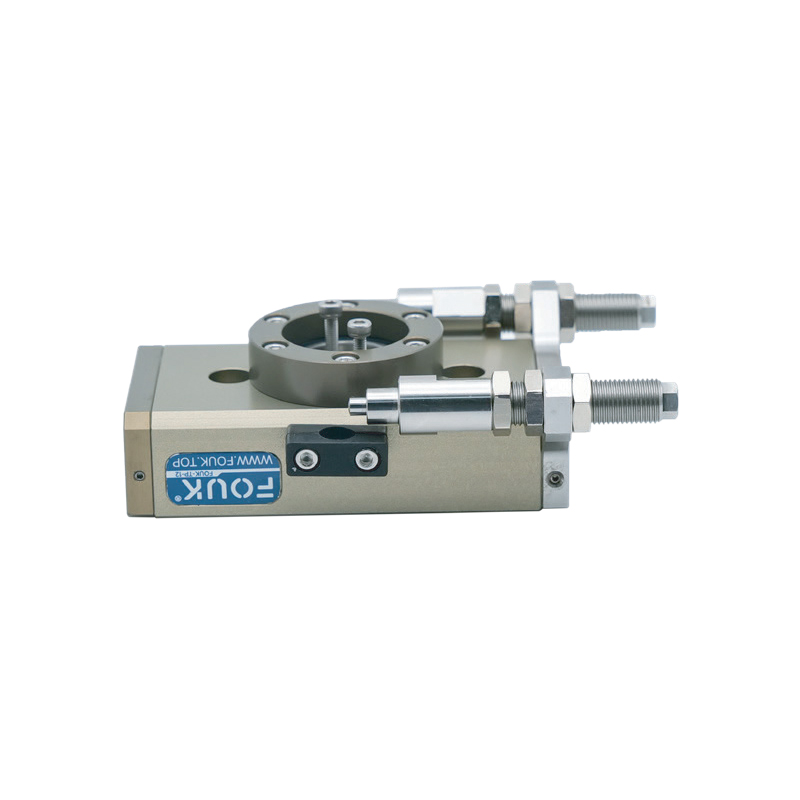

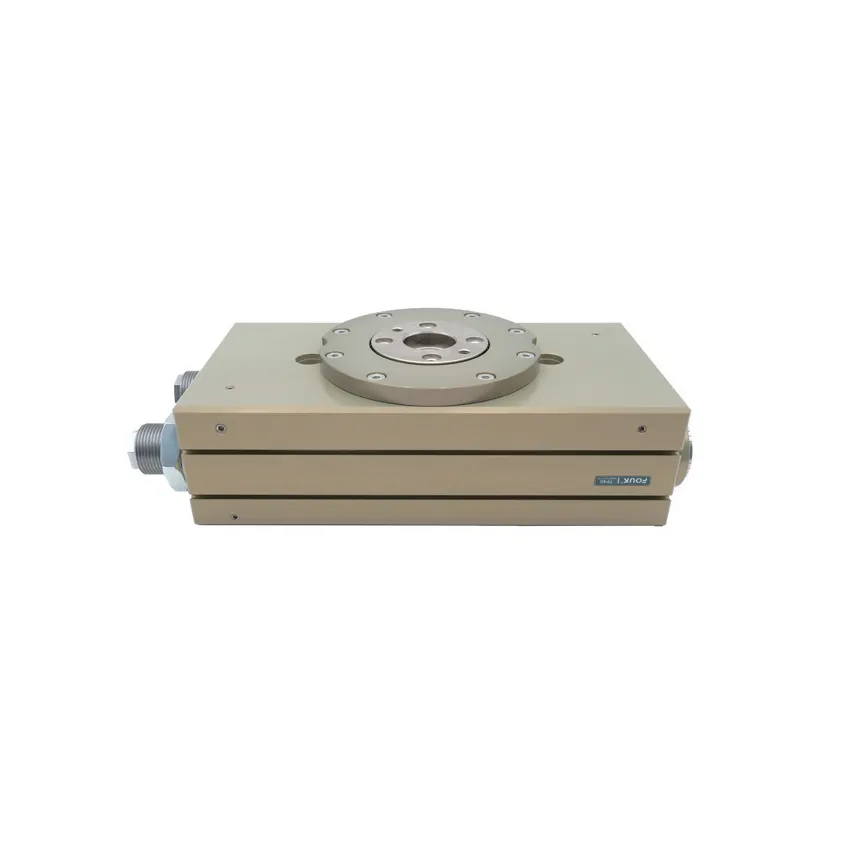

In the rotating unit series, TP product is a universal rotating device driven by the compressed air, which can realize rotation for 90°/180°
