| Product attributes | Parameter Value | Unit | |

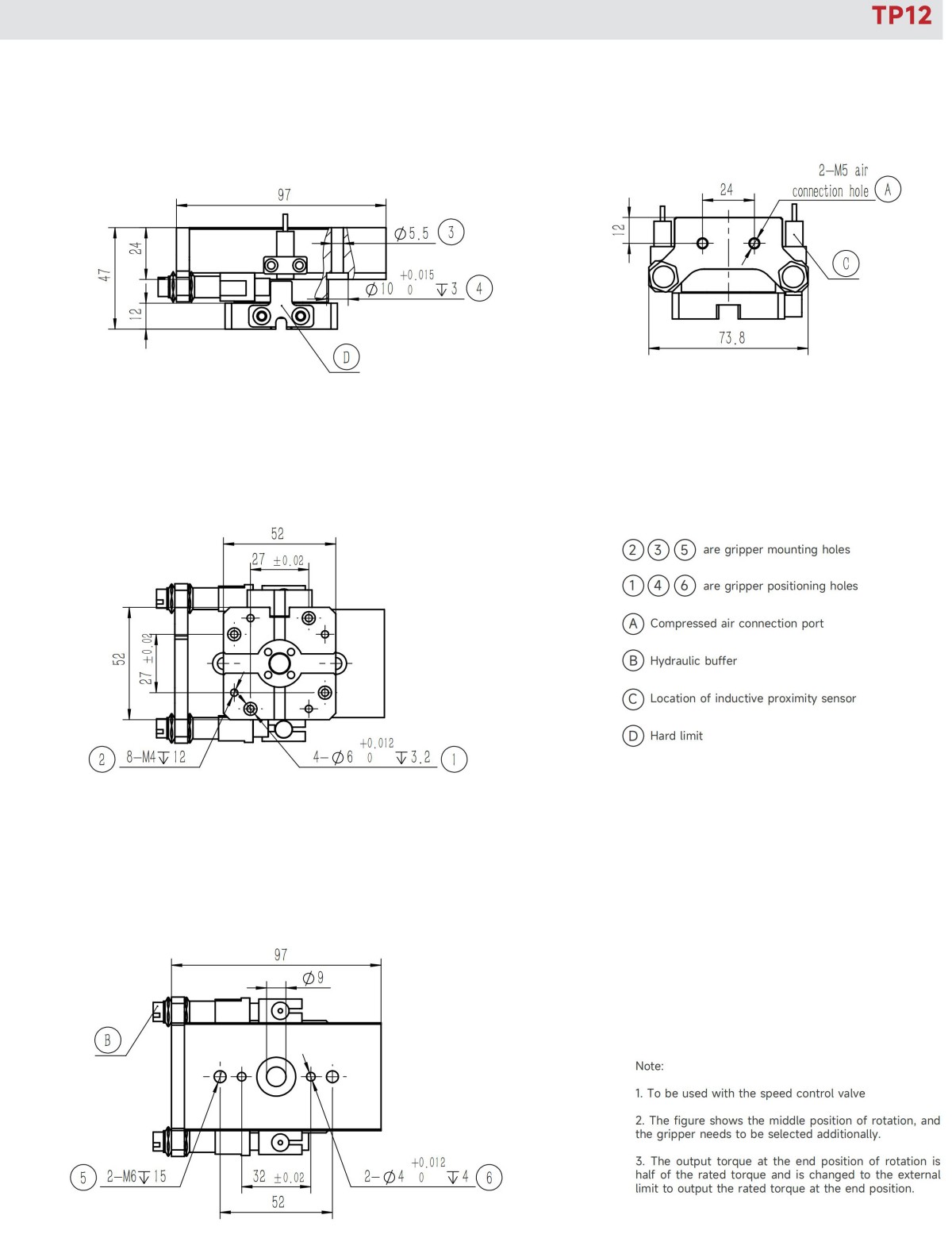

| Product Code | TP12 | ||
| Cylinder bore | 12 | mm | |
| Theoretical torque | 0.13 × P | N·m | |
| Rotation angle | 180 | ° | |
| Product weight | 0.65 | kg | |
| Allowable rotation time | 0.8~2 | s | |
| Maximum allowable kinetic energy | 0.3 | J | |
| Sensor type | Inductive proximity sensor | ||
| P:Compressed air pressure [bar] | |||
| Specification of buffer unit | M10 Hydraulic buffer | Specification of air connection port | M5 |
| Repeated gripping accuracy/mm | ± 0.05 | Temperature range of application/°C | -5~60 |
| Operating air pressure range/bar | 3~7 | IP rating | 65 |
| Inductive proximity sensor | |
| IPSD-2NS-0823-L3 | Inductive,NPN,3-core3m |
| IPSD-2PS-0823-L3 | Inductive,PNP,3-core3m |
| *Two sensors are required for each rotation unit. For the detailed monitoring of two positions,see the sensor appendix. | |

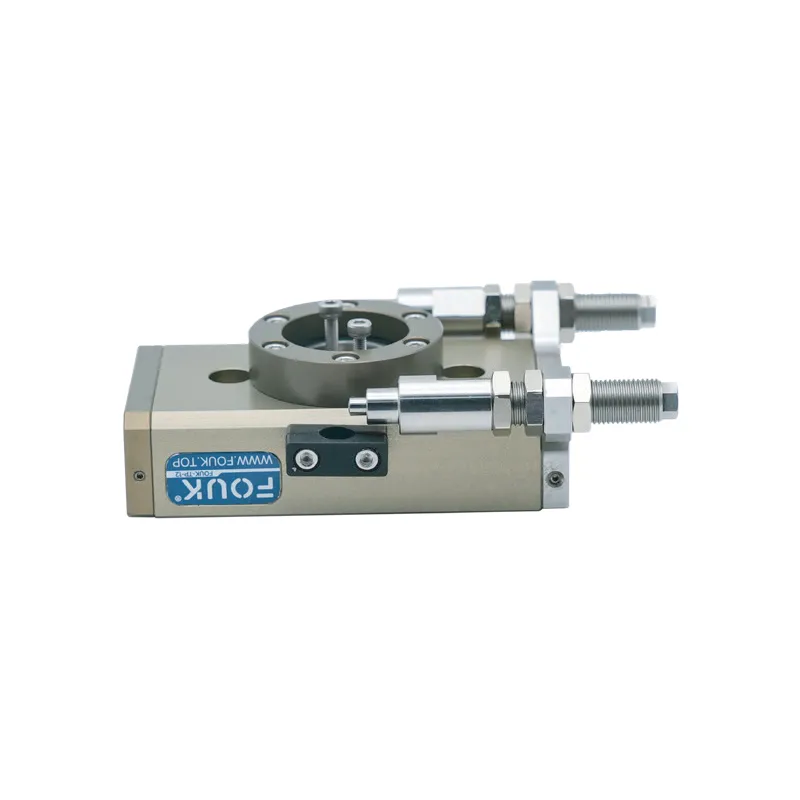

In the rotating unit series, TP product is a universal rotating device driven by the compressed air, which can realize rotation for 90°/180°
