| Product attributes | TG50 | Unit |
| Theoretical torque | 7.07×P | N·m |
| Suitable Workpiece Load for Single-Side Finger Cylinder | 9 | kg |
| Maximum working load of single-side finger cylinder | 12 | kg |
| Product weight | 15.2 | kg |
| Rotation time | 1.5~4 | sec |
| Specification of buffer unit | M33 Hydraulic buffer | |
| Repeated positioning accuracy | ±0.05 | mm |
| Operating air pressure | 3~8 | bar |
| Air connection port of air distribution pipe | G1/4 | |
| Operating temperature range | -5~60 | ℃ |
| IP rating | 65 |
| FZ90-155 | ||
| Product attributes | Parameter Value | Unit |
| Single stroke | 13 | mm |
| Product weight | 2.7 | kg |
| Maximum allowable gripping distance | 170 | mm |
| Specification of air connection port | G1/8 | |
| Theoretical maximum gripping force:opening/closing | 515P/490P | N |
| Opening/closing time | 0.2/0.2 | s |
| Repeated gripping accuracy | ± 0.02 | mm |
| Operating air pressure range | 3~8 | bar |
| Temperature range of application | -5~60 | ℃ |
| IP rating | 40 |
| FR72-192 | ||
| Product attributes | Parameter Value | Unit |
| Single stroke | 16 | mm |
| Product weight | 2.75 | kg |
| Maximum allowable gripping distance | 180 | mm |
| Specification of air connection port | G1/8 | |
| Theoretical maximum gripping force:opening/closing | 340P/316P | N |
| Opening/closing time | 0.15/0.15 | s |
| Repeated gripping accuracy | ± 0.03 | mm |
| Operating air pressure range | 3~8 | bar |
| Temperature range of application | -5~60 | ℃ |
| IP rating | 40 |
| Magnetic proximity sensor | Inductive proximity sensor | Magnetic proximity sensor | |||||
| Used for TG | MZC1-2V2NS-FU0 | Magnetic,NPN,3-core2m | Used for gripper | IPSD-2NS-0831/0823-L3 | Inductive,NPN,3-core3m | D-M9NAL | Magnetic,NPN,3-core3m |
| MZC1-2V2PS-FU0 | Magnetic,PNP,3-core2m | IPSD-2PS-0831/0823-L3 | Inductive,PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m | ||
*It is recommended to use two sensors for each rotating unit, and it is recommended to use two sensors for each gripper. For details, see the sensor appendix.

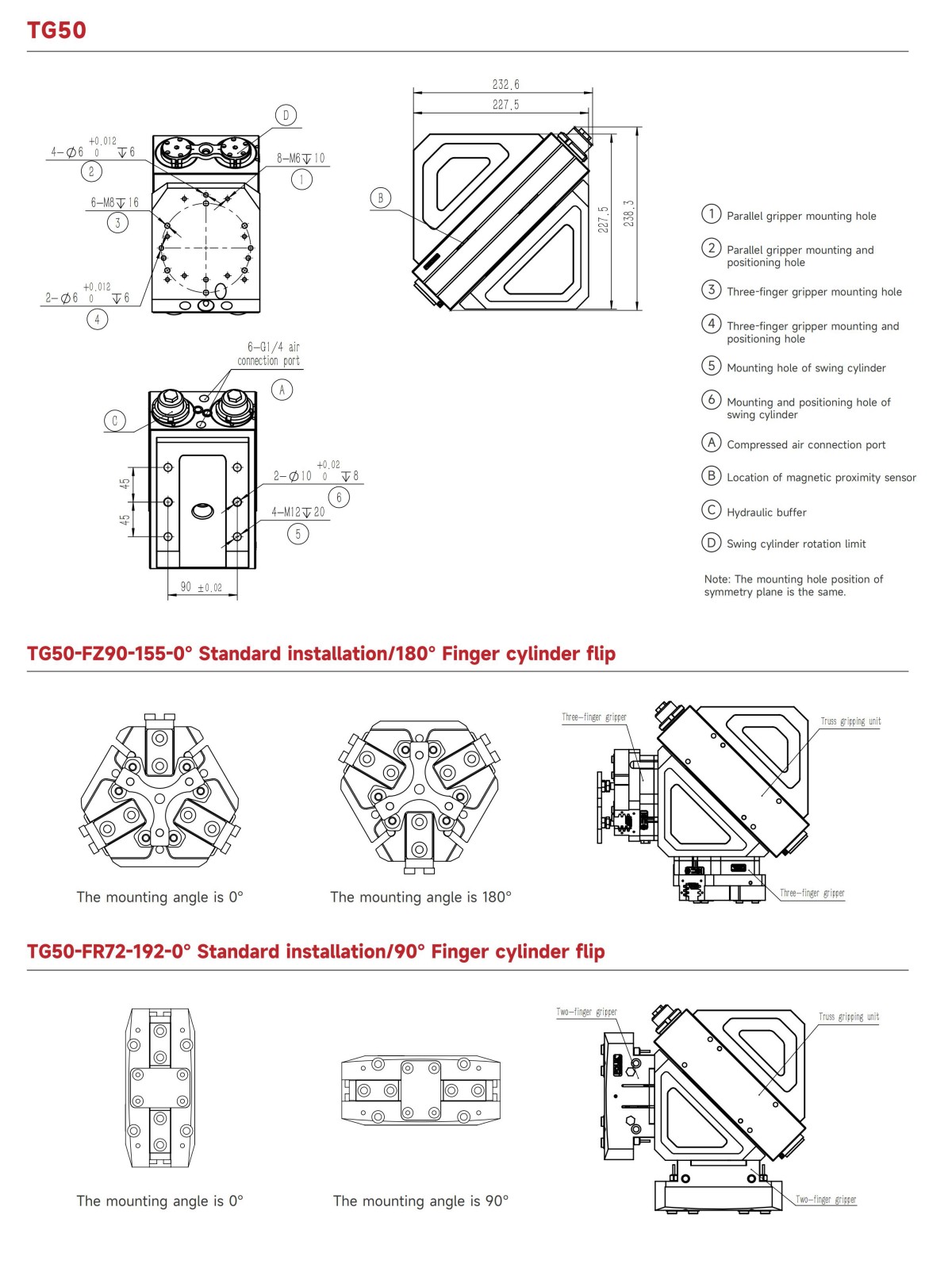

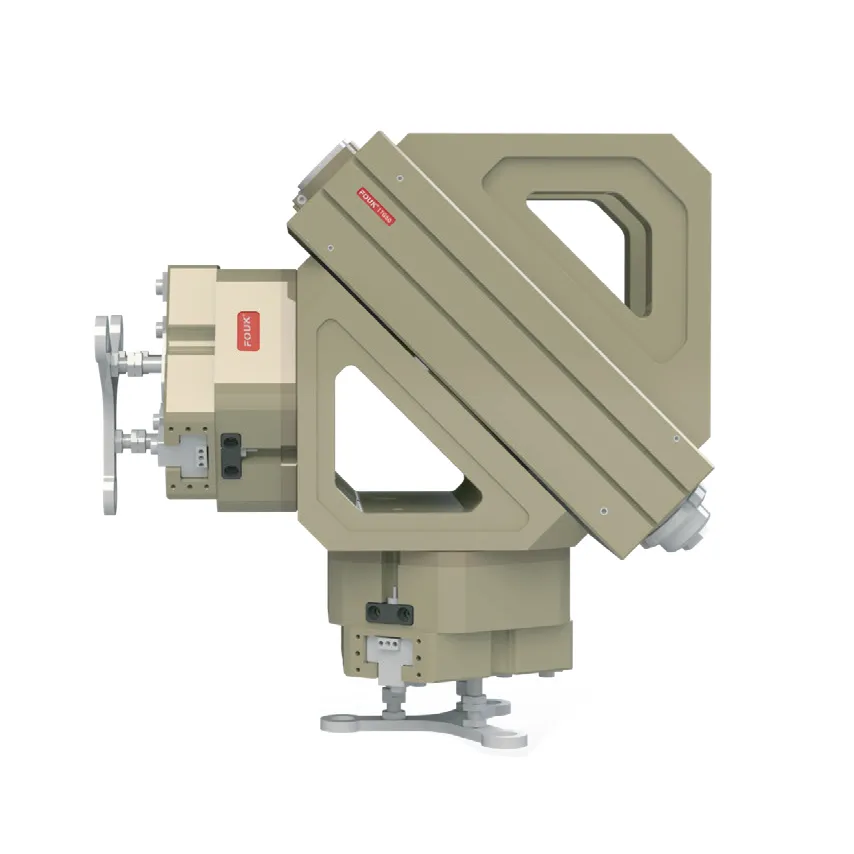

The truss system disc-type gripping unit adopts a pneumatic gear rack structure to realize swing for 180°, and becomes an important module for loading and blanking of the machine tool truss in coordination with the grippers.
