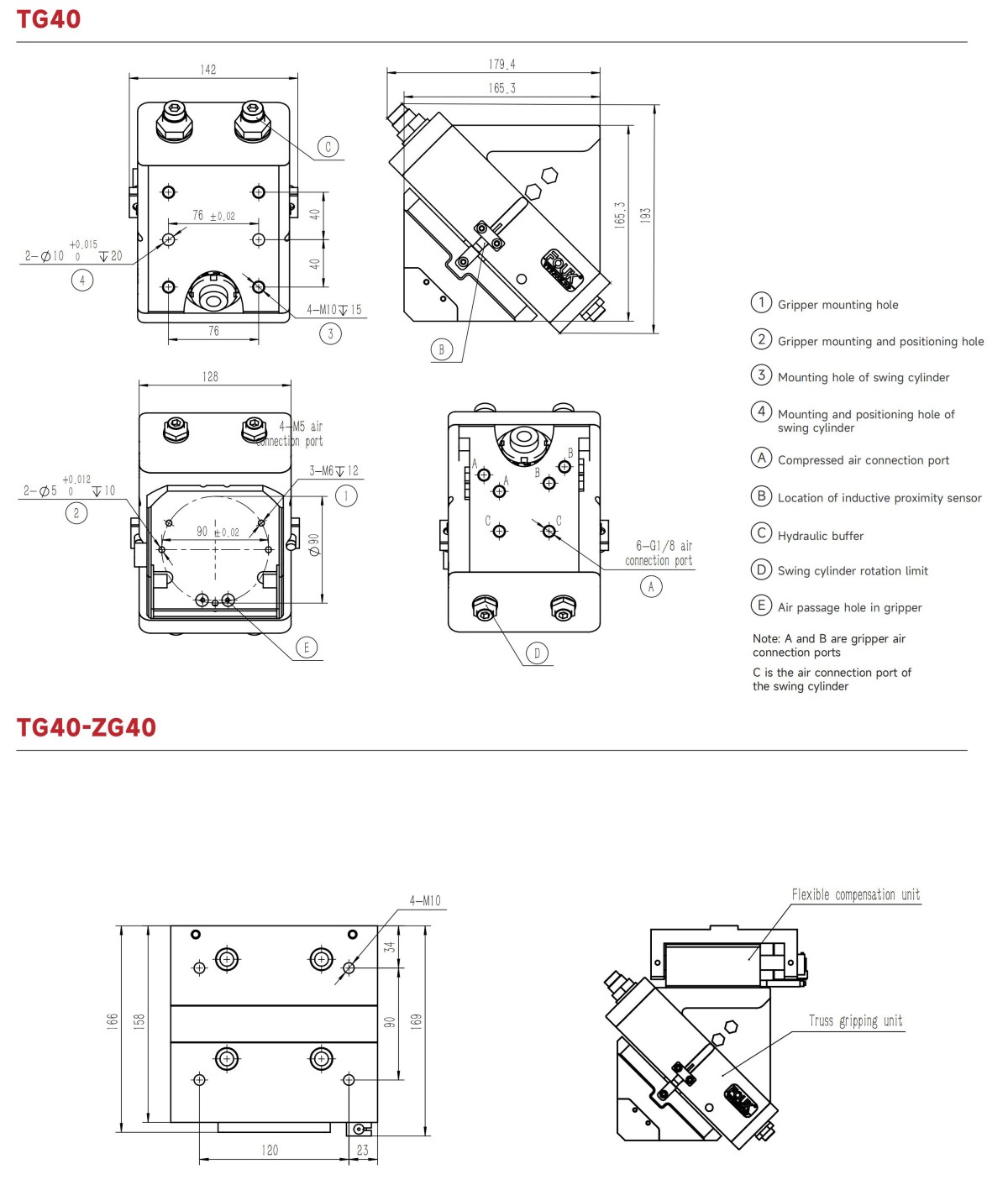

| Product attributes | TG40 | Unit |
| Theoretical torque | 3.7 × P | N·m |
| Suitable Workpiece Load for Single-Side Finger Cylinder | 6.5 | kg |
| Maximum working load of single-side finger cylinder | 8 | kg |
| Product weight | 9.9 | kg |
| Rotation time | 1~1.5 | sec |
| Specification of buffer unit | M20 Hydraulic buffer | |
| Repeated positioning accuracy | ± 0.05 | mm |
| Operating air pressure | 3~8 | bar |
| Air connection port of air distribution pipe | G1/8 | |
| Operating temperature range | -5~60 | ℃ |
| IP rating | 65 |

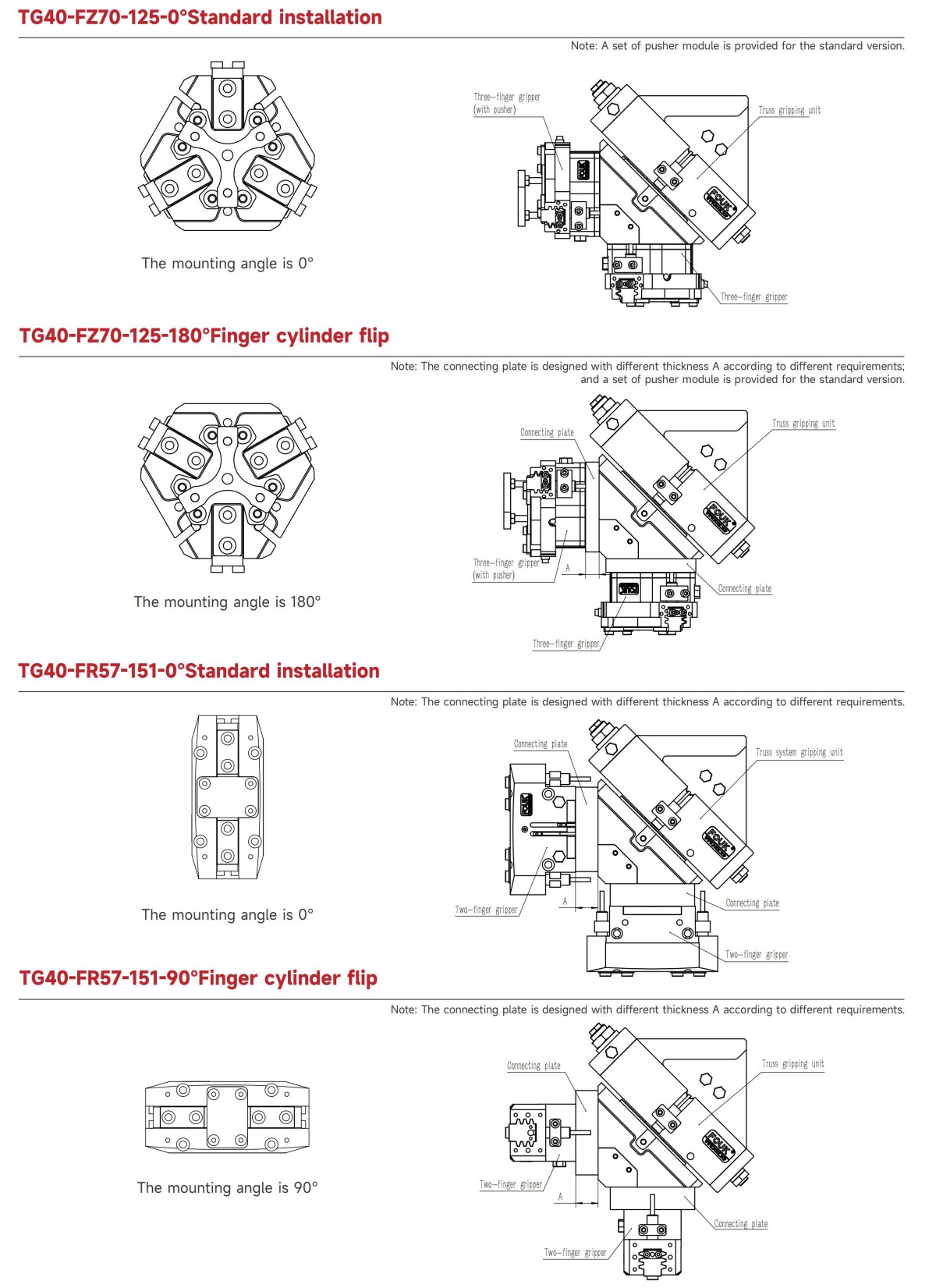

| FZ70-125 | ||
| Product attributes | Parameter Value | Unit |
| Single stroke | 10 | mm |
| Product weight | 1.6 | kg |
| Maximum allowable gripping distance | 145 | mm |
| Specification of air connection port | G1/8 | |
| Theoretical maximum gripping force:opening/closing | 310P/280P | N |
| Opening/closing time | 0.1/0.1 | s |
| Repeated gripping accuracy | ± 0.02 | mm |
| Operating air pressure range | 3~8 | bar |
| Temperature range of application | -5~60 | ℃ |
| IP rating | 40 |
| FR57-151 | ||
| Product attributes | Parameter Value | Unit |
| Single stroke | 13 | mm |
| Product weight | 1.45 | kg |
| Maximum allowable gripping distance | 160 | mm |
| Specification of air connection port | G1/8 | |
| Theoretical maximum gripping force:opening/closing | 214P/198P | N |
| Opening/closing time | 0.09/0.09 | s |
| Repeated gripping accuracy | ± 0.02 | mm |
| Operating air pressure range | 3~8 | bar |
| Temperature range of application | -5~60 | ℃ |
| IP rating | 40 |
| Inductive proximity sensor | Inductive proximity sensor | Magnetic proximity sensor | |||||
| Used for TG | IPSD-2NS-0823-L3 | Inductive,NPN,3-core3m | Used for gripper | IPSD-2NS-0823-L3 | Inductive,NPN,3-core3m | D-M9NAL | Magnetic,NPN,3-core3m |
| IPSD-2PS-0823-L3 | Inductive,PNP,3-core3m | IPSD-2PS-0823-L3 | Inductive,PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m | ||
*It is recommended to use two sensors for each rotating unit, and it is recommended to use two sensors for each gripper. For details, see the sensor appendix.

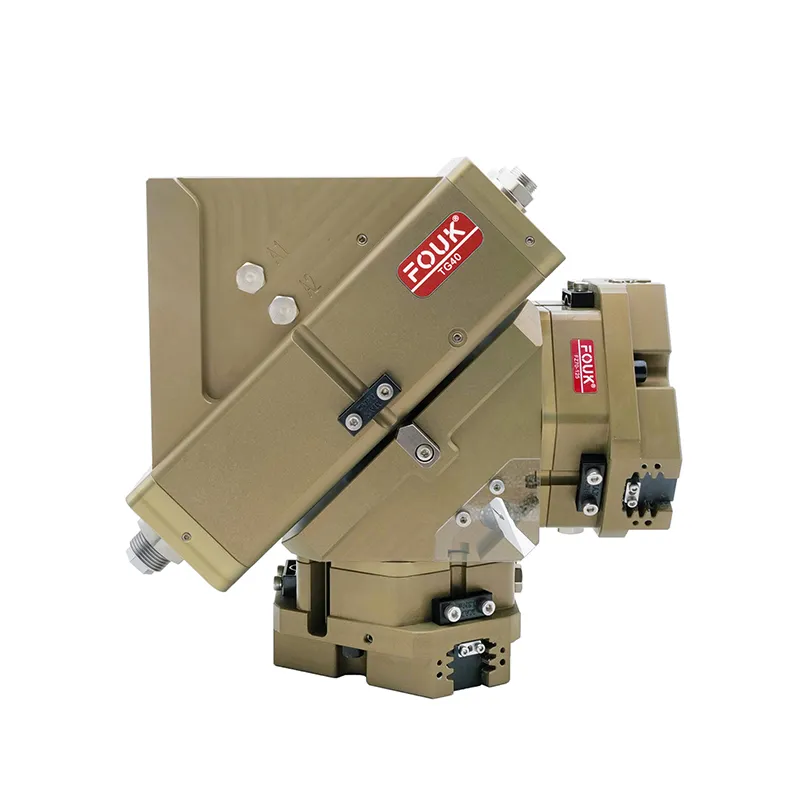

The truss system disc-type gripping unit adopts a pneumatic gear rack structure to realize swing for 180°, and becomes an important module for loading and blanking of the machine tool truss in coordination with the grippers.
