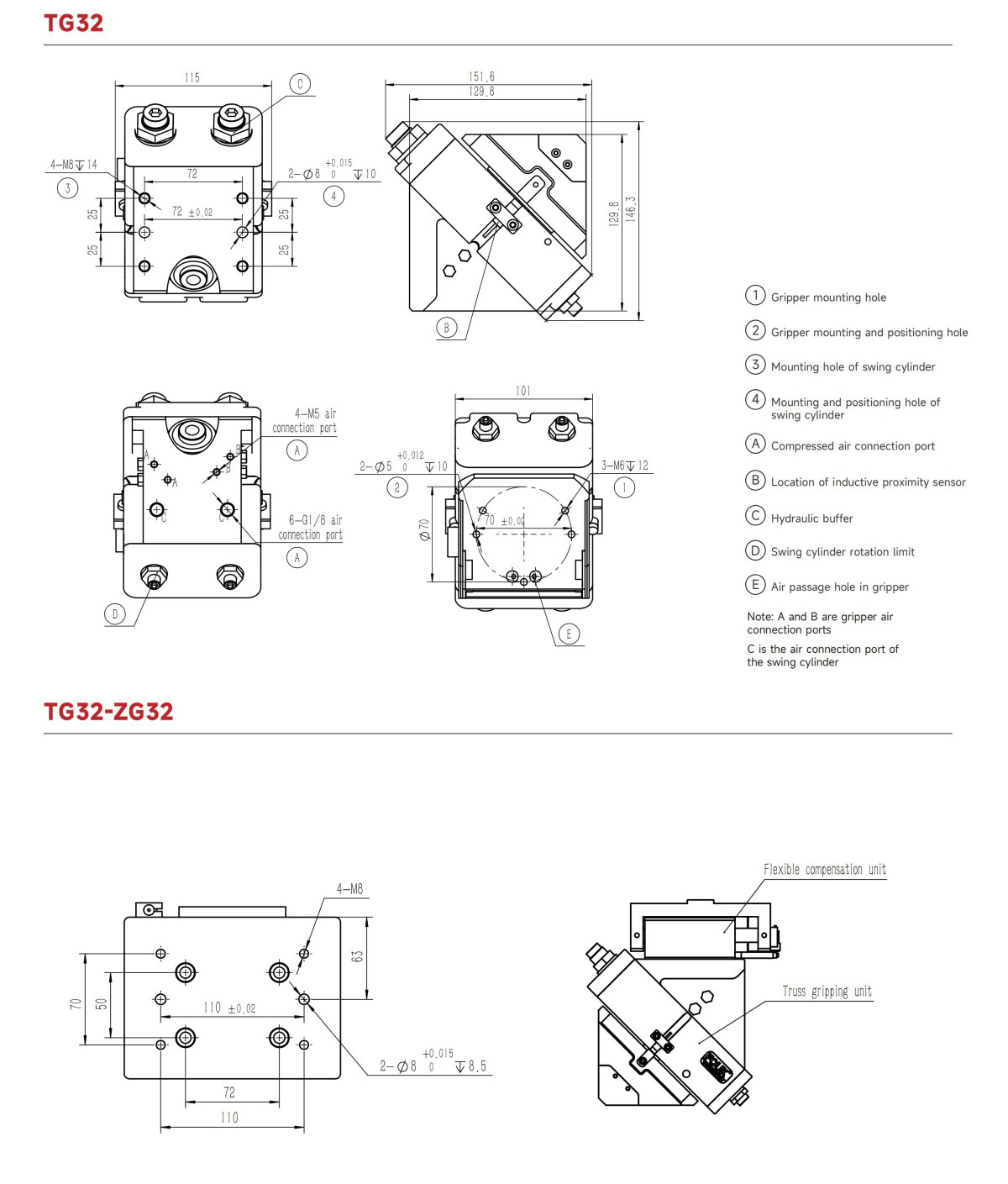

| Product attributes | TG32 | Unit |
| Theoretical torque | 2.1×P | N·m |
| Suitable Workpiece Load for Single-Side Finger Cylinder | 3 | kg |
| Maximum working load of single-side finger cylinder | 4 | kg |
| Product weight | 4.8 | kg |
| Rotation time | 0.5~1.2 | sec |
| Specification of buffer unit | M20 Hydraulic buffer | |
| Repeated positioning accuracy | ±0.05 | mm |
| Operating air pressure | 3~8 | bar |
| Air connection port of air distribution pipe | G1/8+M5 | |
| Operating temperature range | -5~60 | ℃ |
| IP rating | 65 |

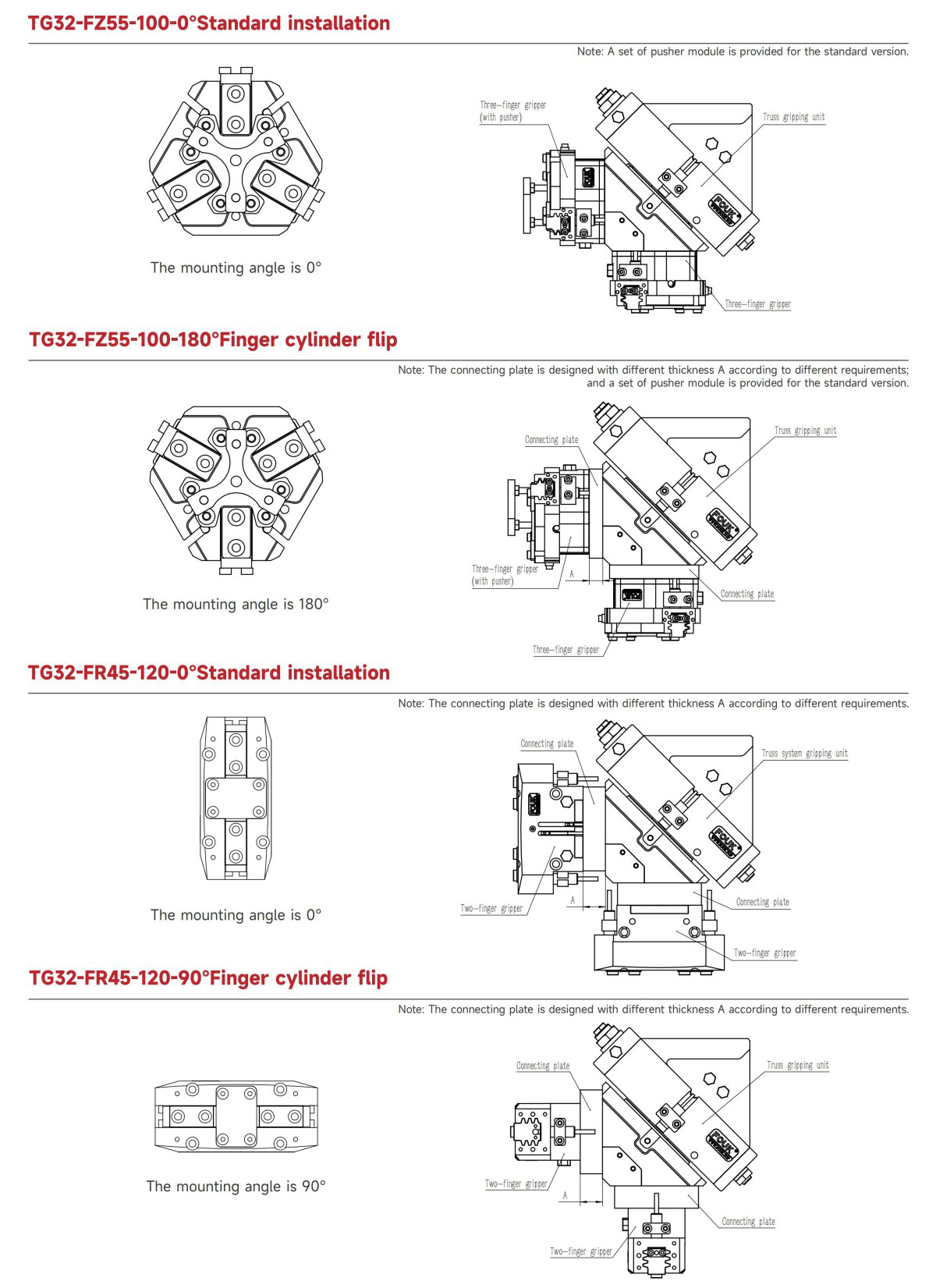

| FZ55-100 | ||
| Product attributes | Parameter Value | Unit |
| Single stroke | 8 | mm |
| Product weight | 0.87 | kg |
| Maximum allowable gripping distance | 110 | mm |
| Specification of air connection port | M5 | |
| Theoretical maximum gripping force:opening/closing | 198P/172P | N |
| Opening/closing time | 0.05/0.05 | s |
| Repeated gripping accuracy | ± 0.02 | mm |
| Operating air pressure range | 3~8 | bar |
| Temperature range of application | -5~60 | ℃ |
| IP rating | 40 |
| FR45-120 | ||
| Product attributes | Parameter Value | Unit |
| Single stroke | 10 | mm |
| Product weight | 0.9 | kg |
| Maximum allowable gripping distance | 140 | mm |
| Specification of air connection port | G1/8 | |
| Theoretical maximum gripping force:opening/closing | 138P/124P | N |
| Opening/closing time | 0.06/0.06 | s |
| Repeated gripping accuracy | ± 0.02 | mm |
| Operating air pressure range | 3~8 | bar |
| Temperature range of application | -5~60 | ℃ |
| IP rating | 40 |
| Inductive proximity sensor | Inductive proximity sensor | Magnetic proximity sensor | |||||
| Used for TG | IPSD-2NS-0823-L3 | Inductive,NPN,3-core3m | Used for gripper | IPSD-2NS-0823-L3 | Inductive,NPN,3-core3m | D-M9NAL | Magnetic,NPN,3-core3m |
| IPSD-2PS-0823-L3 | Inductive,PNP,3-core3m | IPSD-2PS-0823-L3 | Inductive,PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m | ||
*It is recommended to use two sensors for each rotating unit, and it is recommended to use two sensors for each gripper. For details, see the sensor appendix.

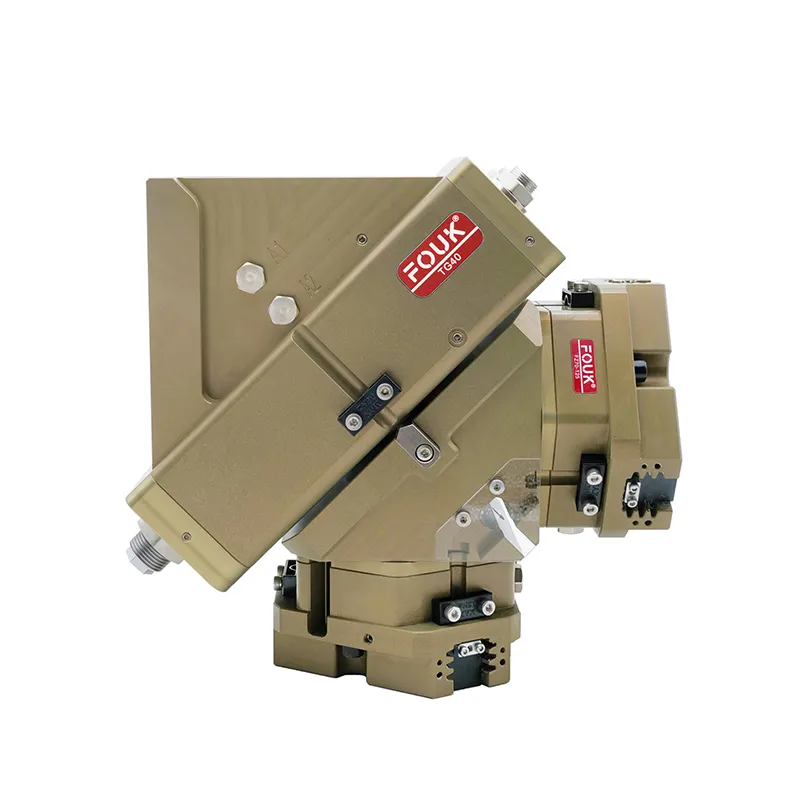

The truss system disc-type gripping unit adopts a pneumatic gear rack structure to realize swing for 180°, and becomes an important module for loading and blanking of the machine tool truss in coordination with the grippers.
