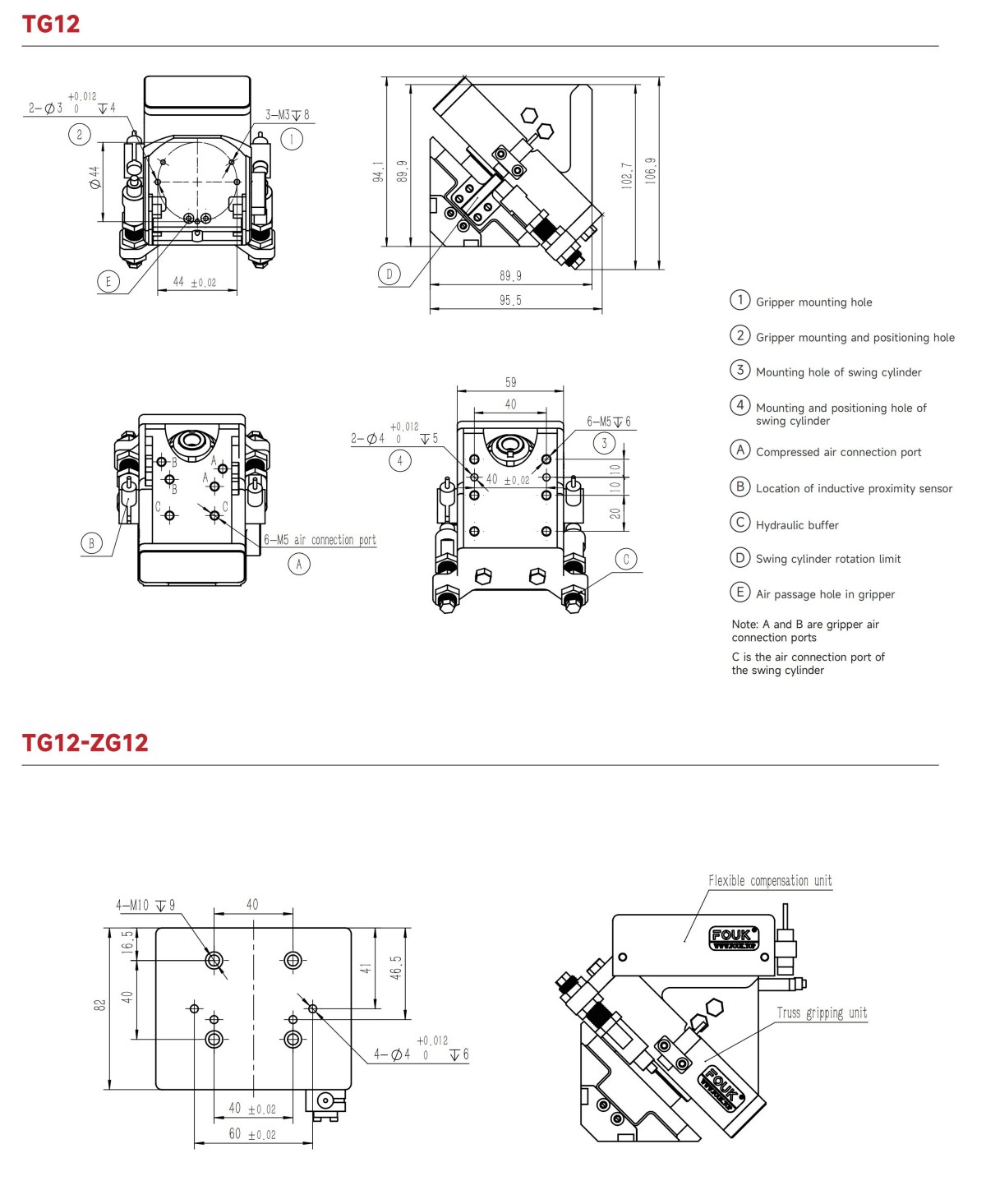

| Product attributes | TG12 | Unit |
| Theoretical torque | 0.13×P | N·m |
| Suitable Workpiece Load for Single-Side Finger Cylinder | 0.8 | kg |
| Maximum working load of single-side finger cylinder | 1 | kg |
| Product weight | 1.4 | kg |
| Rotation time | 0.3~0.8 | sec |
| Specification of buffer unit | M10 Hydraulic buffer | |
| Repeated positioning accuracy | ±0.05 | mm |
| Operating air pressure | 3~8 | bar |
| Air connection port of air distribution pipe | M5 | |
| Operating temperature range | -5~60 | ℃ |
| IP rating | 65 |
| FZ34-68 | ||
| Product attributes | Parameter Value | Unit |
| Single stroke | 6 | mm |
| Product weight | 0.35 | kg |
| Maximum allowable gripping distance | 70 | mm |
| Specification of air connection port | M5 | |
| Theoretical maximum gripping force:opening/closing | 76P/69P | N |
| Opening/closing time | 0.04/0.04 | s |
| Repeated gripping accuracy | ± 0.02 | mm |
| Operating air pressure range | 3~8 | bar |
| Temperature range of application | -5~60 | ℃ |
| IP rating | 40 |
| FR28-76 | ||
| Product attributes | Parameter Value | Unit |
| Single stroke | 6 | mm |
| Product weight | 0.3 | kg |
| Maximum allowable gripping distance | 90 | mm |
| Specification of air connection port | M5 | |
| Theoretical maximum gripping force:opening/closing | 60P/55P | N |
| Opening/closing time | 0.02/0.02 | s |
| Repeated gripping accuracy | ± 0.02 | mm |
| Operating air pressure range | 3~8 | bar |
| Temperature range of application | -5~60 | ℃ |
| IP rating | 40 |
| Inductive proximity sensor | Inductive proximity sensor | Magnetic proximity sensor | |||||
| Used for TG | IPSD-2NS-0823-L3 | Inductive,NPN,3-core3m | Used for gripper | IPSD-2NS-0823-L3 | Inductive,NPN,3-core3m | D-M9NAL | Magnetic,NPN,3-core3m |
| IPSD-2PS-0823-L3 | Inductive,PNP,3-core3m | IPSD-2PS-0823-L3 | Inductive,PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m | ||
*It is recommended to use two sensors for each rotating unit, and it is recommended to use two sensors for each gripper. For details, see the sensor appendix.

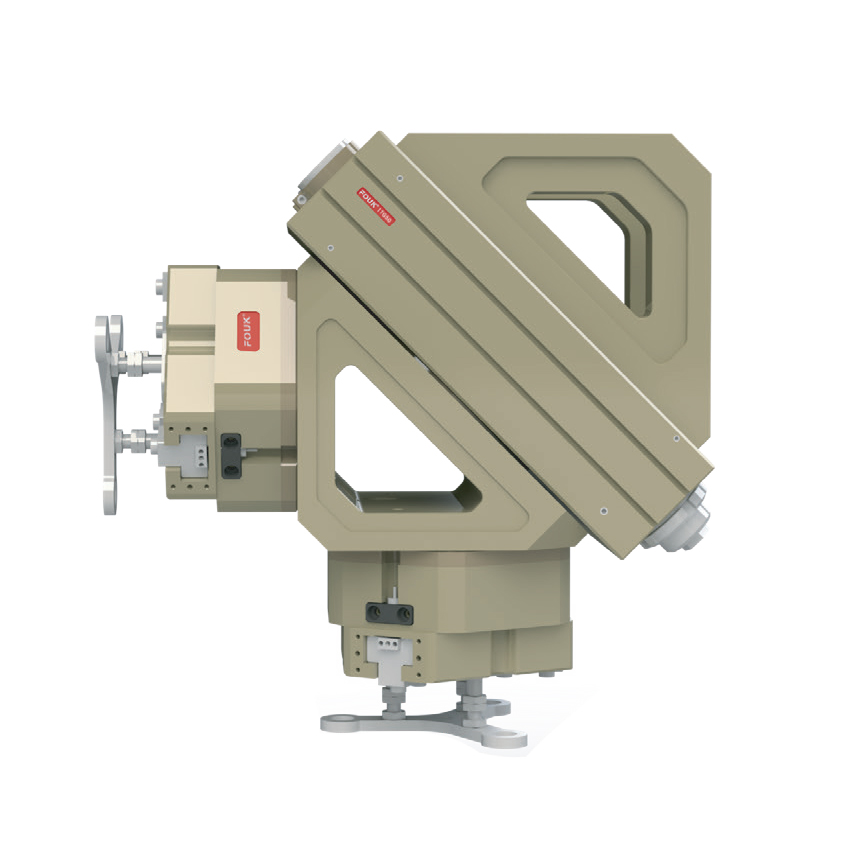

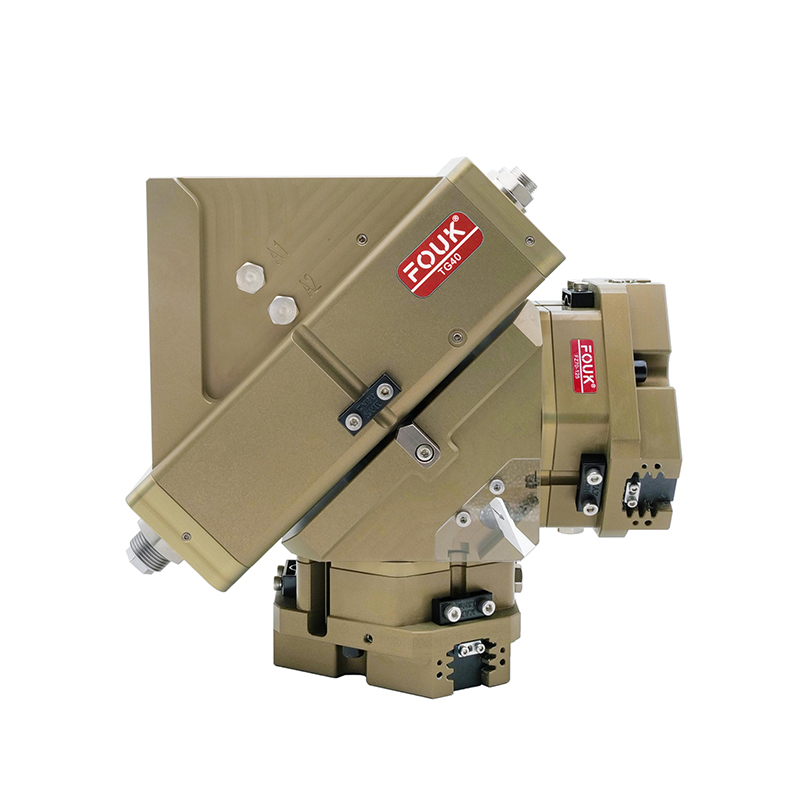

The truss system disc-type gripping unit adopts a pneumatic gear rack structure to realize swing for 180°, and becomes an important module for loading and blanking of the machine tool truss in coordination with the grippers.
