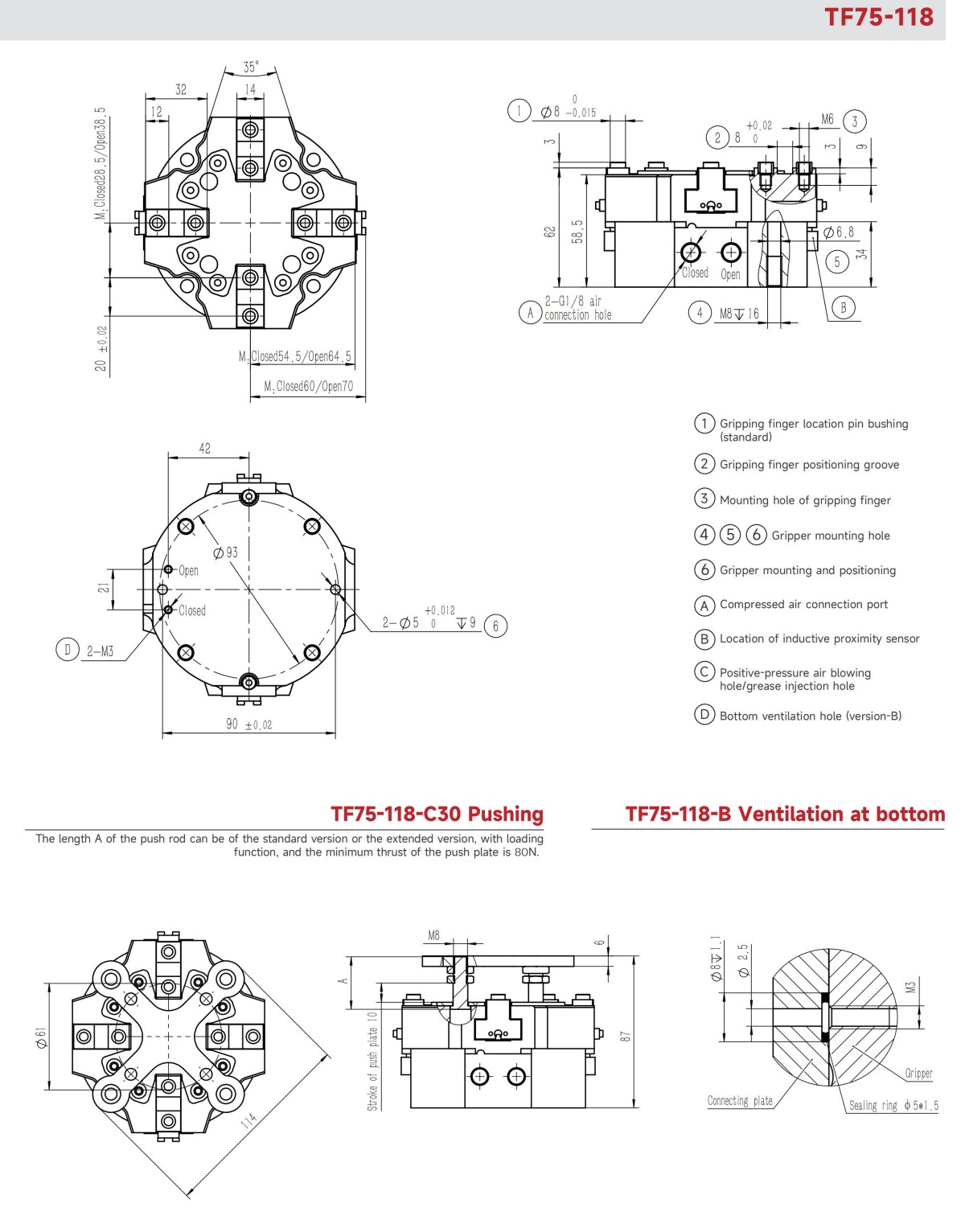

TF75-118
B: Ventilation at bottom
C30: Length of push rod
H: High temperature resistance
| Product attributes | TF75-118 | Unit | |
| Single stroke | 10 | mm | |
| Product weight | 1.6 | kg | |
| Maximum allowable gripping distance | 160 | mm | |
| Theoretical maximum gripping force: opening/closing | 386P/370P | N | |
| Workpiece weight | 8.5 | kg | |
| Opening/closing time | 0.1/0.1 | s | |
| Gas consumption of single opening and closing cycle | 0.8 | L | |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | |||
| Repeated gripping accuracy/mm | ± 0.02 | Specification of air connection port | G1/8 |
| Operating air pressure range/bar | 3~7 | Temperature range of application/°C | -5~60 |
| IP rating | 40 | Maximum allowable single-fingergripping weight/kg | 1 |
| Inductive proximity sensor | |
| IPSD-2NS-0823-L3 | Inductive, NPN, 3-core3m |
| IPSD-2PS-0823-L3 | Inductive, PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of two positions, see the sensor appendix.

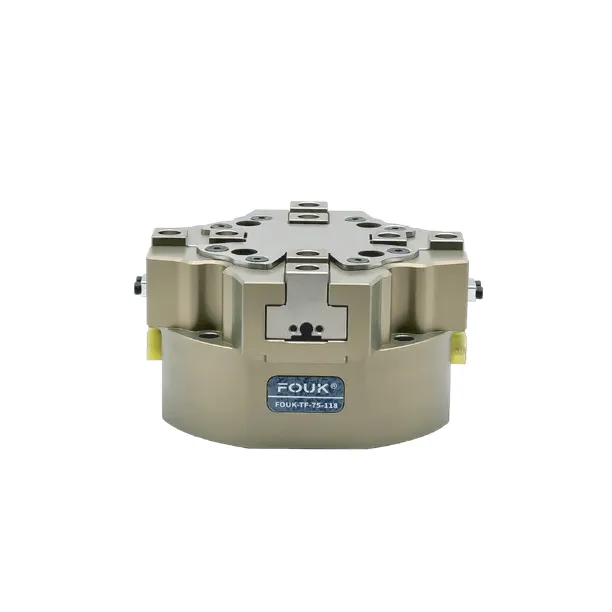

The pneumatic four-finger centering gripper, with the T-shaped load-bearing structure, supports different push plates.Its quenching spring has a service life of more than 500,000 times. The gripping force of the four-finger gripper is uniform, which can stably grip objects and prevent damage.
