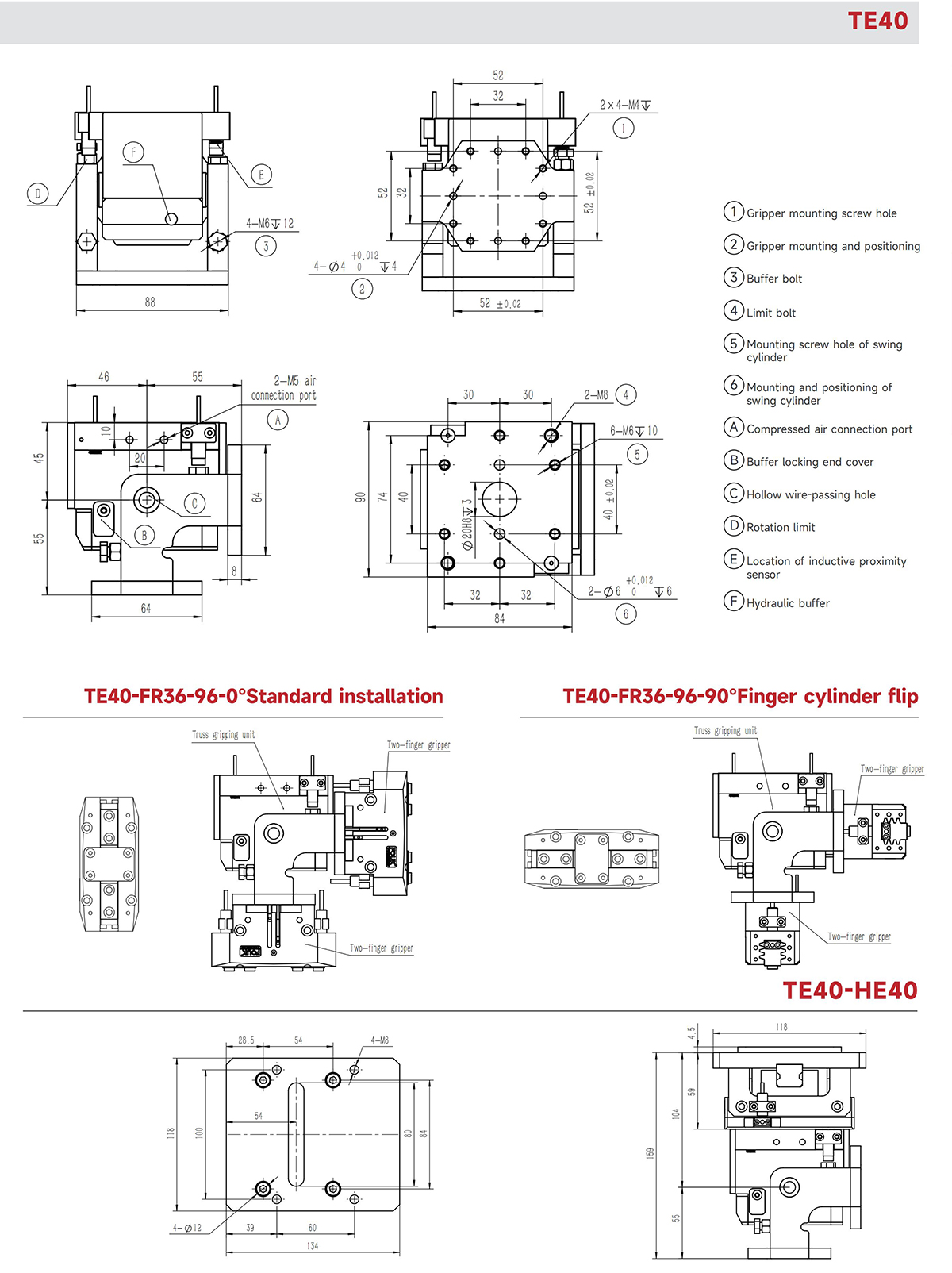

| TE40 Rotating unit | FR36-96 Gripper | ||||
| Product attributes | Parameter Value | Unit | Product attributes | Parameter Value | Unit |
| Effective torque | 2*P | N·m | Single stroke | 8 | mm |
| Workpiece weight | 1.5 | kg | Product weight | 0.5 | kg |
| Product weight | 2.1 | kg | Maximum allowable gripping distance | 110 | mm |
| Rotation time | 0.6~1.1 | sec | Specification of air connection port | M5 | |
| Air connection port of air distribution pipe | M5 | Theoretical maximum gripping force:opening/closing | 100P/92P | N | |
| Buffer unit | M12 × 1-10 | Opening/closing time | 0.035/0.035 | s | |
| Repeated positioning accuracy | ± 0.05 | ° | Repeated gripping accuracy | ± 0.02 | mm |
| Operating air pressure | 4~6 | bar | Operating air pressure range | 3~8 | bar |
| Operating temperature range | -5~60 | °C | Temperature range of application | -5~60 | °C |
| IP rating | 65 | IP rating | 45 |
| Inductive proximity sensor | Inductive proximity sensor | Magnetic proximity sensor | |||||
| Used for TG | IPSD-2NS-0823-L3 | Inductive,NPN,3-core3m | Used for gripper | IPSD-2NS-0823-L3 | Inductive,NPN,3-core3m | D-M9NAL | Magnetic,NPN,3-core3m |
| IPSD-2PS-0823-L3 | Inductive,PNP,3-core3m | IPSD-2PS-0823-L3 | Inductive,PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m | ||
*It is recommended to use two sensors for each rotating unit, and it is recommended to use two sensors for each gripper. For details, see the sensor appendix.

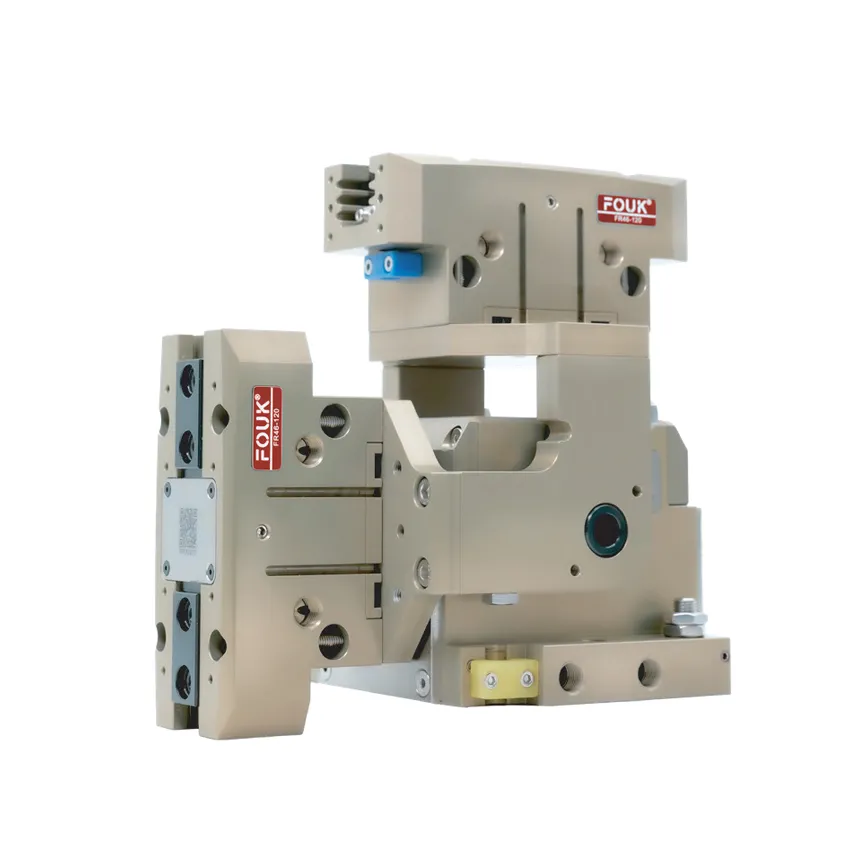

The pneumatic gear and rack structure is adopted to realize swing for 90°and becomes an important module for loading and blanking of the machine tool truss in coordination with the grippers. By adjusting the structure and the configuration, it adapts to different application scenarios.
