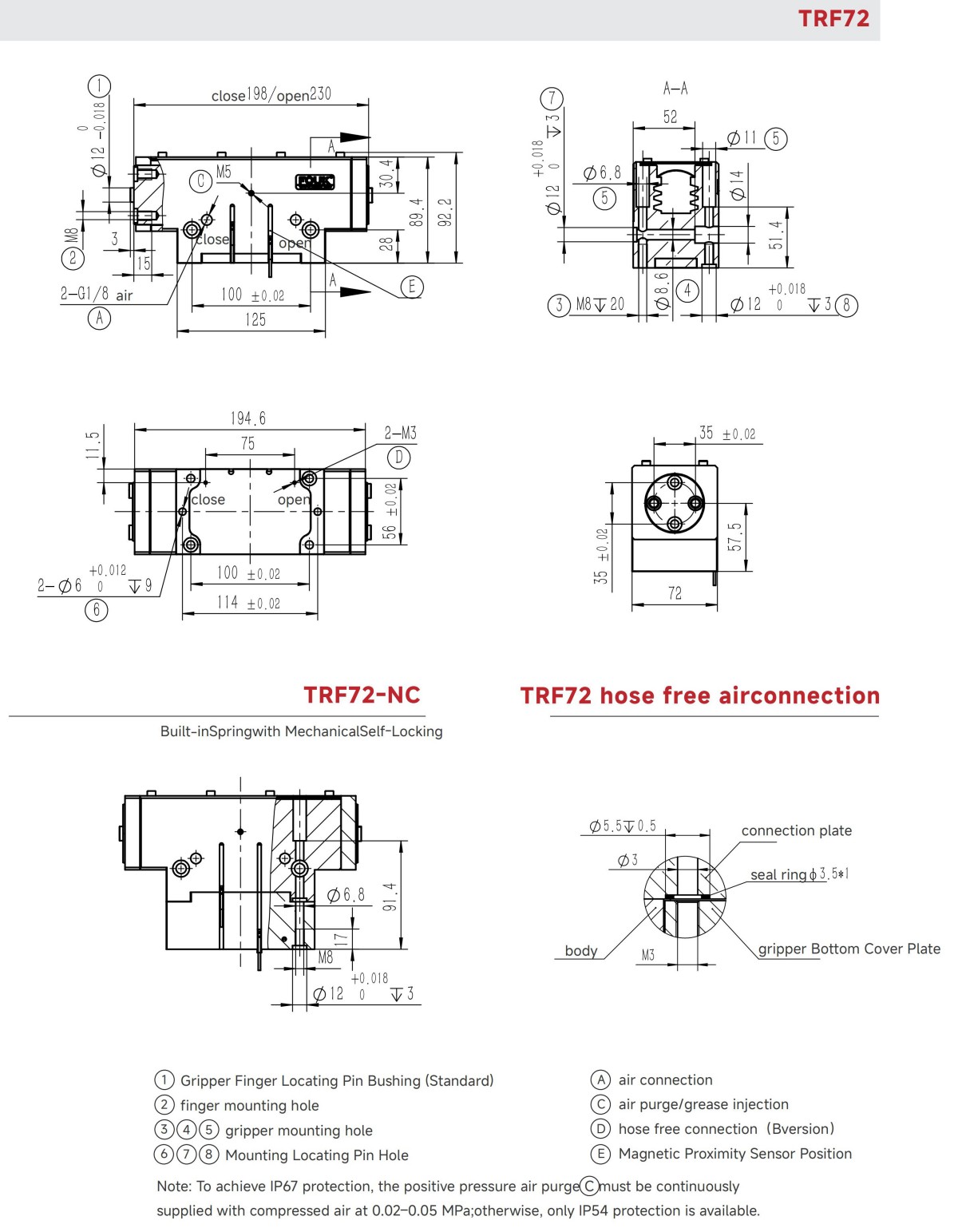

| specification | TRF72 | TRF72-NC | Unit |
| stroke per jaw | 16 | 16 | mm |
| product weight | 3.7 | 4.4 | kg |
| max gripping distance | 160 | 160 | mm |
| Theoretical Max. Gripping Force:Opening/Closing | 340P/316P | -/316P | N |
| Air Consumptionper Opening-Closing Cycle | 0.95 | 1.55 | L |
| Min.spring force | / | 540 | N |
| air purge allowable pressure | 0.2~0.5 | 0.2~0.5 | bar |
| work piece weight | 7.8 | 7.8 | kg |
| opening/cosing time | 0.1/0.1 | 0.2/0.1 | s |
| max per finger weight/kg | 3 | air connection feature | G1/8 |
| repeat accuracy/mm | ± 0.03 | temperature range/°C | -5~60 |
| air pressure range/bar | 3~8 | IP class | 67 |
| air purge working can reach IP67 otherwiseIP54 | |||

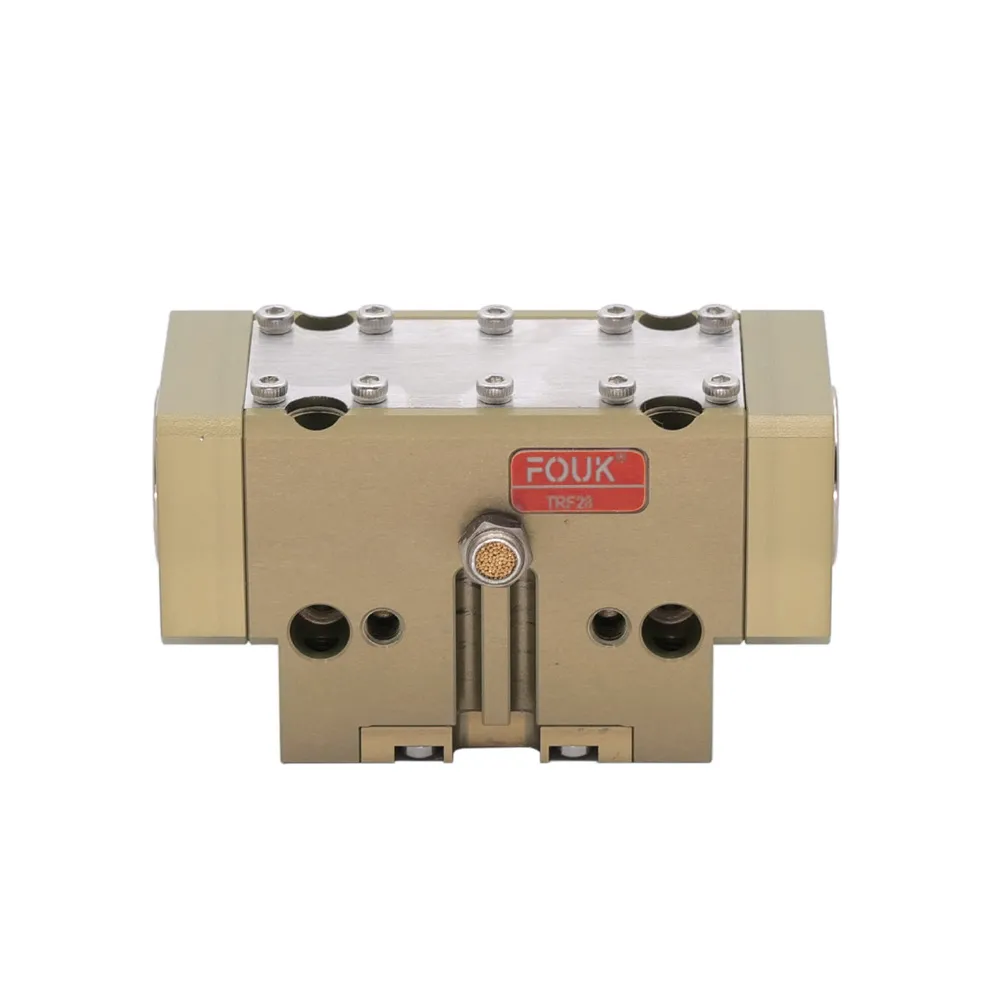

IP67 High-Protection Gripper features a composite sealing structure, offering the highest dust protection level and enabling short-term immersion in water.The toothed rail ensures strong load-bearing capacity.
