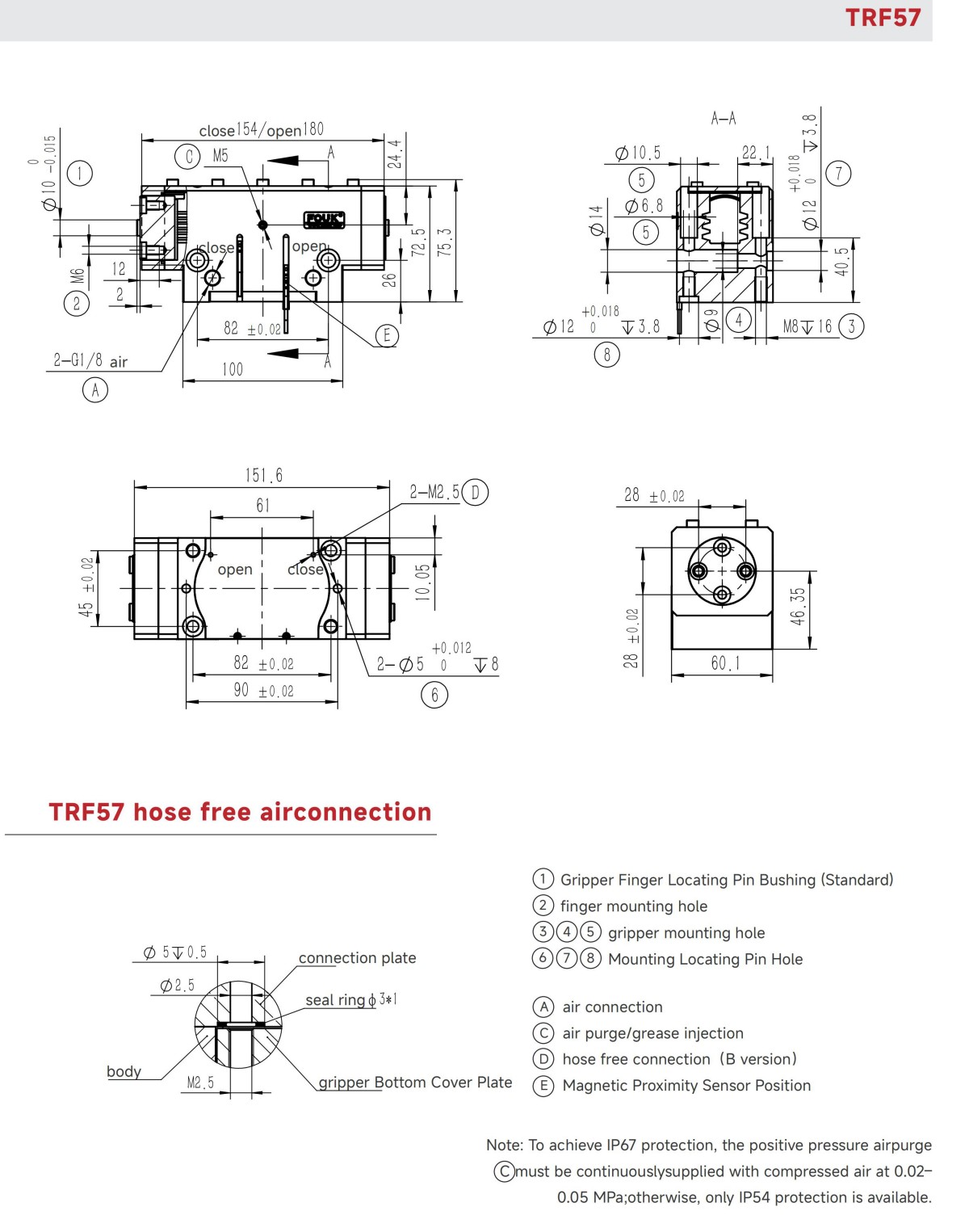

| specification | TRF57 | Unit |
| stroke per jaw | 13 | mm |
| product weight | 2.1 | kg |
| max gripping distance | 80 | mm |
| Theoretical Max. Gripping Force:Opening/Closing | 214P/198P | N |
| Air Consumptionper Opening-Closing Cycle | 0.5 | L |
| air purge allowable pressure | 0.2–0.5 | bar |
| work piece weight | 5 | kg |
| opening/cosing time | 0.09/0.09 | s |
| max per finger weight/kg | 1.7 | air connection feature | G1/8 |
| repeat accuracy/mm | ± 0.02 | temperature range/°C | –5~60 |
| air pressure range/bar | 3–8 | IP class | 67 |
air purge working can reach IP67 otherwiseIP54
IP67 High-Protection Gripper features a composite sealing structure, offering the highest dust protection level and enabling short-term immersion in water.The toothed rail ensures strong load-bearing capacity.
