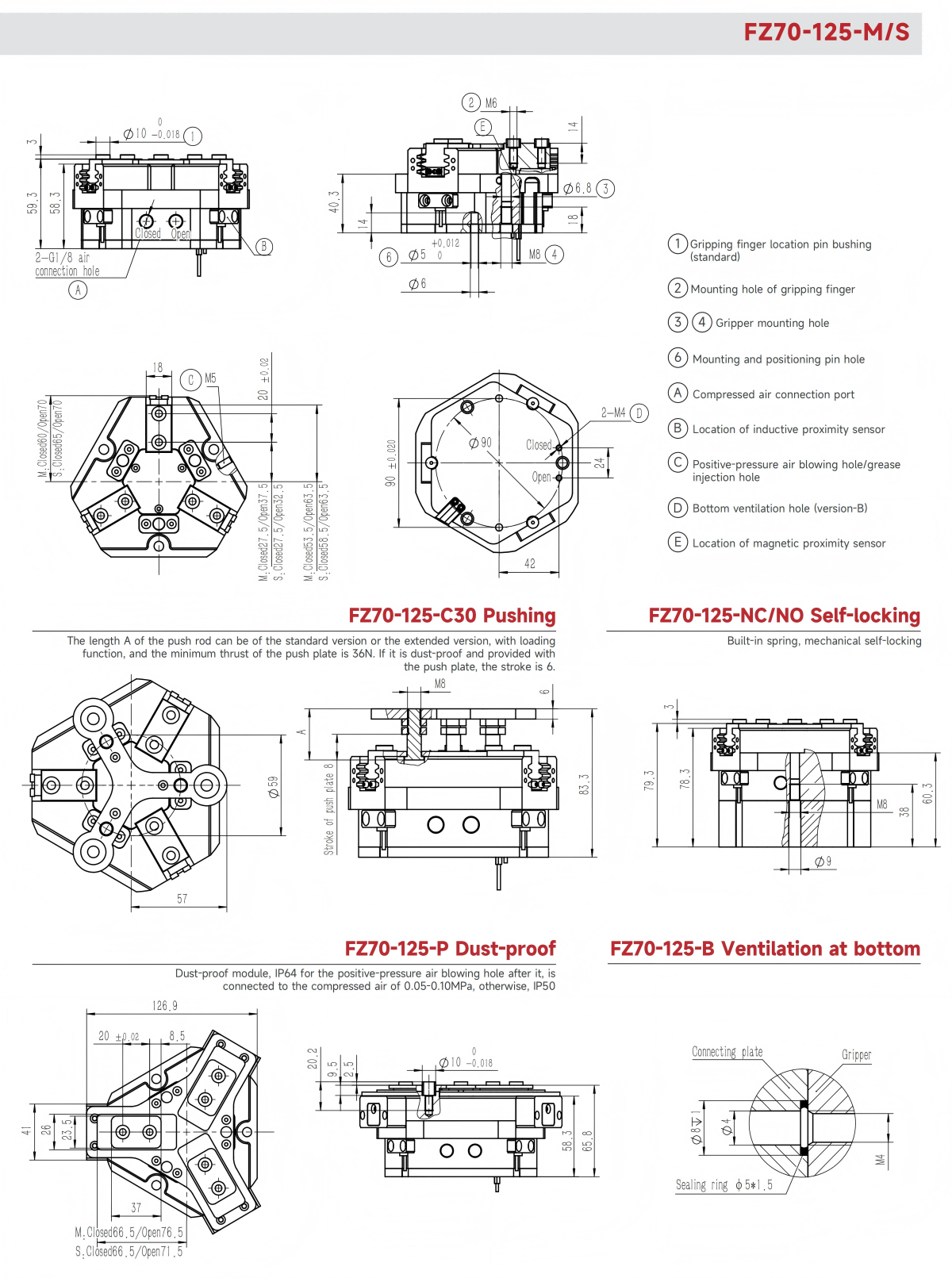

FZ70-125-M
S: Short stroke
B: Ventilation at bottom
C30/C40: Length of push rod 30mm/40mm
P: Dust cover IP64
NO/NC: Self-locking form
H: High temperature resistance
| Product attributes | FZ70-125 | FZ70-125-NO | FZ70-125-NC | FZ70-125-S | FZ70-125-S-NO | FZ70-125-S-NC | Unit |
| Single stroke | 10 | 10 | 10 | 5 | 5 | 5 | mm |
| Product weight | 1.6 | 2.2 | 2.3 | 1.7 | 2.3 | 2.4 | kg |
| Maximum allowable gripping distance | 145 | 145 | 145 | 125 | 125 | 125 | mm |
| Theoretical maximum gripping force: opening/closing | 310P/280P | 310P/- | -/280P | 650P/600P | 650P/- | -/600P | N |
| Gas consumption of single opening and closing cycle | 0.6 | 0.9 | 0.9 | 0.6 | 0.9 | 0.9 | L |
| Minimum Spring Locking Force | 720 | 720 | 1500 | 1500 | N | ||
| Workpiece weight | 9 | 9 | 9 | 19.5 | 19.5 | 19.5 | kg |
| Opening/closing time | 0.1/0.1 | 0.1/0.2 | 0.2/0.1 | 0.1/0.1 | 0.1/0.2 | 0.2/0.1 | s |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | |||||||
| Maximum allowable single-finger gripping weight/kg | 1 | Specification of air connection port | G1/8 | ||||
| Repeated gripping accuracy/mm | ± 0.02 | Temperature range of application/°C | -5~60 | ||||
| Operating air pressure range/bar | 3~8 | IP rating | 40 | ||||
| Inductive proximity sensor | Magnetic proximity sensor | ||
| IPSD-2NS-0823-L3 | inductive, NPN, 3-core3m | D-M9NAL | Magnetic, NPN, 3-core3m |
| IPSD-2PS-0823-L3 | Inductive, PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of twopositions,see thesensor appendix.
