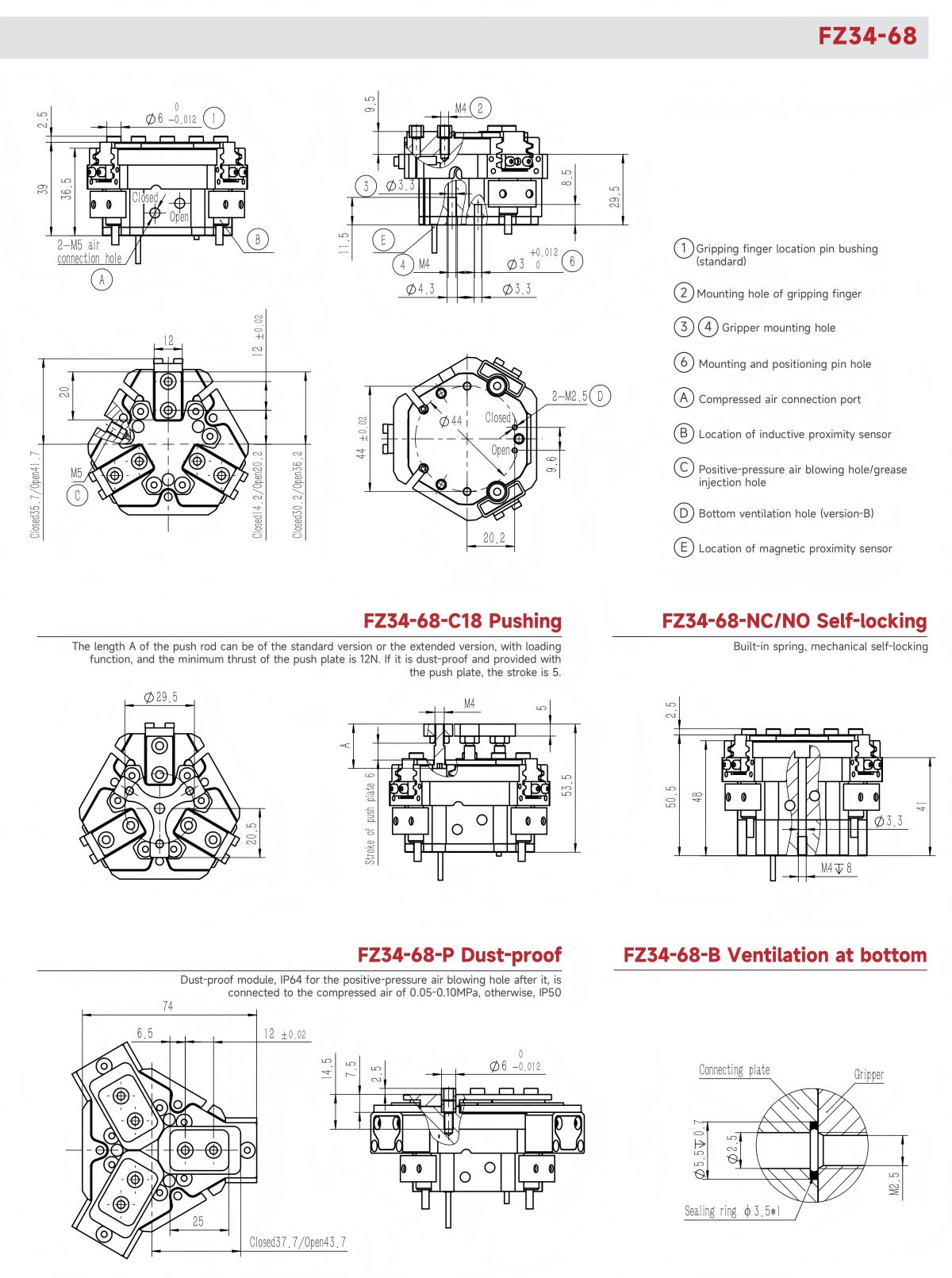

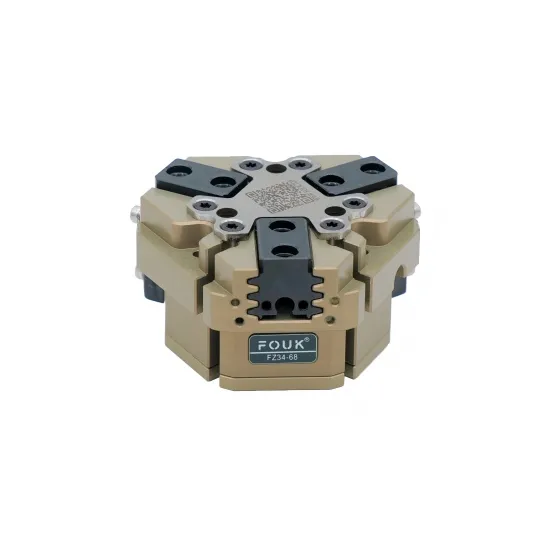

FZ34-68
B: Ventilation at bottom
C18/C26: Length of push rod 18.5mm/26.5mm
P: Dust cover IP64
NO/NC: Self-locking form
H: High temperature resistance
| Product attributes | FZ34-68 | FZ34-68-NO | FZ34-68-NC | Unit |
| Single stroke | 6 | 6 | 6 | mm |
| Product weight | 0.35 | 0.41 | 0.42 | kg |
| Maximum allowable gripping distance | 70 | 70 | 70 | mm |
| Theoretical maximum gripping force:opening/closing | 76P/69P | 76P/- | -/69P | N |
| Gas consumption of single opening and closing cycle | 0.09 | 0.13 | 0.11 | L |
| Minimum Spring Locking Force | 140 | 140 | N | |
| Workpiece weight | 1.7 | 1.7 | 1.7 | kg |
| Opening/closing time | 0.04/0.04 | 0.03/0.05 | 0.05/0.03 | s |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | ||||
| Maximum allowable single-finger gripping weight/kg | 0.25 | Specification of air connection port | M5 | |
| Repeated gripping accuracy/mm | ± 0.02 | Temperature range of application/°C | -5~60 | |
| Operating air pressure range/bar | 3~8 | IP rating | 40 | |
| Inductive proximity sensor | Magnetic proximity sensor | ||
| IPSD-2NS-0818-L3 | inductive, NPN, 3-core3m | D-M9NAL | Wagnetic, NPN, 3-core3m |
| IPSD-2PS-0818-L3 | Inductive, PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of twopositions,see thesensor appendix.
