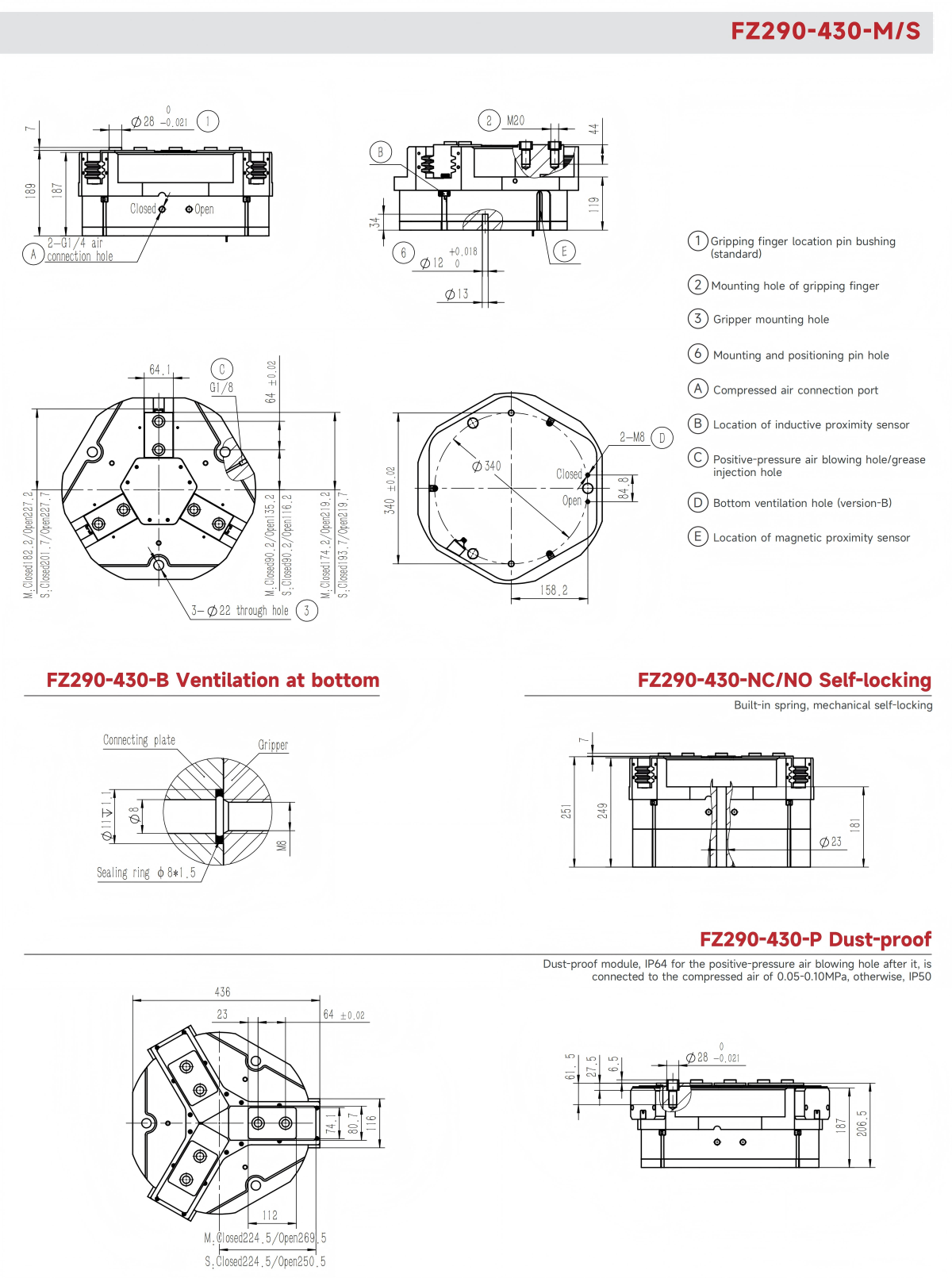

FZ290-430-M
S: Short stroke
B: Ventilation at bottom
P: Dust cover IP64
NO/NC: Self-locking form
H: High temperature resistance
| Product attributes | FZ290-430 | FZ290-430-NO | FZ290-430-NC | FZ290-430-S | FZ290-430-S-NO | FZ290-430-S-NC | Unit |
| Single stroke | 45 | 45 | 45 | 26 | 26 | 26 | mm |
| Product weight | 70 | 94 | 81 | 72 | 96 | 83 | kg |
| Maximum allowable gripping distance | 260 | 260 | 260 | 210 | 210 | 210 | mm |
| Theoretical maximum gripping force: opening/closing | 4400P/2400P | 4400P/- | -/4000P | 8000P/7700P | 8000P/- | -/7700P | N |
| Gas consumption of single opening and closing cycle | 38 | 49 | 50 | 38 | 49 | 50 | L |
| Minimum Spring Locking Force | 5300 | 5200 | 9600 | 9400 | N | ||
| Workpiece weight | 130 | 130 | 130 | 220 | 220 | 220 | kg |
| Opening/closing time | 2.2/2.2 | 1.9/4.6 | 3/1.9 | 2.2/2.2 | 1.9/4.6 | 3/1.9 | s |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | |||||||
| Maximum allowable single-finger gripping weight/kg | 15 | Specification of air connection port | G1/4 | ||||
| Repeated gripping accuracy/mm | ± 0.05 | Temperature range of application/°C | -5~60 | ||||
| Operating air pressure range/bar | 3~8 | IP rating | 40 | ||||
| Inductive proximity sensor | Magnetic proximity sensor | ||
| IPSD-2NS-0848-L3 | inductive, NPN, 3-core3m | D-M9NAL | Magnetic, NPN, 3-core3m |
| IPSD-2PS-0848-L3 | Inductive, PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of twopositions,see thesensor appendix.
