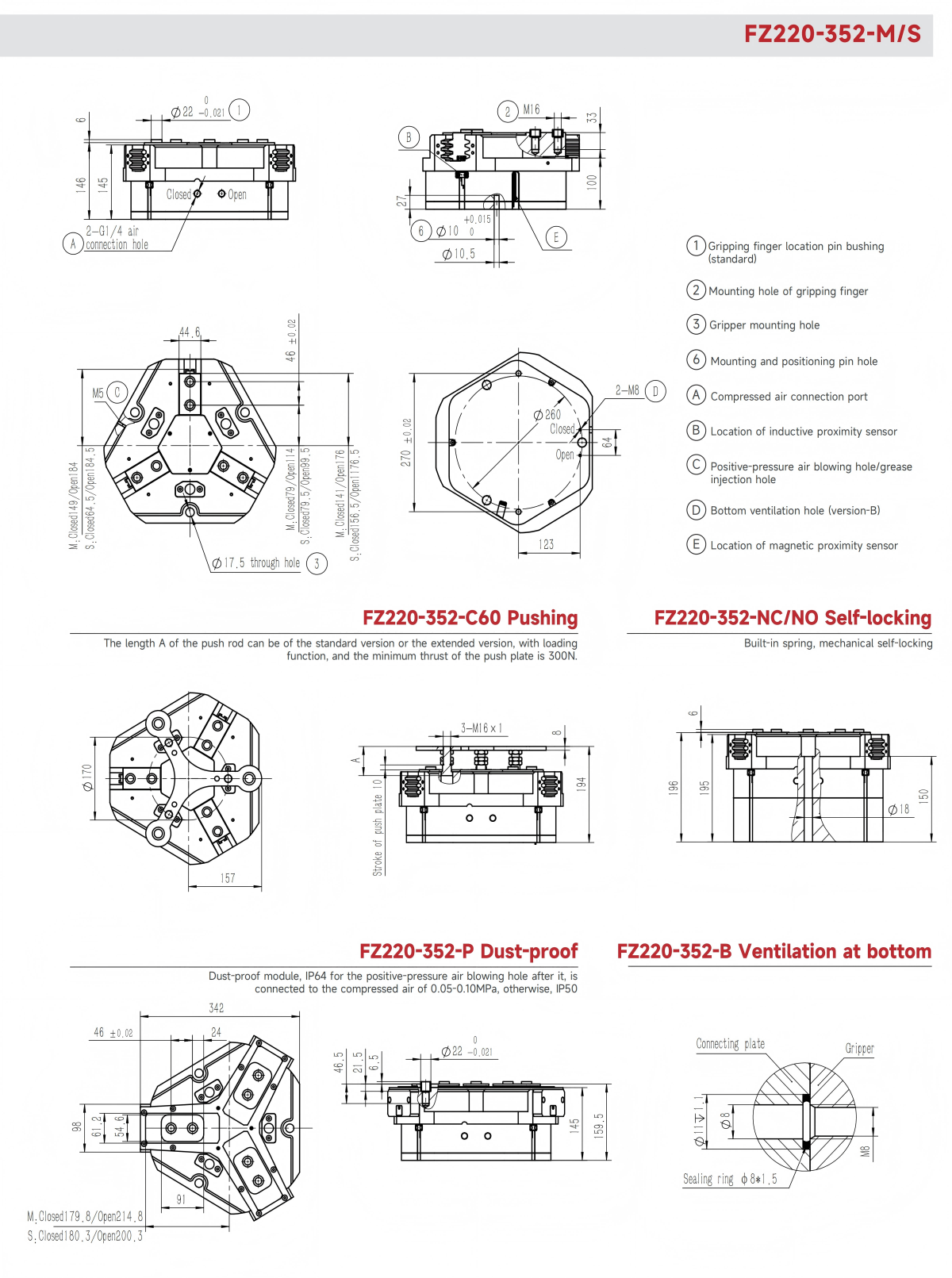

FZ220-352-M
S: Short stroke
B: Ventilation at bottom
C60/C90: Length of push rod 60mm/90mm
P: Dust cover IP64
NO/NC: Self-locking form
H: High temperature resistance
| Product attributes | FZ220-352 | FZ220-352-NO | FZ220-352-NC | FZ220-352-S | FZ220-352-S-NO | FZ220-352-S-NC | Unit |
| Single stroke | 35 | 35 | 35 | 20 | 20 | 20 | mm |
| Product weight | 34 | 46 | 40 | 34 | 46 | 40 | kg |
| Maximum allowable gripping distance | 260 | 260 | 260 | 220 | 220 | 220 | mm |
| Theoretical maximum gripping force: opening/closing | 2500P/2400P | 2500P/- | -/2400P | 4400P/4200P | 4400P/- | -/4200P | N |
| Gas consumption of single opening and closing cycle | 17 | 23 | 23 | 17 | 23 | 23 | L |
| Minimum Spring Locking Force | 3800 | 3600 | 6700 | 6400 | N | ||
| Workpiece weight | 80 | 80 | 80 | 130 | 130 | 130 | kg |
| Opening/closing time | 1.3/1.3 | 1.2/2 | 2.5/1.2 | 1.3/1.3 | 1.2/2 | 2.5/1.2 | s |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | |||||||
| Maximum allowable single-finger gripping weight/kg | 12 | Specification of air connection port | G1/4 | ||||
| Repeated gripping accuracy/mm | ± 0.05 | Temperature range of application/°C | -5~60 | ||||
| Operating air pressure range/bar | 3~8 | IP rating | 40 | ||||
| Inductive proximity sensor | Magnetic proximity sensor | ||
| IPSD-2NS-0848-L3 | inductive, NPN, 3-core3m | D-M9NAL | Magnetic, NPN, 3-core3m |
| IPSD-2PS-0848-L3 | Inductive, PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of twopositions,see thesensor appendix.
Payment Methods:
50% shall be paid by T/T in advance.50%balance paid before machine loading at the factory.
After-sales service
Your benefits
In the condition of proper usage and non man-made damage, the contractual warranty should be 24 months since you receive the equipments. If it is approved to be quality issue by both parties, then the seller shall provide new spare parts or new one as replacement and fast courier shall be taken by FOUK.
Return ship service please contact your sales represent.
Our Service
Online Guided Repair or Repair by Sending Back to FOUK Production Base
Replacement Service
Detailed Maintenance Recommendations
Real-time Repair Feedback
24-Hour General Manager Hotline
Your correct contact person for after sales service
