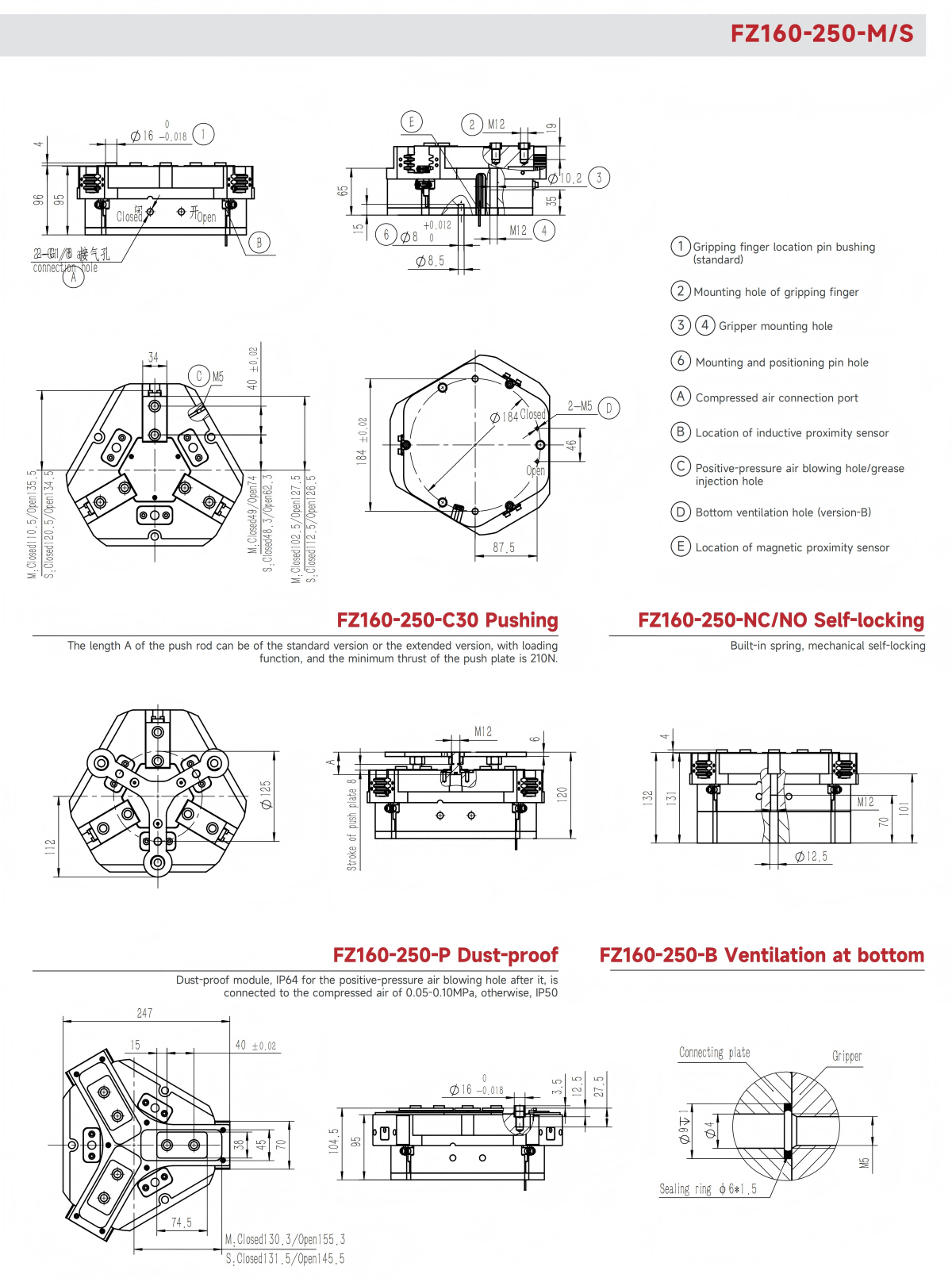

FZ160-250-M
S: Short stroke
B: Ventilation at bottom
C30/C55: Length of push rod 30mm/55mm
P: Dust cover IP64
NO/NC: Self-locking form
H: High temperature resistance
| Product attributes | FZ160-250 | FZ160-250-NO | FZ160-250-NC | FZ160-250-S | FZ160-250-S-NO | FZ160-250-S-NC | Unit |
| Single stroke | 25 | 25 | 25 | 14 | 14 | 14 | mm |
| Product weight | 10.5 | 13.5 | 13.5 | 10.5 | 13.5 | 13.5 | kg |
| Maximum allowable gripping distance | 240 | 240 | 240 | 200 | 200 | 200 | mm |
| Theoretical maximum gripping force: opening/closing | 1300P/1250P | 1300P/- | -/1250P | 2260P/2170P | 2260P/- | -/2170P | N |
| Gas consumption of single opening and closing cycle | 5 | 7.2 | 7.2 | 5 | 7.2 | 7.2 | L |
| Minimum Spring Locking Force | 3460 | 2000 | 3460 | 2000 | N | ||
| Workpiece weight | 39 | 39 | 39 | 67 | 67 | 67 | kg |
| Opening/closing time | 1.2/1.2 | 1/1.5 | 1.5/1 | 1.2/1.2 | 1/1.5 | 1.5/1 | s |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | |||||||
| Maximum allowable single-finger gripping weight/kg | 6 | Specification of air connection port | G1/8 | ||||
| Repeated gripping accuracy/mm | ± 0.02 | Temperature range of application/°C | -5~60 | ||||
| Operating air pressure range/bar | 3~8 | IP rating | 40 | ||||
| Inductive proximity sensor | Magnetic proximity sensor | ||
| IPSD-2NS-0831-L3 | inductive, NPN, 3-core3m | D-M9NAL | Magnetic, NPN, 3-core3m |
| IPSD-2PS-0831-L3 | Inductive, PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of twopositions,see thesensor appendix.
