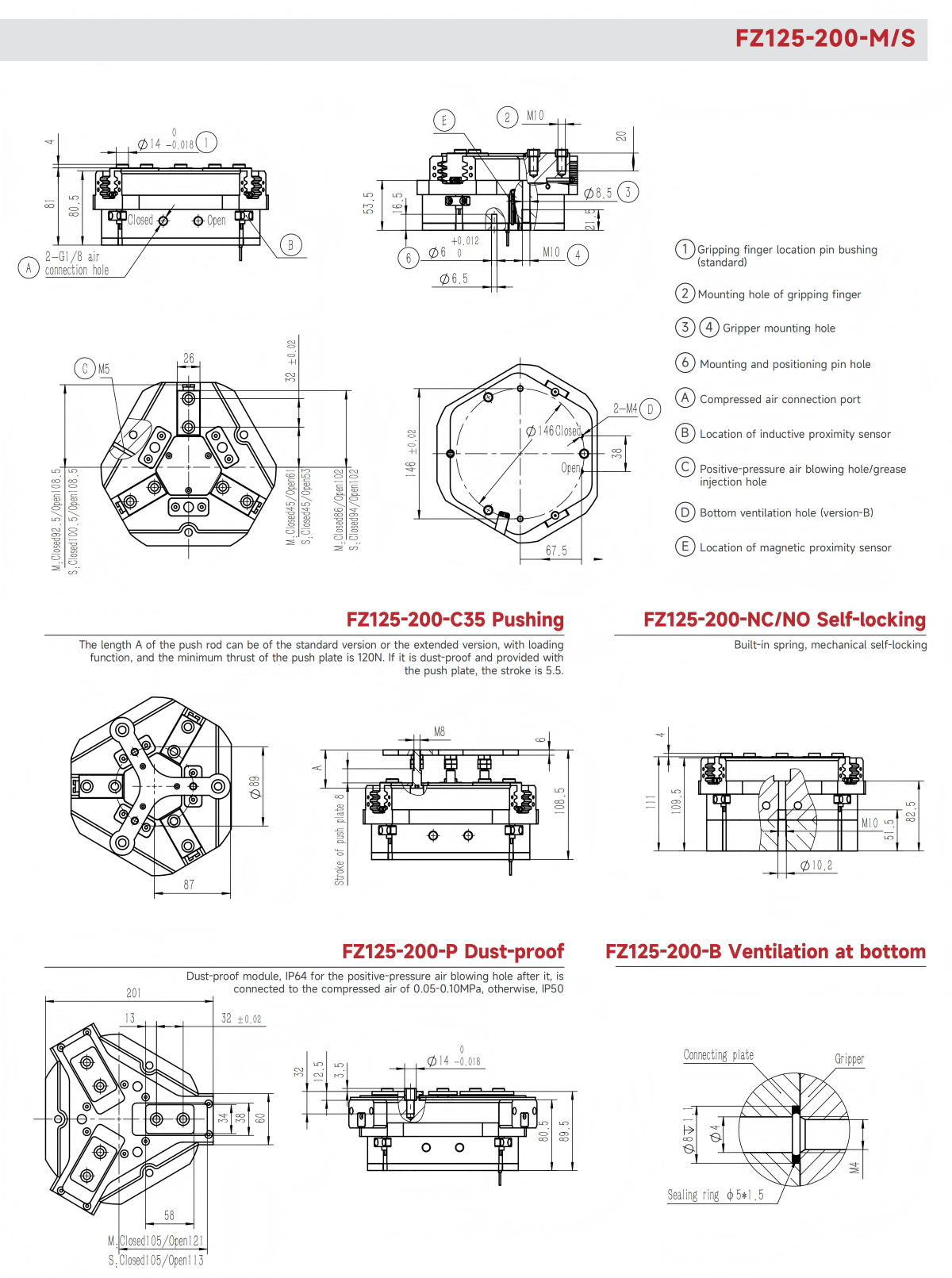

FZ125-200-S
S: Short stroke
B: Ventilation at bottom
C35/C43: Length of push rod 35mm/43mm
P: Dust cover IP64
NO/NC: Self-locking form
H: High temperature resistance
| Product attributes | FZ125-200 | FZ125-200-NO | FZ125-200-NC | FZ125-200-S | FZ125-200-S-NO | FZ125-200-S-NC | Unit |
| Single stroke | 16 | 16 | 16 | 8 | 8 | 8 | mm |
| Product weight | 6 | 8 | 8 | 6 | 8 | 8 | kg |
| Maximum allowable gripping distance | 220 | 220 | 220 | 190 | 190 | 190 | mm |
| Theoretical maximum gripping force: opening/closing | 1080P/1000P | 1080P/- | -/1000P | 1960P/1830P | 1960P/- | -/1830P | N |
| Gas consumption of single opening and closing cycle | 3.0 | 5.3 | 5.3 | 3.0 | 5.3 | 5.3 | L |
| Minimum Spring Locking Force | 1650 | 1650 | 3300 | 3300 | N | ||
| Workpiece weight | 30 | 30 | 30 | 55 | 55 | 55 | kg |
| Opening/closing time | 0.5/0.5 | 0.4/0.8 | 0.8/0.4 | 0.5/0.5 | 0.4/0.8 | 0.8/0.4 | s |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | |||||||
| Maximum allowable single-finger gripping weight/kg | 3.5 | Specification of air connection port | G1/8 | ||||
| Repeated gripping accuracy/mm | ± 0.03 | Temperature range of application/°C | -5~60 | ||||
| Operating air pressure range/bar | 3~8 | IP rating | 40 | ||||
| Inductive proximity sensor | Magnetic proximity sensor | ||
| IPSD-2NS-0831-L3 | inductive, NPN, 3-core3m | D-M9NAL | Magnetic, NPN, 3-core3m |
| IPSD-2PS-0831-L3 | Inductive, PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of twopositions,see thesensor appendix.
