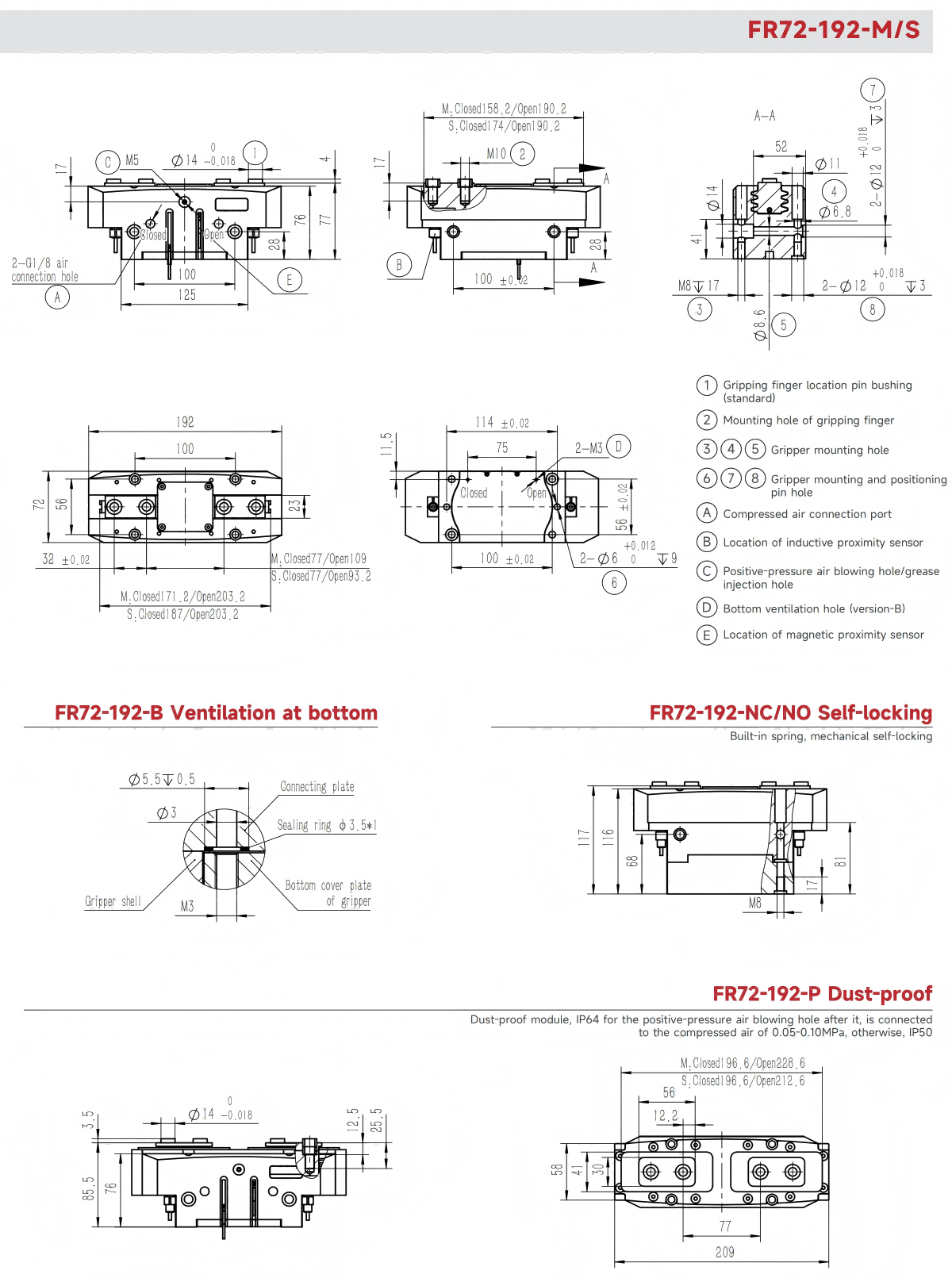

FR72-192-M
S: Short stroke
B: Ventilation at bottom
P: Dust cover IP64
NO/NC: Self-locking form
H: High temperature resistance
| Product attributes | FR72-192 | FR72-192-NO | FR72-192-NC | FR72-192-S | FR72-192-S-NO | FR72-192-S-NC | Unit |
| Single stroke | 16 | 16 | 16 | 8 | 8 | 8 | mm |
| Product weight | 2.75 | 3.45 | 3.5 | 2.8 | 3.5 | 3.55 | kg |
| Maximum allowable gripping distance | 180 | 180 | 180 | 170 | 170 | 170 | mm |
| Theoretical maximum gripping force: opening/closing | 340P/316P | 340P/- | -/316P | 670P/624P | 670P/- | -/624P | N |
| Minimum Spring Locking Force | 720 | 720 | 1400 | 1400 | N | ||
| Workpiece weight | 10 | 10 | 10 | 20 | 20 | 20 | kg |
| Opening/closing time | 0.1/0.1 | 0.1/0.2 | 0.2/0.1 | 0.1/0.1 | 0.1/0.2 | 0.2/0.1 | s |
| Gas consumption of single opening and closing cycle | 0.95 | 1.7 | 1.55 | 0.95 | 1.7 | 1.55 | L |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | |||||||
| Repeated gripping accuracy/mm | ± 0.03 | Specification of air connection port | G1/8 | ||||
| Operating air pressure range/bar | 3~8 | Temperature range of application/°C | -5~60 | ||||
| IP rating | 40 | Maximum allowable single-finger gripping weight/kg | 3.6 | ||||
| Inductive proximity sensor | Magnetic proximity sensor | ||
| IPSD-2NS-0823-L3 | inductive, NPN, 3-core3m | MZC2-1V7NS-FU0 | Wagnetic, NPN, 3-core3m |
| IPSD-2PS-0823-L3 | Inductive, PNP,3-core3m | MZC2-1V7PS-FUD | Magnetic,PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of twopositions,see thesensor appendix.
