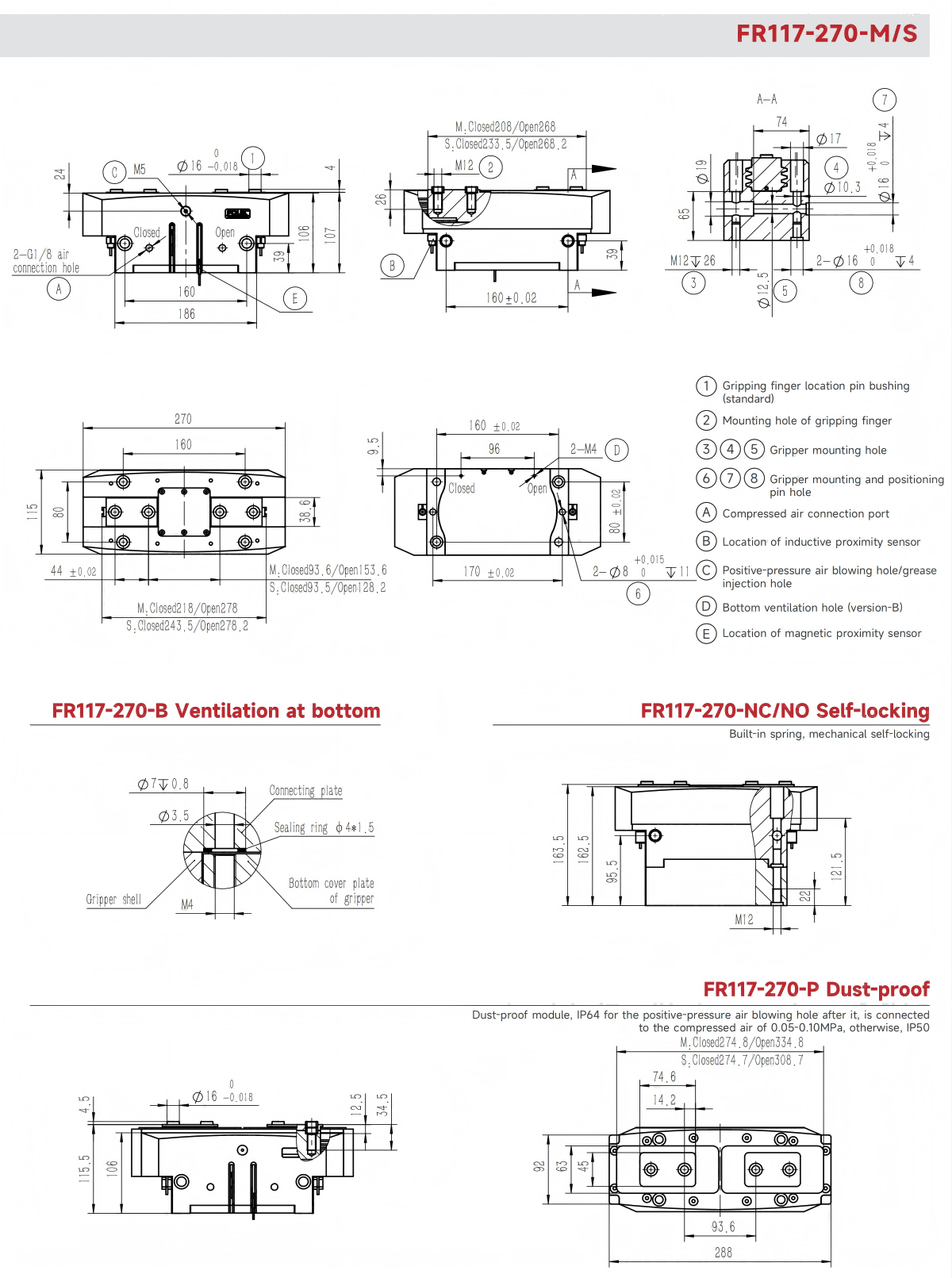

FR117-270-M
S: Short stroke
B: Ventilation at bottom
P: Dust cover IP64
NO/NC: Self-locking form
H: High temperature resistance
| Product attributes | FR117-270 | FR117-270-NO | FR117-270-NC | FR117-270-S | FR117-270-S-NO | FR117-270-S-NC | Unit |
| Single stroke | 30 | 30 | 30 | 17 | 17 | 17 | mm |
| Product weight | 8.5 | 10.4 | 10.2 | 8.7 | 10.6 | 10.4 | kg |
| Maximum allowable gripping distance | 240 | 240 | 240 | 220 | 220 | 220 | mm |
| Theoretical maximum gripping force: opening/closing | 754P/714P | 754P/- | -/714P | 1300P/1230P | 1300P/- | -/1230P | N |
| Minimum Spring Locking Force | 1300 | 1300 | 2200 | 2200 | N | ||
| Workpiece weight | 25 | 25 | 25 | 43 | 43 | 43 | kg |
| Opening/closing time | 0.5/0.5 | 0.45/0.9 | 0.9/0.45 | 0.5/0.5 | 0.45/0.9 | 0.9/0.45 | s |
| Gas consumption of single opening and closing cycle | 4 | 6.6 | 6.4 | 4 | 6.6 | 6.4 | L |
| P: Compressed air pressure [bar] Gas consumption: volume of gas consumed at normal pressure (0.5MPa) | |||||||
| Repeated gripping accuracy/mm | ± 0.04 | Specification of air connection port | G1/8 | ||||
| Operating air pressure range/bar | 3~8 | Temperature range of application/°C | -5~60 | ||||
| IP rating | 40 | Maximum allowable single-finger gripping weight/kg | 9 | ||||
| Inductive proximity sensor | Magnetic proximity sensor | ||
| IPSD-2NS-0831-L3 | Inductive, NPN, 3-core3m | D-M9NAL | Magnetic, NPN, 3-core3m |
| IPSD-2PS-0831-L3 | Inductive, PNP,3-core3m | D-M9PAL | Magnetic,PNP,3-core3m |
*Two sensors are required for each gripper. For the detailed monitoring of twopositions,see thesensor appendix.

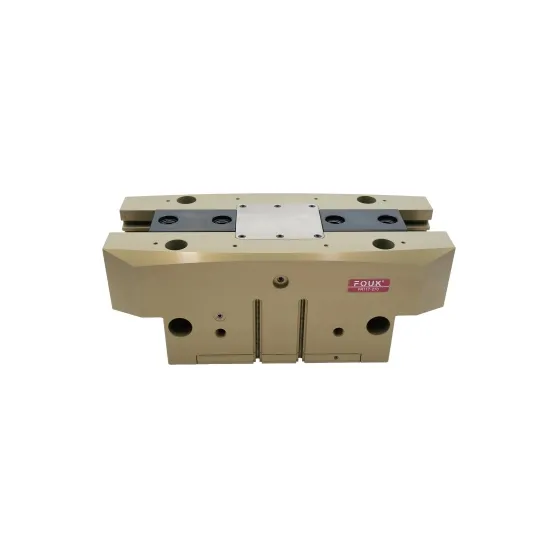

For the standard pneumatic two-finger gripper, FOUK adopts high-strength materials and the surface treatment process of strong wear resistance, which ensures the reliability and service life of the product in use. Meanwhile, it has abundant optional interfaces to adapt to the complex working conditions of various industries.
