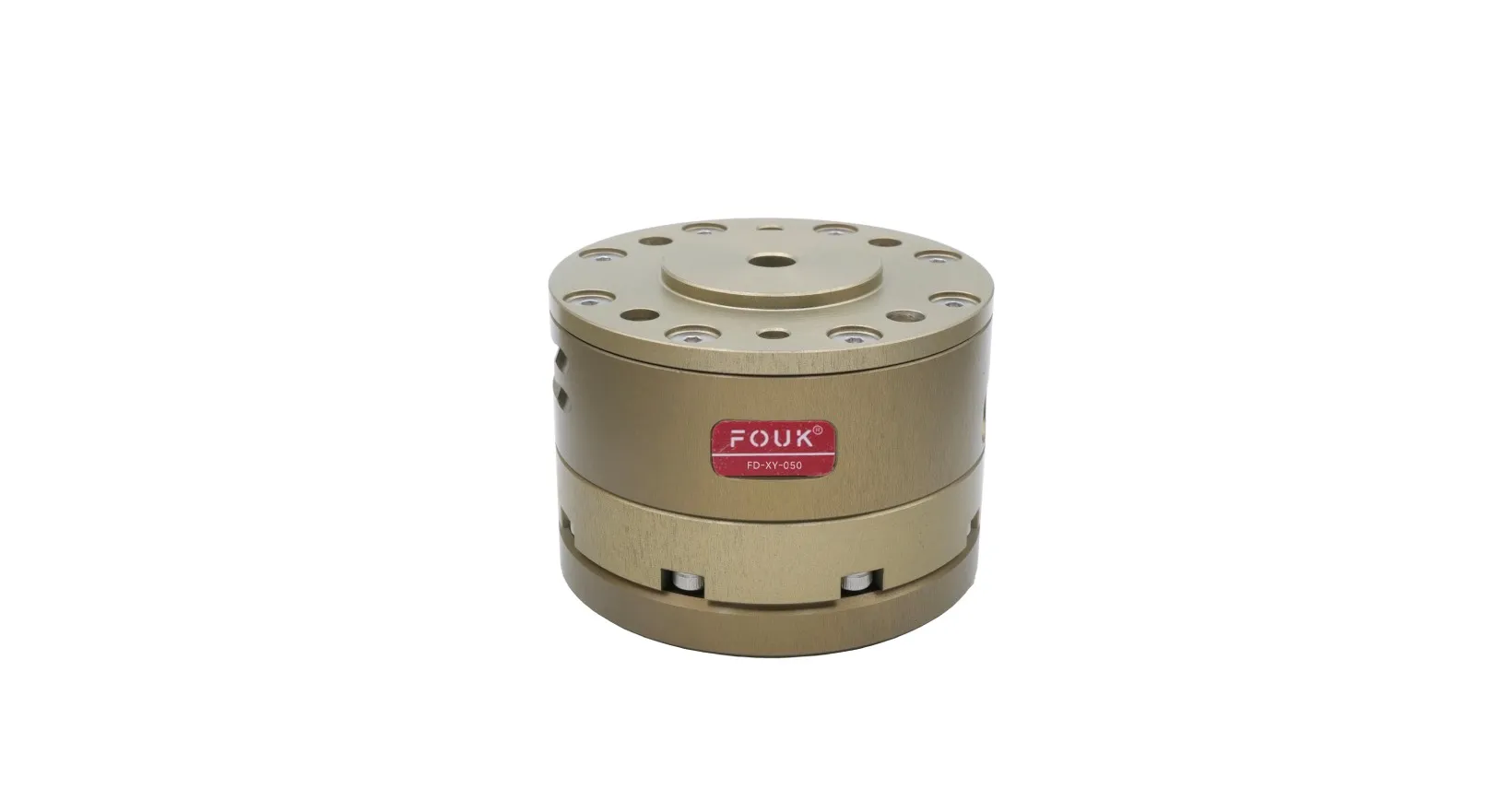

FD-XY-050
Parameters and Specifications
| Specifications | FD-XY-050 | FD-XY-050-P | Unit |
| Weight | 0.5 | 0.5 | kg |
| XY compensation | ±2.5 | ±2.5 | mm |
| Deflection rotator | ±12 | ±12 | ° |
| Operating pressure range | 3～8 | 3～8 | bar |
| Locking force | 39P | 39P | N |
| Repeat accuracy | 0.1 | 0.1 | mm |
| Max. load force locked | 30P | 30P | N |
| Recommended handling weight, horizontal | 4 | 4 | kg |
| Recommended handling weight, vertical | 6 | 6 | kg |
| Ambient temperature | 5-60 | 5-60 | °C |
| Air connection specification | M5 | M5 | |
| Position memory piston force | / | 23P | N |
| Max. radial force, position storage | / | 9P | N |
| Recommended handlingweight position storage | / | 1.5 | kg |

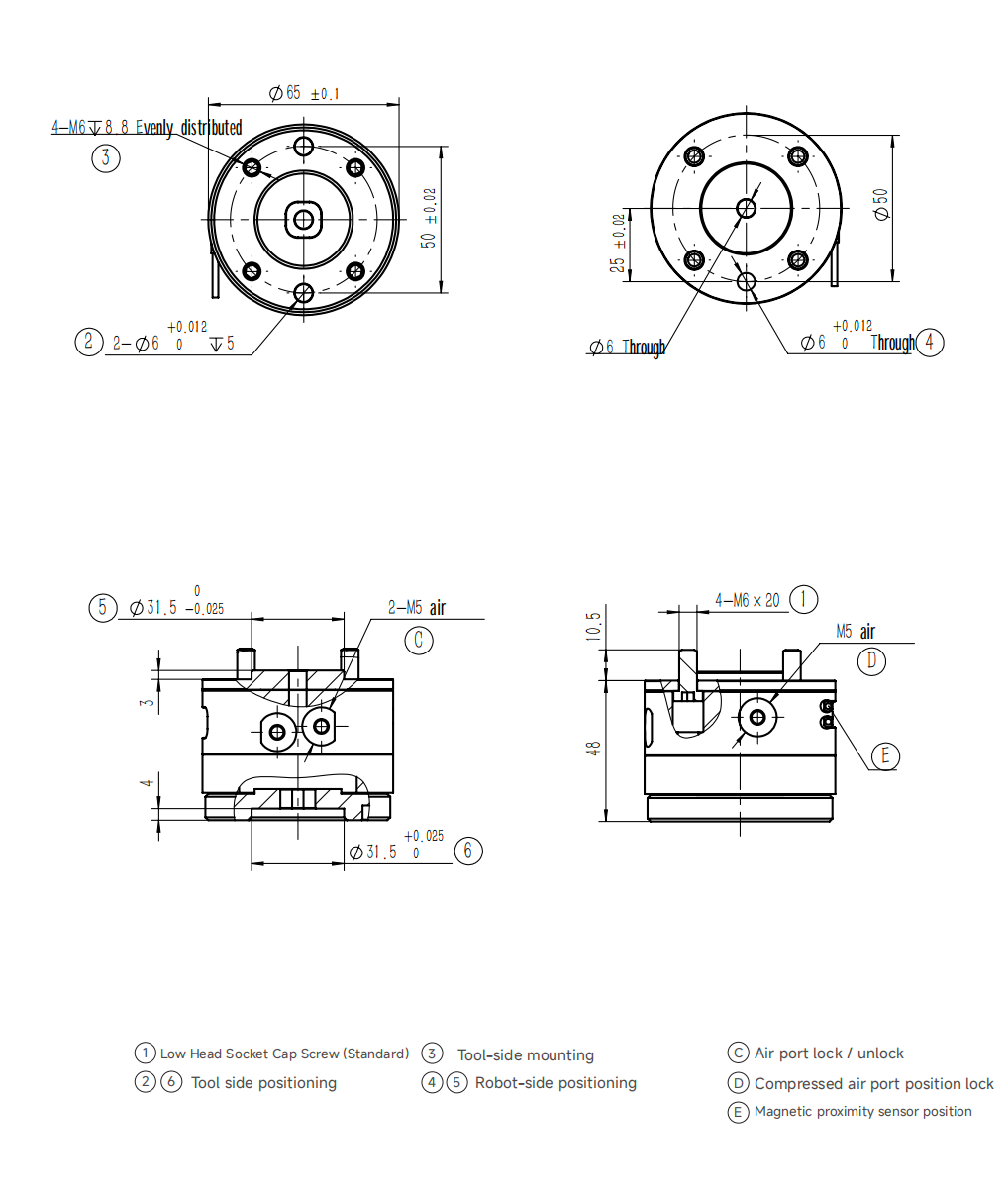

Engineering Graphics
