FD-XY-080
Parameters and Specifications
| Specifications | FD-XY-080 | FD-XY-080-P | Unit |
| Weight | 1.5 | 1.5 | kg |
| XY compensation | ±4 | ±4 | mm |
| Deflection rotator | ±16 | ±16 | " |
| Operating pressure range | 3~8 | 3~8 | bar |
| Locking force | 93P | 93P | N |
| Repeat accuracy | 0.1 | 0.1 | mm |
| Max. load force locked | 62P | 62P | N |
| Recommended handling weight, horizontal | 10 | 10 | kg |
| Recommended handling weight, vertical | 15 | 15 | kg |
| Ambient temperature | 5~60 | 5~60 | ℃ |
| Air connection specification | M5 | M5 | |
| Position memory piston force | / | 100P | N |
| Max. radial force, position storage | / | 29P | N |
| Recommended handlingweight position storage | / | 4 | kg |

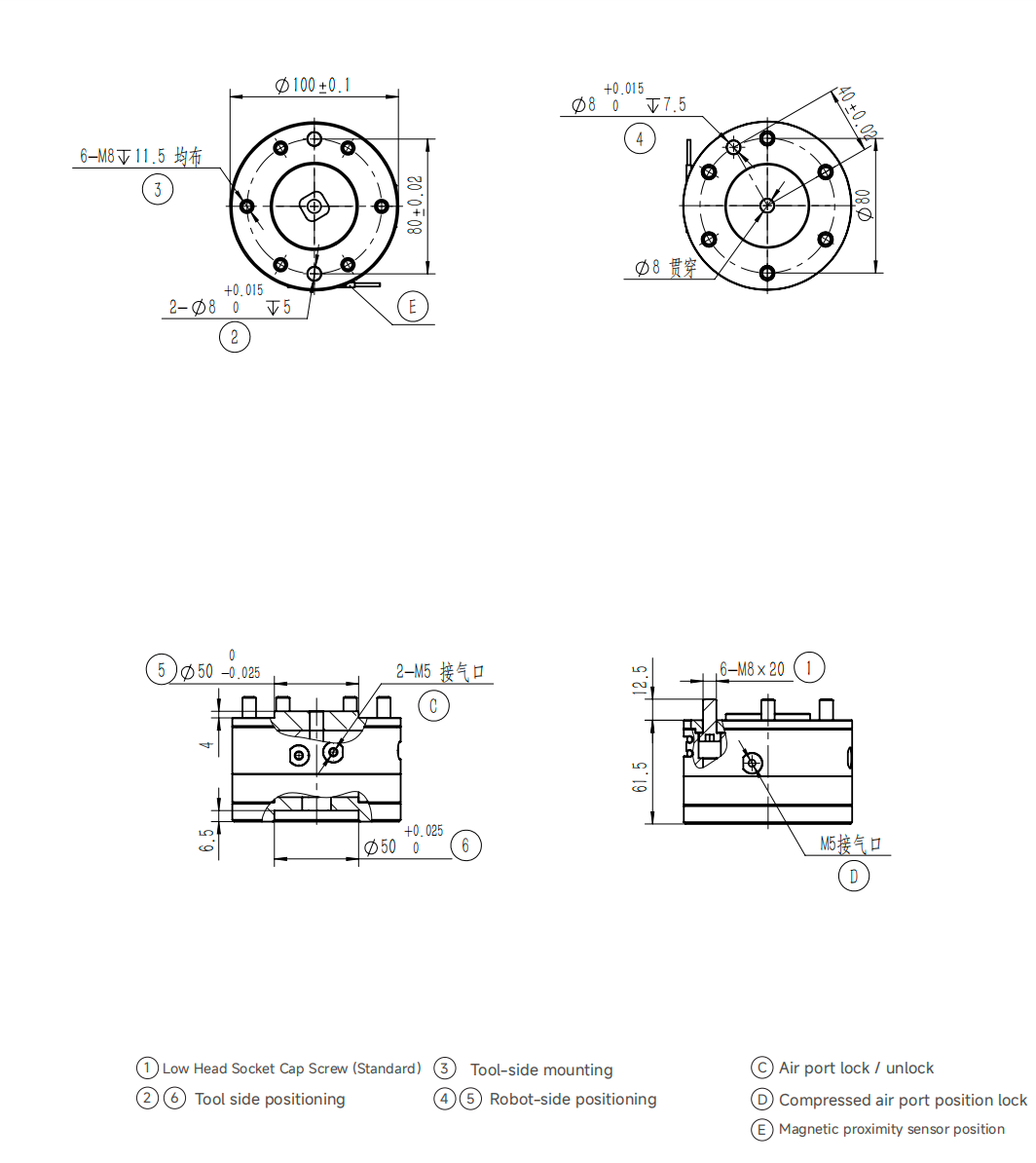

Engineering Graphics
Download
FD-XY-80.STEP
