F20-160
Parameters and Specifications
| Specifications | F20-160-XYZ-0 | F20-160-XYZ-P | F20-160-XY-0 | F20-160-XY-P | F20-160-Z-0 | Unit |
| Weight | 14.5 | 14.5 | 10.5 | 10.5 | 11.5 | kg |
| XY compensation | ±10 | ±10 | ±10 | ±10 | mm | |
| Z compensation | 14 | 14 | 14 | mm | ||
| Recommended handling weight, vertical | 60 | 60 | 60 | 60 | 60 | kg |
| Recommended handling weight, horizontal | 40 | 40 | 40 | 40 | 40 | kg |
| Locking Force | 1800 | 1800 | 1800 | 1800 | N | |
| Position memory piston force | 2900 | 2900 | N | |||
| Max. radial force, position storage | 309 | 309 | N | |||
| Piston Force (Z-axis) | 1900 | 1900 | 1900 | N | ||
| Min. spring force | 640 | 640 | 640 | N | ||
| Ambient temperature range/°C | 5~60 | 5~60 | 5~60 | 5~60 | 5~60 | |
| Operating pressure range/bar | 3~8 | 3~8 | 3~8 | 3~8 | 3~8 | |
| Robot-side connection | ISO 9409-1-160-6-M10 | ISO 9409-1-160-6-M10 | ISO 9409-1-160-6-M10 | ISO 9409-1-160-6-M10 | ISO 9409-1-160-6-M10 | |
| Air connection specification | GV8 | GV8 | GV8 | GV8 | GV8 | |
| Repeataccuracy/mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | |
| Tool-side connection | ISO 9409-1-160-6-M10 | ISO 9409-1-160-6-M10 | ISO 9409-1-160-6-M10 | ISO 9409-1-160-6-M10 | ISO 9409-1-160-6-M10 |

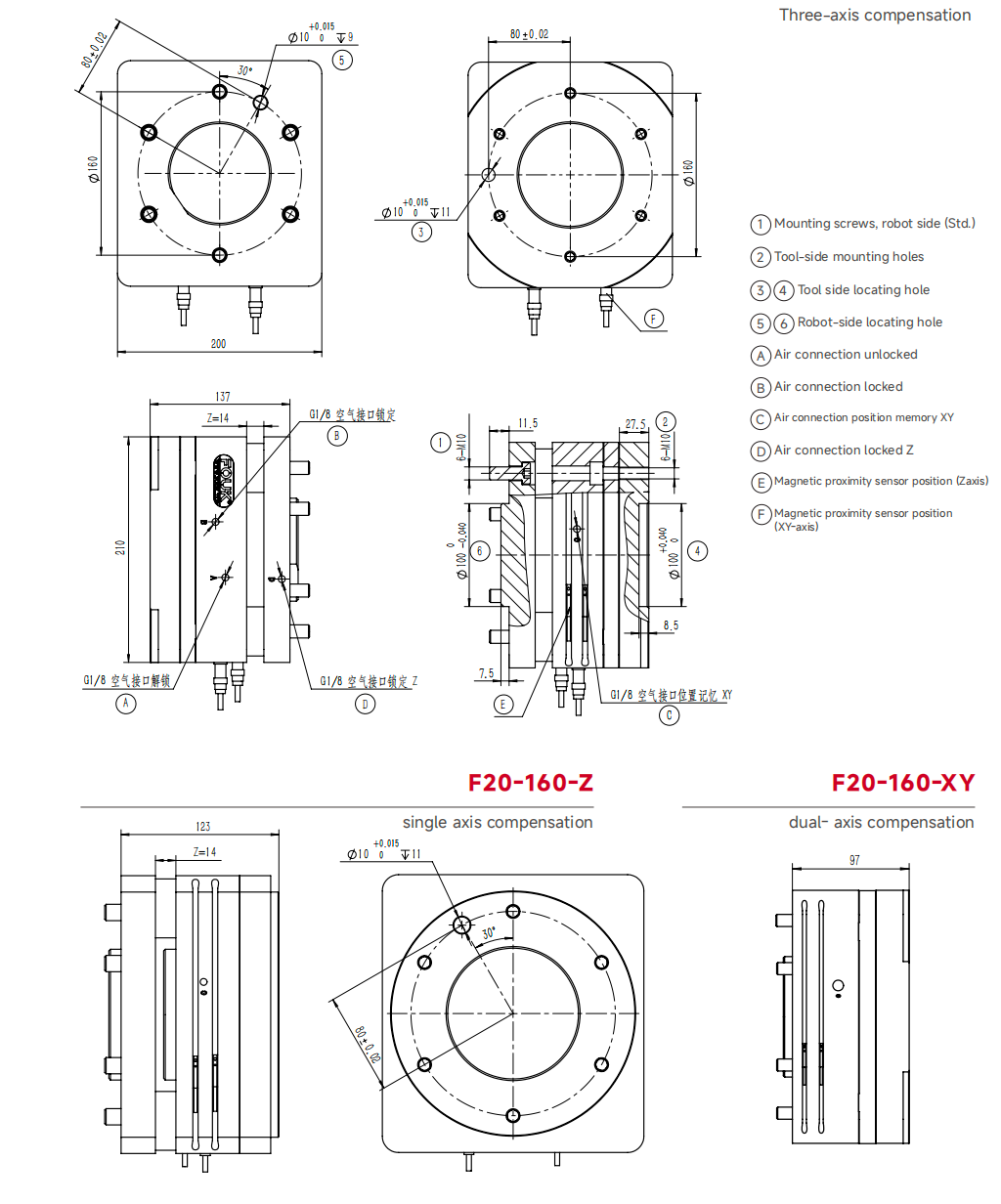

Engineering Graphics
