F14-125
Parameters and Specifications
| Specifications | F14-125-XYZ-0 | F14-125-XYZ-P | F14-125-XY-0 | F14-125-XY-P | F14-125-Z-0 | Unit |
| Weight | 7.4 | 7.4 | 5.3 | 5.3 | 5.7 | kg |
| XY compensation | ±7 | ±7 | ±7 | ±7 | mm | |
| Z compensation | 12 | 12 | 12 | mm | ||
| Recommended handling weight, vertical | 18 | 18 | 18 | 18 | 18 | kg |
| Recommended handling weight, horizontal | 11 | 11 | 11 | 11 | 11 | kg |
| Locking Force | 1100 | 1100 | 1100 | 1100 | N | |
| Position memory piston force | 1700 | 1700 | N | |||
| Max. radial force, position storage | 198 | 198 | N | |||
| Piston Force (Z-axis) | 1200 | 1200 | 1200 | N | ||
| Min. spring force | 360 | 360 | 360 | N | ||
| Ambient temperature range/°C | 5~60 | 5~60 | 5~60 | 5~60 | 5~60 | |
| Operating pressure range/bar | 3~8 | 3~8 | 3~8 | 3~8 | 3~8 | |
| Robot-side connection | ISO 9409-1-125-6-M10 | ISO 9409-1-125-6-M10 | ISO 9409-1-125-6-M10 | ISO 9409-1-125-6-M10 | ISO 9409-1-125-6-M10 | |
| Air connection specification | M5 | M5 | M5 | M5 | M5 | |
| Repeataccuracy/mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | |
| Tool-side connection | ISO 9409-1-125-6-M10 | ISO 9409-1-125-6-M10 | ISO 9409-1-125-6-M10 | ISO 9409-1-125-6-M10 | ISO 9409-1-125-6-M10 | |

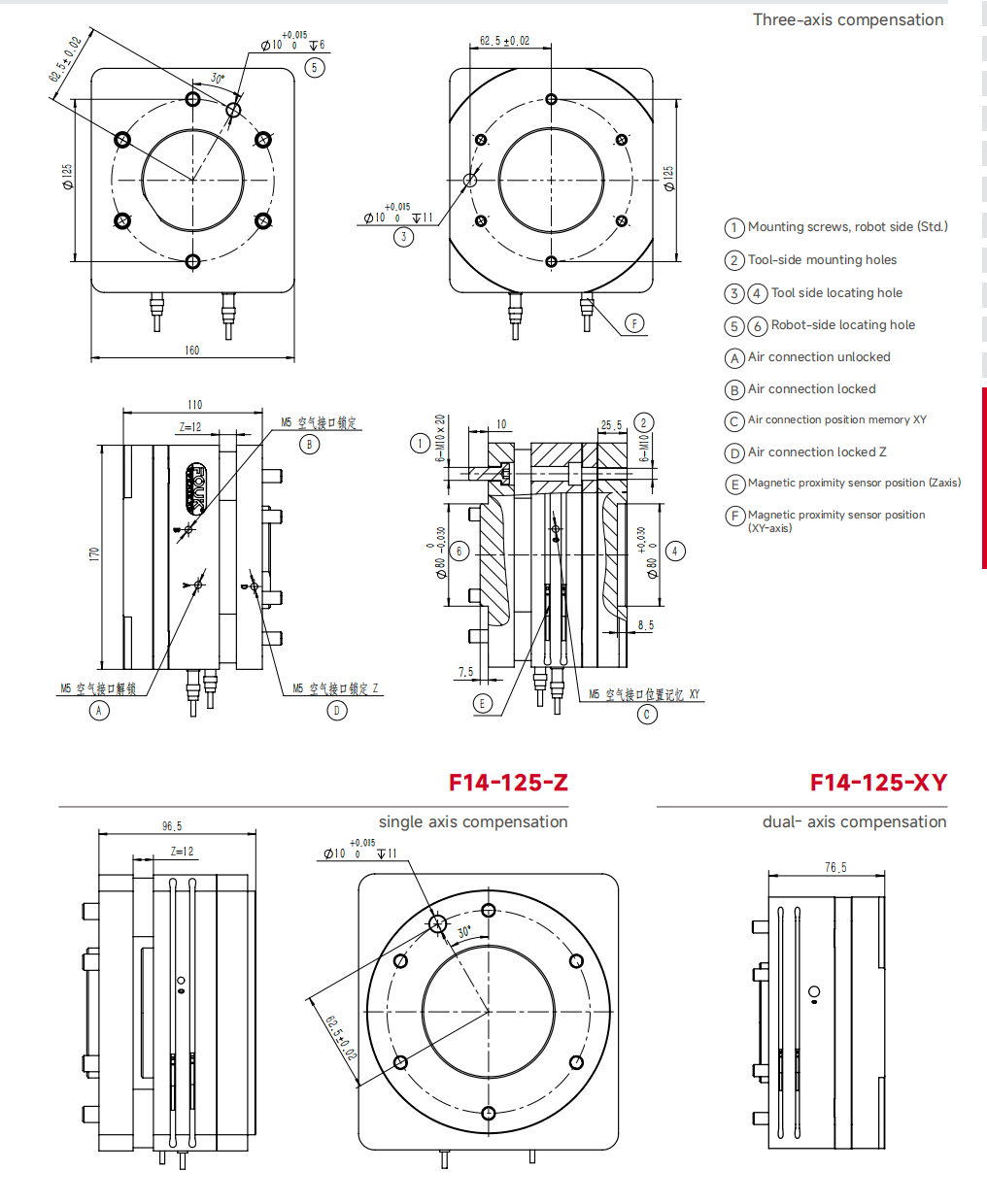

Engineering Graphics
