F24-200
Parameters and Specifications
| Specifications | F24-200-XYZ-0 | F24-200-XYZ-P | F24-200-XY-0 | F24-200-XY-P | F24-200-Z-0 | Unit |
| Weight | 29.5 | 29.5 | 21 | 21 | 22.5 | kg |
| XY compensation | ± 12 | ± 12 | ± 12 | ± 12 | mm | |
| Z compensation | 14 | 14 | 14 | mm | ||
| Recommended handling weight, vertical | 160 | 160 | 160 | 160 | 160 | kg |
| Recommended handling weight, horizontal | 100 | 100 | 100 | 100 | 100 | kg |
| Locking Force | 2700 | 2700 | 2700 | 2700 | N | |
| Position memory piston force | 4500 | 4500 | N | |||
| Max. radial force, position storage | 492 | 492 | N | |||
| Piston Force (Z-axis) | 3000 | 3000 | 3000 | N | ||
| Min. spring force | 1100 | 1100 | 1100 | N | ||
| Ambient temperature range/°C | 5~60 | 5~60 | 5~60 | 5~60 | 5~60 | |
| Operating pressure range/bar | 3~8 | 3~8 | 3~8 | 3~8 | 3~8 | |
| Robot-side connection | ISO 9409-1-200-6-M12 | ISO 9409-1-200-6-M12 | ISO 9409-1-200-6-M12 | ISO 9409-1-200-6-M12 | ISO 9409-1-200-6-M12 | |
| Air connection specification | G1/8 | G1/8 | G1/8 | G1/8 | G1/8 | |
| Repeataccuracy/mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | |
| Tool-side connection | ISO 9409-1-200-6-M12 | ISO 9409-1-200-6-M12 | ISO 9409-1-200-6-M12 | ISO 9409-1-200-6-M12 | ISO 9409-1-200-6-M12 |

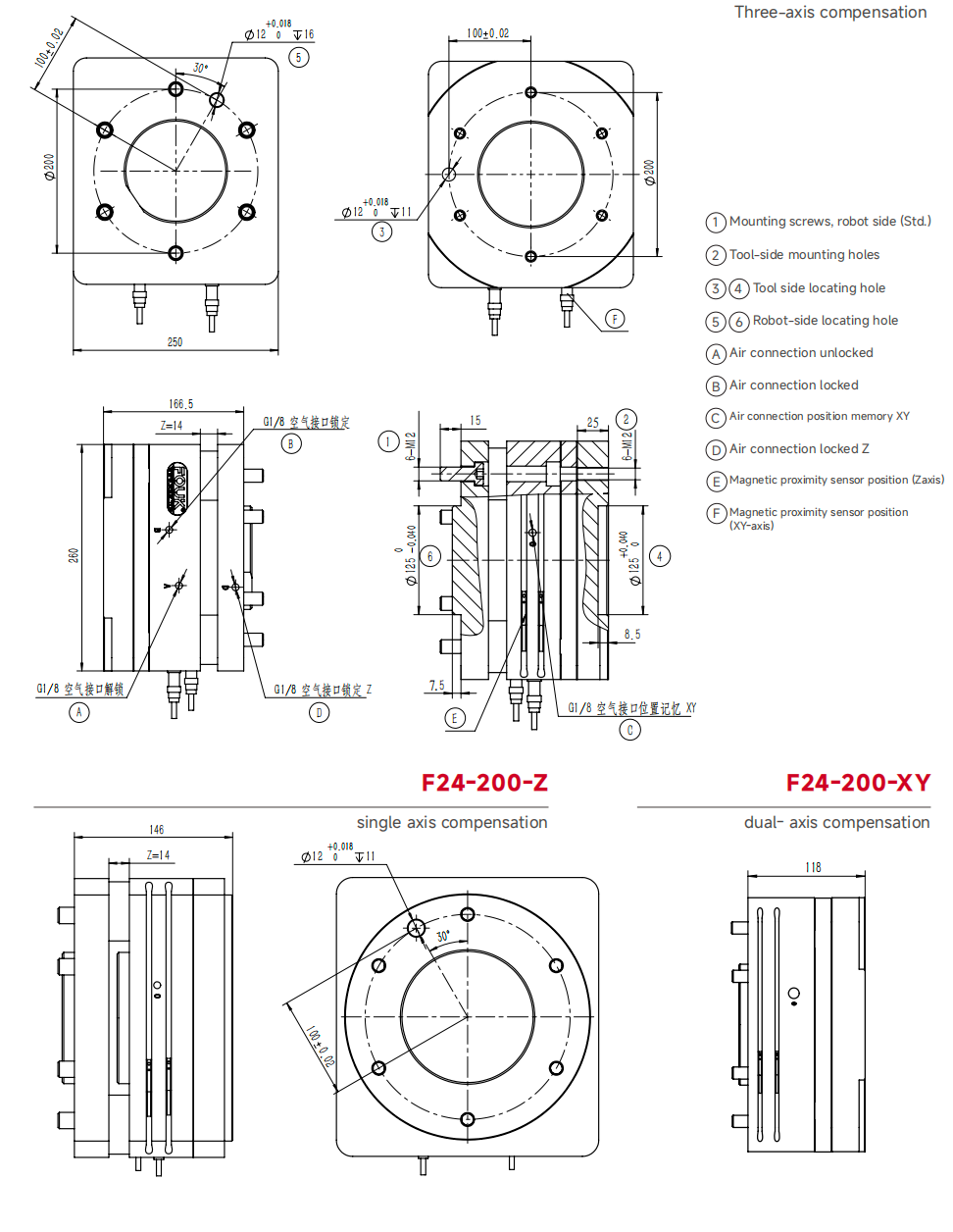

Engineering Graphics
