Truss system disc-type gripping unit
TG40-FZ70
Configuration options:
Flexible compensation units:ZG40
Three-finger jaws mounted as standard:TZ75-119-0°
Three-finger gripper claw finger cylinder flip:TZ75-119-180°
3D model

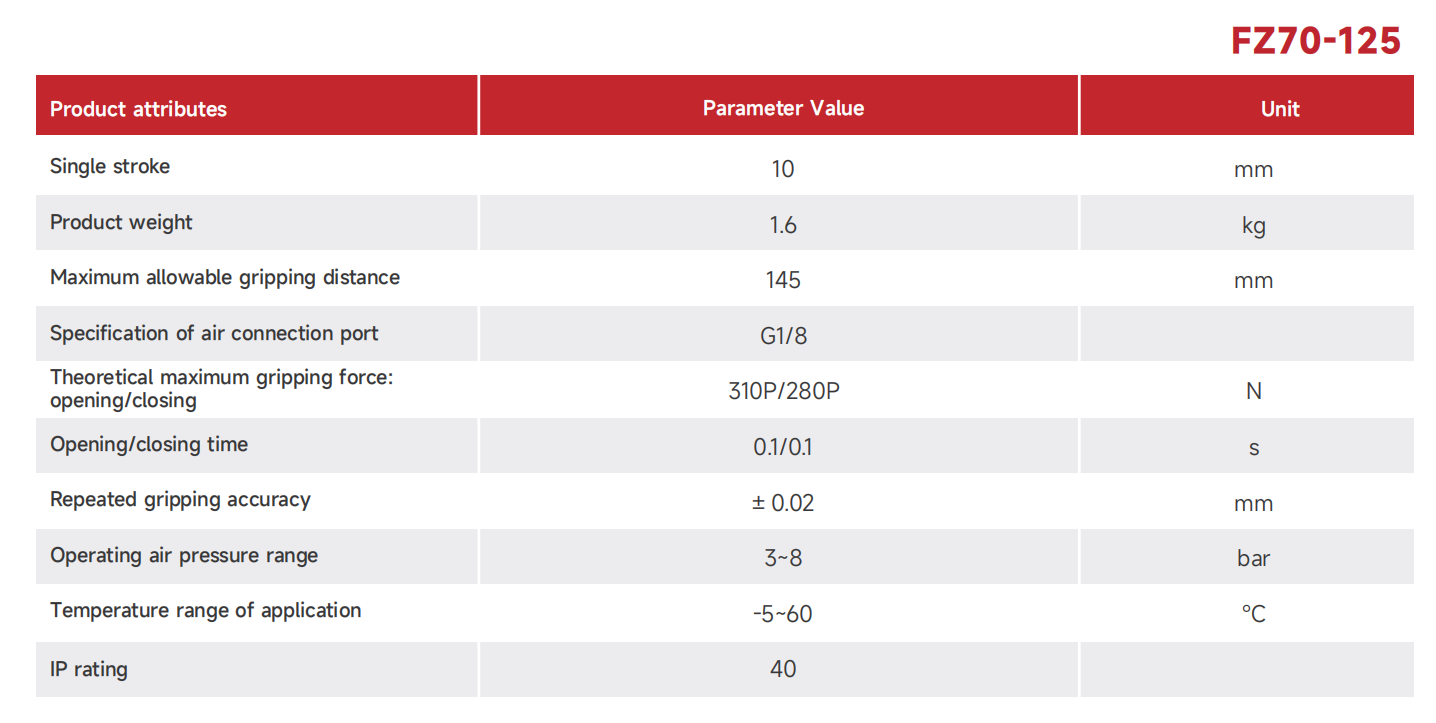

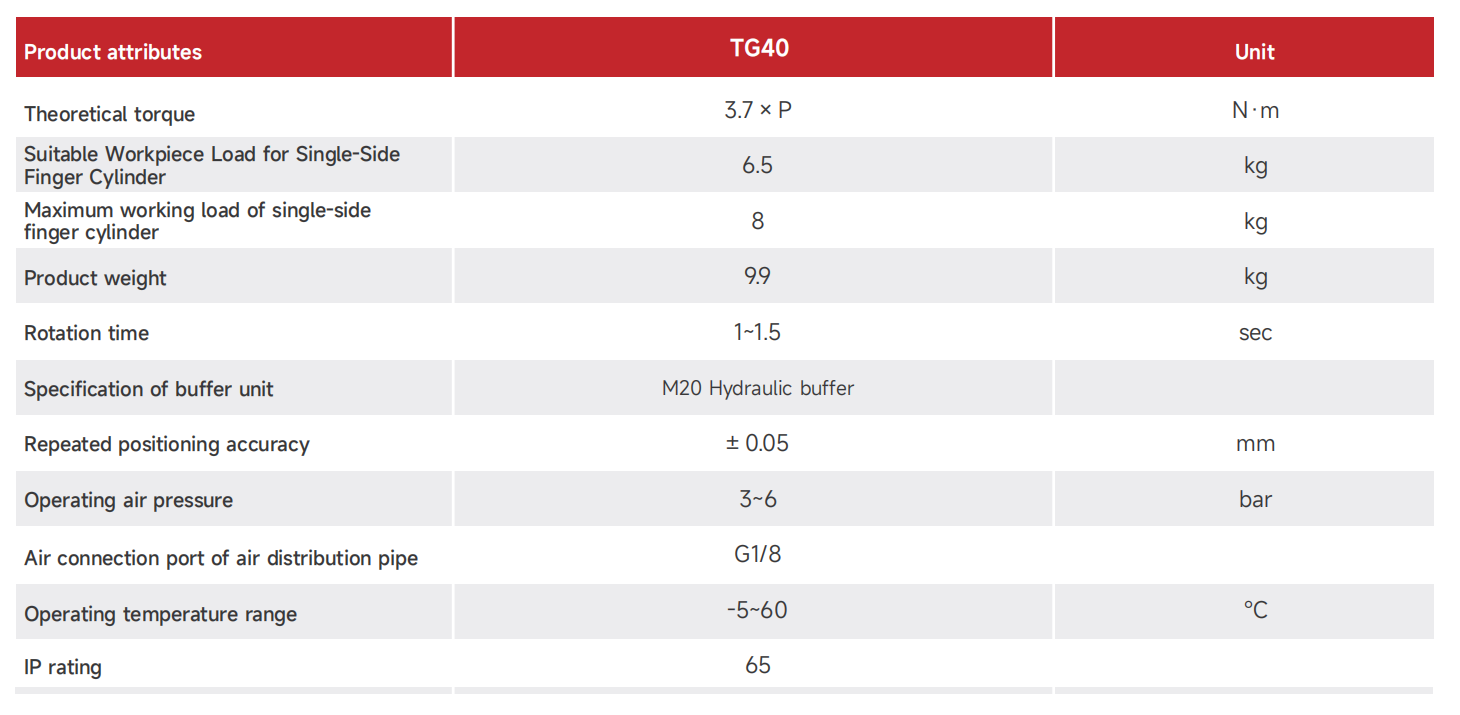

Product Parameters

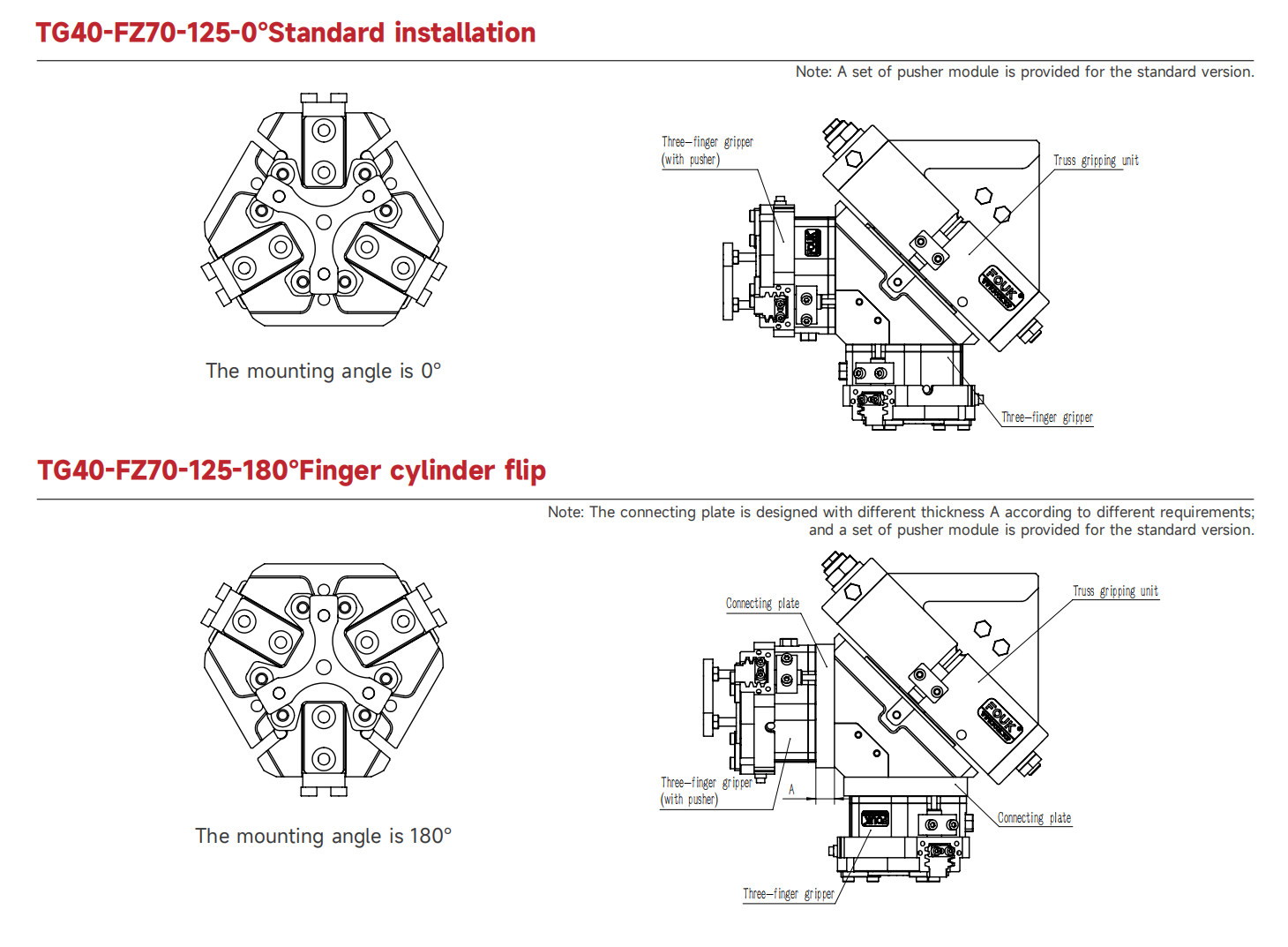

engineering graphics
