Truss system disc-type gripping unit
TG12-FZ34
Configuration options:
Flexible compensation units:ZG12
Three-finger jaws mounted as standard:TZ33-60-0°
Three-finger gripper claw finger cylinder flip:TZ33-60-180°
3D model

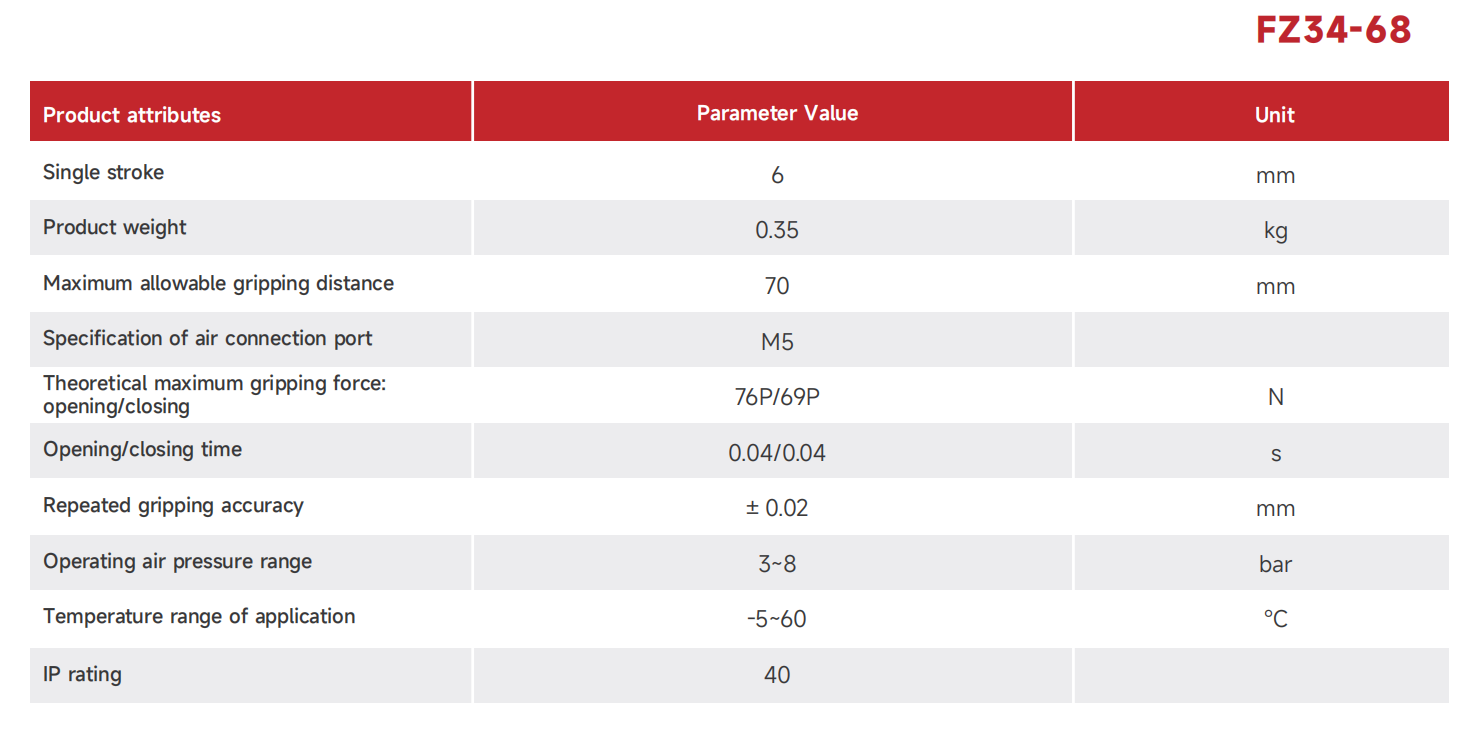

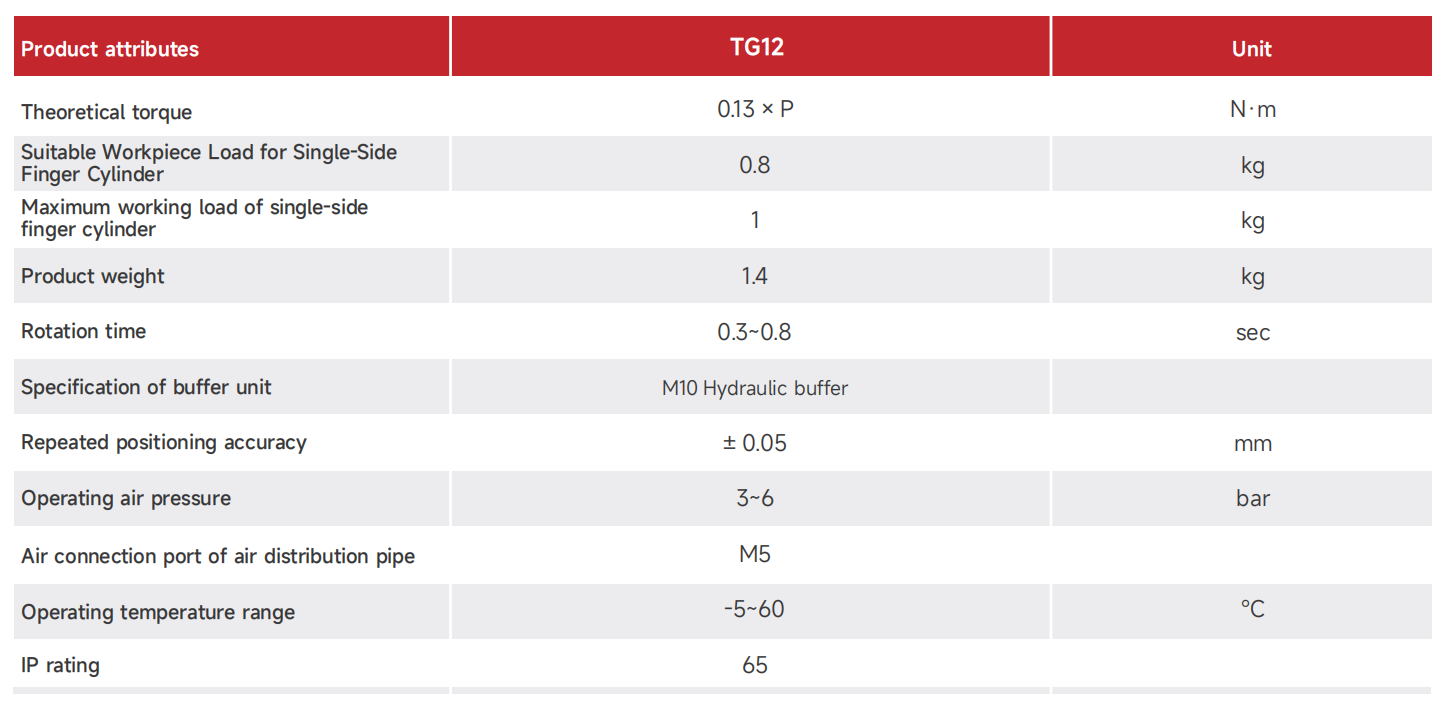

Product Parameters

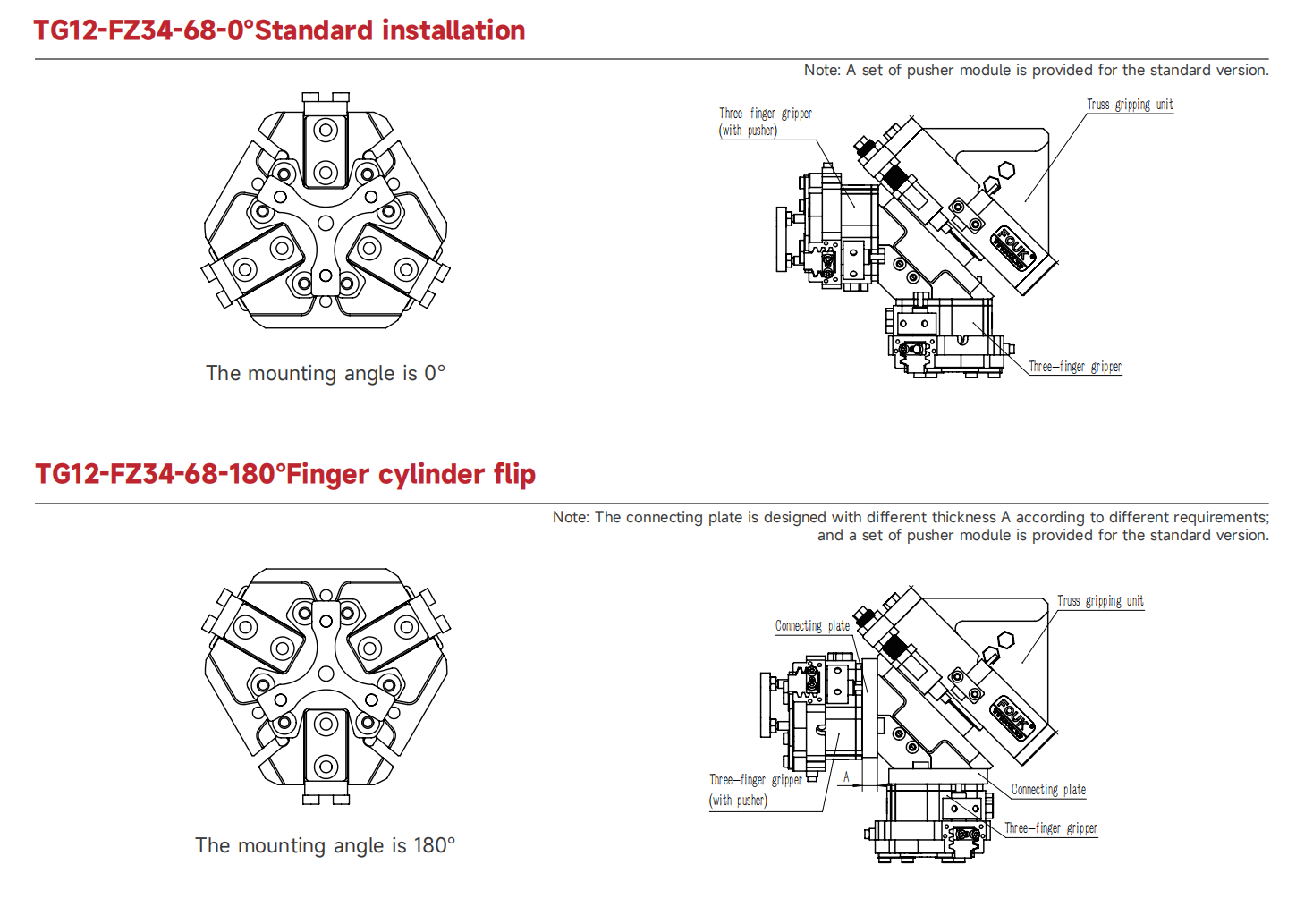

engineering graphics
