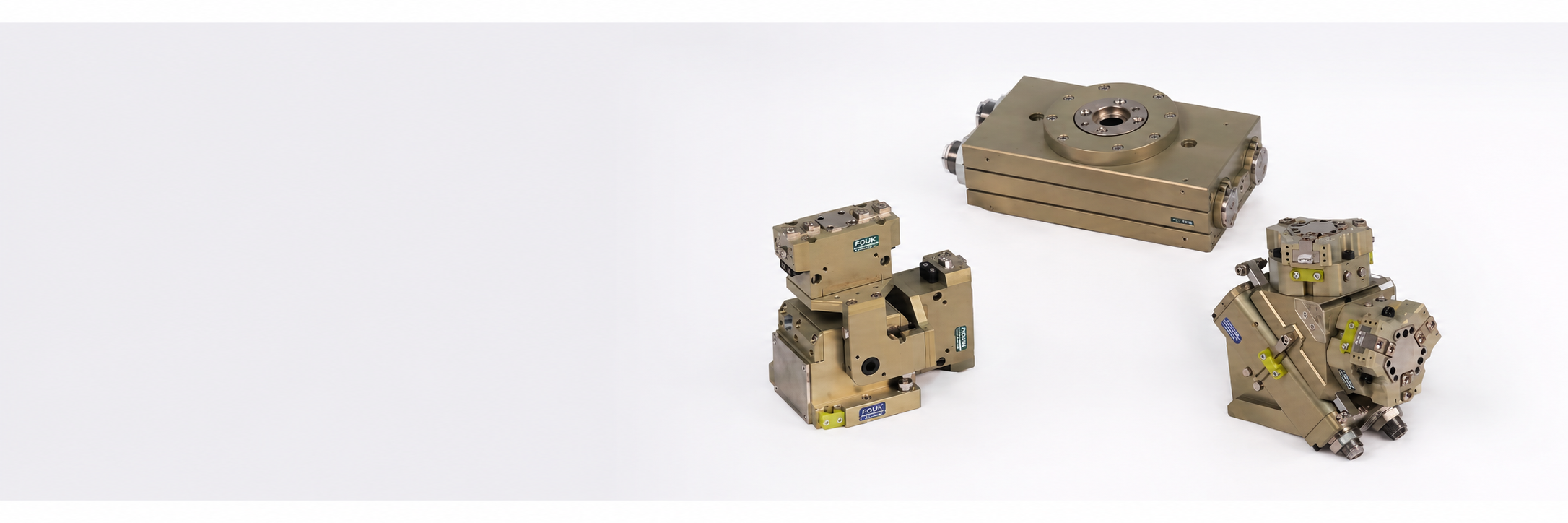

The pneumatic gear and rack structure is adopted to realize swing for 90°and Ibecomes an important module for loading and blanking of the machine tool truss in coordination with the grippers. By adjusting the structure and the configuration, it adaptsto different application scenarios.
