FOUK-FZ

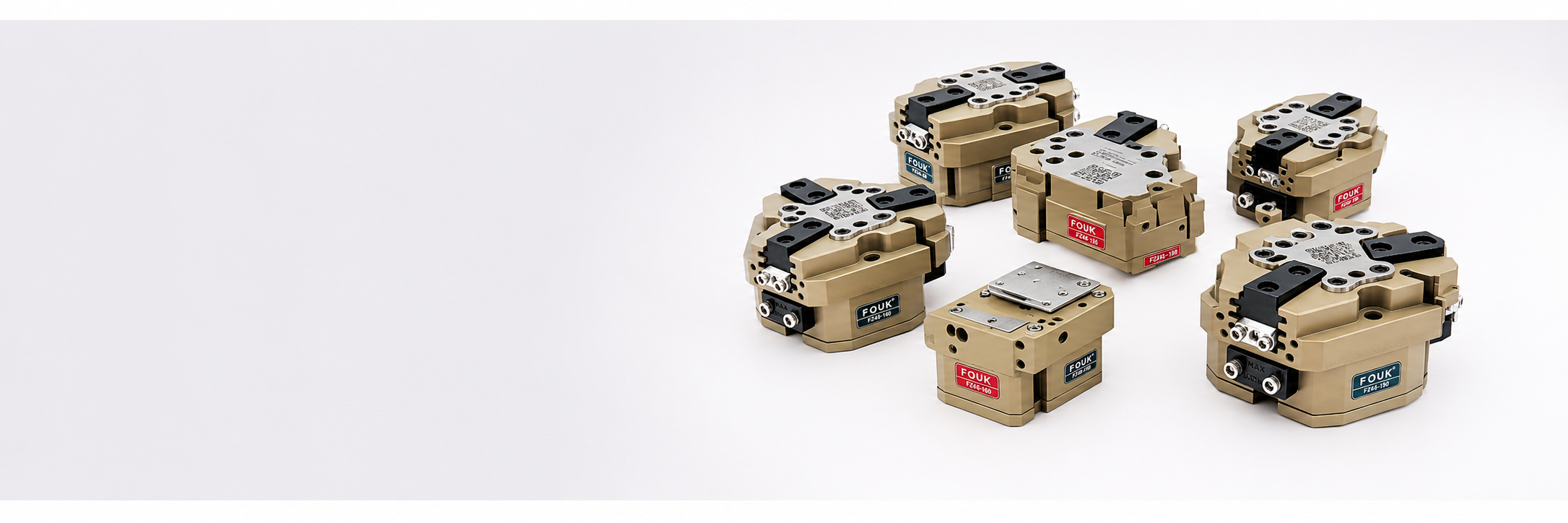

3 fingers gripper
For the standard pneumatic three-finger gripper, FOUK adopt high. strength materials and the surface treatment process of strong wear resistance, which ensures the reliability and service life of the product in use. eanwhile, it has abundant optional interfaces to adapt to the complex working conditions of various industries.
| Product Code | Single Stroke/mm | Open Gripping Force/N | Close Gripping Force /N | Workpiece Weight/kg | Weight/kg |
|---|---|---|---|---|---|
| FZ34-68 | 6 | 76P | 69P | 1.7 | 0.35 |
| FZ42-78 | 6 | 116P | 106P | 3 | 0.51 |
| FZ55-100-M | 8 | 198P | 172P | 5 | 0.87 |
| FZ55-100-S | 4 | 396P | 344P | 10 | 0.89 |
| FZ70-125-M | 10 | 310P | 280P | 9 | 1.6 |
| FZ70-125-S | 5 | 650P | 600P | 19.5 | 1.7 |
| FZ90-155-M | 13 | 515P | 490P | 15.5 | 2.7 |
| FZ90-155-S | 6 | 810P | 770P | 28 | 2.8 |
| FZ125-200-M | 16 | 1080P | 1000P | 30 | 6 |
| FZ125-200-S | 8 | 1960P | 1830P | 55 | 6 |
| FZ160-250-M | 25 | 1300P | 1250P | 39 | 10.5 |
| FZ160-250-S | 14 | 2260P | 2170P | 67 | 10.5 |
| FZ185-292-M | 30 | 1750P | 1600P | 50 | 21 |
| FZ185-292-S | 17 | 3470P | 3280P | 100 | 22 |
| FZ220-352-M | 35 | 2500P | 2400P | 80 | 34 |
| FZ220-352-S | 20 | 4400P | 4200P | 130 | 34 |
| FZ290-430-M | 45 | 4400P | 4000P | 130 | 70 |
| FZ290-430-S | 26 | 8000P | 7700P | 220 | 72 |
